ADAM Audio D3V Desktop Monitor System - Black
ADAM Audio - D3V 3.5" Desktop Monitors, 80W, USB Connectivity - Black
Email me when the availability or price changes
Desktop Monitors
ADAM Audio - D3V
(Black)
STUDIO SOUND, DESKTOP SIZEThe ADAM Audio D3V is a fully active desktop monitoring system perfect for songwriters, producers, and music enthusiasts who wish to enjoy ADAM Audio sound quality with as much convenience as possible. Available in white or black editions, the active monitors feature the iconic golden ribbon tweeter and stay true to ADAM Audio’s German industrial design heritage. Each active pair features 3.5” aluminium woofers and ferrite magnet system driven by 80 W amplifiers. The woofers are further complemented by dual-sided 3.5” passive radiators which allow the D3V to extend as low as 45 Hz.
With 25 years of experience working with ribbon tweeter technology, ADAM Audio has created a compact 1.5” D-ART (Desktop Accelerated Ribbon Tweeter) so D3V customers can enjoy the precise and unfatiguing high-frequency reproduction that their established monitoring systems are known for.
The D3V features a USB-C input which allows the monitoring system to work as a digital output device when connected to a computer and negates the need for an additional audio interface for playback. This plug’n’play functionality extends to mobile devices so high-quality audio can be enjoyed without the compression or conversion normally associated with such connections. The D3V also features balanced ¼" TRS inputs for more traditional analogue audio applications.
On the backplate of the left speaker you'll find a range of user-friendly switches to address the common acoustical issues arising from speaker placement, while the front panel includes a headphone socket and volume knob that doubles as a control for the audio input selection, muting and other functions.
The D3V comes complete with detachable monitor stands that are angled at 15° toward the users’ ears. There is also a standard threaded 3/8” hole for microphone stand mounting on the underside of both monitors.
80 WPower
48 Hz - 22.6 kHzFrequency Response
3.5"Speaker Size
What’s In The Box?
• 1x D3V right monitor
• 1x D3V left monitor
• 2x D3V angled stands
• 6x D3V desktop pads
• 1x 2m loudspeaker link cable
• 1x D3V PSU and mains power cable
• 1x 1m USB-C to USB-C cable
• 1x USB-C to USB-A adapter
• Quick start guide and safety and warning sheet
Fully Active Aluminium 3.5” Woofers
uncoloured soundOptimised using ADAM Audio’s state-of-the-art Klippel measurement system, the incredibly symmetrical voice coil and ferrite magnet system help minimize unwanted distortions and provide a linear motor for the woofer. Each one-piece concave cone is made of ridged, thick aluminium with a long linear excursion range which delivers uncoloured sound even at surprisingly high output levels.
The D3V is a fully active design with four individual amplifier channels and DSP-managed crossover. The woofers are powered by 80W amplifiers with the link cable carrying an amplified signal to the right speaker.
Years of Expertise
D-ART TweeterA quarter century of ribbon tweeter research and development has resulted in the creation of ADAM Audio’s highly capable 1.5” Desktop Accelerated Ribbon Tweeter. Each diaphragm is hand folded and glued with 40W amplifiers driving each unit. Like the rest of ADAM Audio’s tweeters, the D-ART incorporates crossover fine-tuning which is managed by highly accurate DSP.

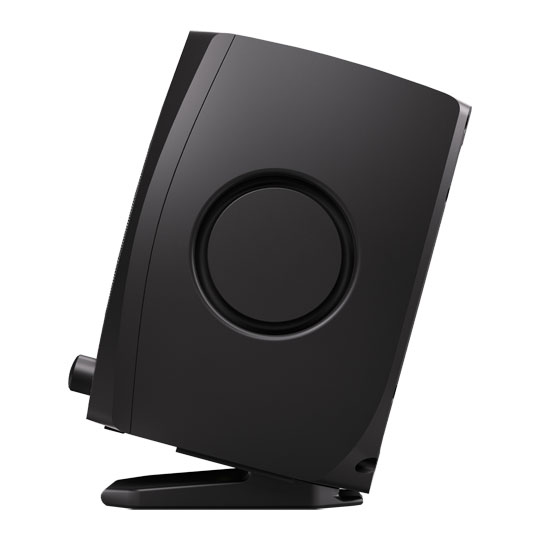

Passive RadiatorsThe D3V uses dual-sided passive radiators on each speaker for a total of four per system. Each radiator consists of a stainless-steel plate as the moving mass, and a specially stabilised long-stroke rubber surround for the suspension. Together they reinforce the lowest possible response of the loudspeaker through their interaction with the main woofers, along with contributing toward the overall SPL of the system.
Direct USB-C InputThe D3V represents ADAM Audio’s most convenient monitoring system thanks to the inclusion of a plug’n’play USB-C input. The loudspeakers function as a digital output device when connected to a computer, mobile, or tablet, which negates the need for an additional audio interface. This direct digital connection facilitates high-quality audio playback without the compression or conversion normally associated with desktop monitors.

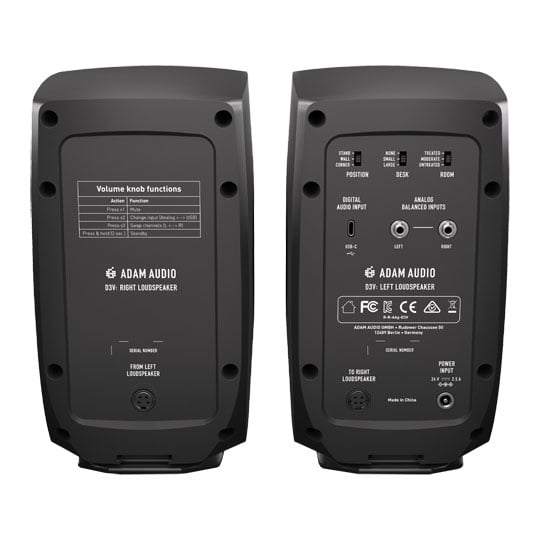

DSP Room AcousticsOn the backplate of the left speaker you can find three switches to counteract the typical acoustical issues that arise from speaker placement. “POSITION” refers to the fixed position of the loudspeaker in the room. “DESK” refers to the size of the desk in front of the loudspeaker, while “ROOM” refers to the amount of acoustic treatment in the space in which the system is being used.
Functionality & Convenience
Balanced
Analogue InputsAlong with the USB-C input, the D3V features analogue inputs for traditional audio applications. It allows for balanced connections to audio interfaces as well as direct connections to all kinds of hardware including synthesizers, drum machines, samplers, and DJ mixers. The USB-C or balanced analogue inputs can be toggled by pressing the volume knob on the left speaker.
Headphone Output
& Mounting OptionsFunctionality and convenience played a big role in the design of the D3V. The front-facing headphone output automatically takes over audio playback when connected, while detachable monitor stands angled at 15° are also included. Additionally, there is a standard threaded 3/8” hole for microphone stand mounting on the underside of both monitors.
Injection-Moulded
CabinetThe D3V’s cabinet is made of high-grade injection moulded ABS Polycarbonate, with thick walls and plenty of bracing to eliminate vibrations and unwanted resonances. The rounded shape reduces unwanted sound diffraction at high frequencies, while also paying tribute to ADAM Audio’s long-standing industrial design heritage.
The Tech Spec
| Features | Specification | Frequency Response @ -3 dB | 48 - 22.6k Hz |
|---|---|
| Frequency Response @ -6 dB | 45 - 23.2k Hz |
| Max SPL in full space at 1 m with sine bursts (average 100 - 6k Hz) at 3% THD (rms / peak) | 92 / 96 dB SPL |
| Crossover Frequency | 4.0 kHz |
| Passive Radiator Basket Diameter | 2 x 3.5" |
| Woofer Cone Material | Single-piece aluminium |
| Woofer Basket Diameter | 3.5" |
| Woofer Voice Coil Diameter | 1" (25 mm) |
| Woofer Grille | Painted steel |
| Tweeter Type | D-ART |
| Tweeter Velocity Transform Ratio | 4 to 1 |
| Analogue Connectors | 2 x Balanced 6.3 mm jack |
| Max. Input Level | +9 dBu |
| Digital Connector | USB Type C |
| Digital Audio Signal | Class-compliant USB 1.1 |
| Sample Rates Supported | 32, 44.1, 48 kHz |
| Bit Depth | 24-bit |
| Headphone Output Connector | 3.5 mm TRS mini-jack |
| Headphone Output Impedance | 32 Ohms |
| AD Converter | 24-bit |
| Internal Sample Rate | 48 kHz |
| Internal Processing Bit Depth | 28 bit |
| Latency | 4.0 ms |
| Protection | Independent peak and thermo limiters for each driver, and amplifier thermo limiters |
| Woofer Amplifier: Type | PWM |
| Woofer Amplifier: Peak (10% THD, limiter deactivated) | 2 x 80 W |
| Woofer Amplifier: RMS (1% THD, limiter deactivated) | 2 x 70 W |
| Tweeter Amplifier: Type | PWM |
| Woofer Amplifier: Peak (10% THD, limiter deactivated) | 2 x 40 W |
| Tweeter Amplifier: RMS (1% THD, limiter deactivated) | 2 x 30 W |
| Input Sensitivity | 0 dBu = 88 dB SPL at 1 m @ 0 dB level setting |
| Level | The volume knob controls loudspeaker and headphone outputs over the range -∞ dB to +6 dB |
| Volume Knob Press Functions | Mute, standby, input select, channel swap |
| Input Selection | Analogue, USB-C |
| Channel Order | 2 x 1/4" (GA-FC, Exp pedal) |
| Backplate Room Adaption - Position (Bass) | 0, -3, -6 dB |
| Backplate Room Adaption - Desk (Low-mid and Mid) | 0, -3, -6 dB and 0, -2, -4 dB |
| Backplate Room Adaption - Room Acoustics (Treble) | 0, -1.5, -3 dB |
| Connector | USB-C |
| Connection Type | Class-compliant USB 1.1 |
| Display | Front panel multi-colour logo |
| Cabinet Design | Dual passive radiator |
| Cabinet Material | Painted ABS Polycarbonate |
| Mounting Options | Flat on desk or loudspeaker stand, angled 15 degrees upwards on desk using supplied foot, threaded insert (3/8") on the bottom of the cabinet for microphone stand |
| AC Input Voltage | 100 - 240V, 50/60 Hz |
| Power Rating | 60 W max. |
| Dimensions | Width: 115 mm, 4 1/2" Height: 200 mm, 7 7/8" Depth (length): 150 mm, 5 7/8" |
| Weight (left speaker) | 1.85 kg 4 lbs 1 oz |
| Weight (right speaker) | 1.73 kg 3 lbs 13 oz |
