ADAM Audio - A77H Pair + AH Isolation Pads + Leads +Sonarworks Mic

SCAN PRO AUDIO PRESENTS...Scan Pro Audio is proud to present this limited time offer professional monitoring package. Comprised of components to deliver the ultimate studio monitoring experience, with this bundle you can elevate your monitoring to the next level. Included is a pair of ADAM Audio’s newly released A77H studio monitors, Sonarworks Calibrated Measurement Microphone, a pair of Adam Hall's PAD ECO Monitor Isolation Pads and a pair of Stagg's 3m XLR (m) Cable - Stereo Jack (m) to ensure you can get connected and hit the ground running right away!

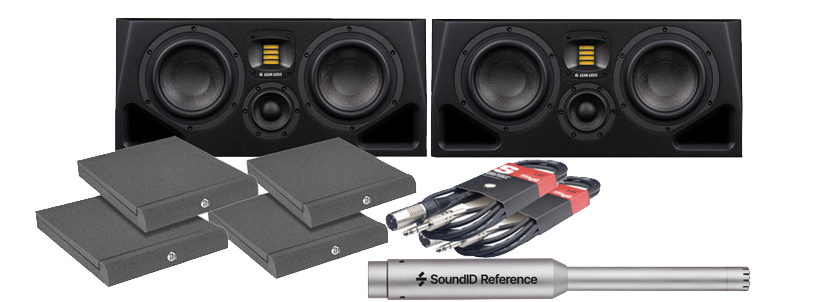

what's included? • ADAM Audio - A77H (Pair)
• Adam Hall PAD ECO Monitor Isolation Pads (2xPair)
• Stagg - 3m XLR (m) cable - Stereo Jack (m) (Pair)
• Sonarworks - Calibrated Measurement Microphone

'Nothing Compares'An advanced successor to the A77X, the A Series A77H is a true three-way midfield monitor that capitalizes on the latest ADAM Audio technologies to deliver a rich, spacious, and enveloping sound. Incorporating two 7-inch woofers, a midrange driver, and ADAM Audio’s X-ART tweeter, the A77H delivers an ultra-wide frequency range.

The addition of the midrange driver helps produce clear sound in the most sensitive range of human hearing. Rotatable HPS waveguide technology and onboard DSP allow you to tune the sound for your precise requirements.

what's included? • 1 x Loudspeaker
• 1 x Power cable
• 1 x Quick start guide

Rotatable HPS Waveguide & X-ART TweeterADAM Audio HPS (high-frequency propagation system) waveguide technology enables tweeters to disperse sound with controlled consistency, broad in the horizontal axis but tightly focused in the vertical plane. The A Series introduces a rotatable HPS waveguide design. You can shift A Series tweeters in 90-degree steps to continue to benefit from HPS waveguide technology whether you position the speakers horizontally or vertically.

    The A Series HPS Waveguide is made from a new glass fibre polymer compound that helps create a clear sound, free of unwanted resonance. The ADAM Audio X-ART tweeter is at the heart of the rotatable HPS waveguide. Handmade in Germany, the X-ART tweeter provides a precise transient response and reproduces the finest sonic details. This X-ART tweeter is used in every A Series speaker, providing a detailed, consistent sound across the product line.

Multi-Layer Mineral Woofer A Series woofers are constructed with a unique blend of mineral stone fibres that have been baked together to create a lightweight but highly stable material. The mineral composition, layering and geometry of each cone is specific to the driver used in each model. By combining this material with a new magnet system, A Series woofers produce high output with low distortion, delivering a clean low-end.

Midrange DriverAdapted from the groundbreaking ADAM Audio DCH™ midrange driver used by the S Series speakers, the A Series midrange driver delivers a clean sound in a critical part of the frequency range where humans are especially sensitive to colouration of sound. Using a dedicated driver for the midrange further helps clarify lows and highs by eliminating the need for woofers to reproduce midrange frequencies and thus reducing distortion.

Hybrid Amplification The A Series combines the best of both digital and analogue worlds. The woofers are driven by Class D amplifiers that help produce linear performance while reducing distortion. These amplifiers were chosen specifically for their power and efficiency, in terms of both energy consumption and sound reproduction. Low thermal dissipation allows for a smaller heat sink, which facilitated additional investment in the exceptional power and performance of the A Series.

Tweeters and midrange drivers are powered by Class AB amplifiers which offer a smooth, natural reproduction of high frequencies. Each amplifier is optimized for its working range, resulting in a fine-tuned, properly aligned speaker. To reach this point, ADAM Audio carried out extensive measurements and listening sessions, trialling countless amplifiers and amplifier components.

DSP-Based Electronics The A Series capitalizes on the transformative power of DSP-based electronics to provide greater tuning precision and better predictability than analogue-only speakers. With firmware that can be updated through an Ethernet connection, over time you can expect to integrate the latest DSP-based capabilities from ADAM Audio—including new filter types and features, plus alternative voicings. 

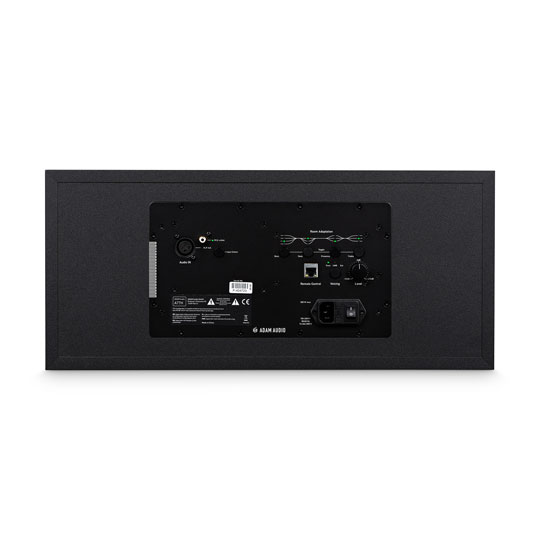

Room AdaptationOn the back panel of A Series speakers, you will find four bands of room adaptation equalization: Bass, Desk, Presence and Treble. Each band is adjustable in predefined steps, offering more than 100 tuning options to help compensate for the typical acoustic problems that arise from speaker placement.  

“UNR” or “Uniform Natural Response” A “Voicing” is a pre-defined sound profile of the A Series monitors. On the back panel, you will find two different selections, “UNR” and “Pure”. Here you will also find the “Ext” option which is dedicated to the extended functionality that comes with A Control via the Ethernet connection.

“UNR” or “Uniform Natural Response™” is a dynamic, natural-sounding response curve of ADAM Audio’s own design, which stems from a variety of iconic ADAM Audio legacy products, including the preceding AX Series. It lends itself to production, composition and song writing as its engaging and present sound can give you more room for creativity and flow. It is also a great option whenever you want to use your speakers simply to enjoy some good music.

“Pure” is a highly accurate and neutral sounding option. This is the “flat” setting, ideal for mixing and mastering, where you really must be aware of all the details and rely on an honest representation from your speakers.

The “Ext” option is dedicated to the extended functionality that comes with A Control via the Ethernet connection. Using A Control’s six-band EQ, a custom voicing and be created and pushed to the monitor.

A Control (Real-Time Remote Control) The DSP-based functionality of all A Series monitors can be controlled remotely and in real time over Ethernet using the free to download A Control software. A Control is available to download for Windows and MacOS in the MyADAM area of www.adam-audio.com for customers who have registered their A Series monitors. 

Once downloaded and installed, you can control multiple speakers at once, precisely adjusting equalisation and delay settings from various listening positions in your studio space. While you work, you can remotely control monitor levels if you’re far from a fader or physical interface. Remote-control capabilities are particularly useful in multi-purpose rooms allowing you to make sure that voicing, EQ, and other settings are all exactly how you want them.

Room Correction & Sonarworks Integration A Series speakers are designed to be adaptable to changing requirements, preferences, and environments. Using the A Control software, you can push advanced filters directly to an embedded platform onboard the monitors to help compensate for imperfect room acoustics. This embedded platform supports filters from industry leading third-party Sonarworks. Using Sonarworks software and a measurement mic, you can calibrate your speakers for a new room or shifting taste.

Bass Reflex System, Cabinets and Mounting The new A Series cabinets build on the heritage of ADAM Audio and the AX Series in particular. In an evolutionary design, A Series cabinets have deeper bevelling to further reduce diffraction. In addition, thicker baffle walls strengthen the cabinets and reduce internal vibrations, while a flared-port design optimizes airflow and reduces port noise. All A Series speakers include an underside mounting interface, giving you the flexibility to mount them wherever you need them.

Sound-ID Reference Measurement Microphone
with individual calibration profileDesigned for seamless integrated use with Sonarworks SoundID software, the SoundID Reference measurement microphone is a pre-polarised electret-condenser armed with an omnidirectional polar pattern and 106 dB of dynamic range.

Sonarworks SoundID Reference Microphone is tailor made for use in the speaker calibration setup process of Sonarworks' SoundID Reference Studio software package and ensures that any speakers can be fully calibrated in 20 minutes flat.

Once complete, the calibration process imposes a flat frequency response target across all audible bands making any user's mix fully translatable between different studio monitors and even different listening devices.

at a glance • Omnidirectional polar pattern
• Pre-polarised electret-condenser capsule
• Speaker calibration requires SoundID Reference software

what's included? • 1x SoundID Reference Measurement Microphone with XLR connection
• Microphone calibration file for 30° off-axis measurements in .swmic format (Sonarworks software native format) to be used with SoundID Reference
• Microphone calibration file for 0° on-axis measurements in .txt format for third-party use
• 21-day trial of SoundID Reference available online

ISOLATION PAD FOR STUDIO MONITORS 170 X 300 MMThe ‘Pad Eco 1’ monitor isolation pads from Adam Hall have been designed to isolate your studio monitors acoustically, which reduces disturbing resonance from the surface upon which they’re placed. This significantly improves your monitors response, which of course means a greater platform from which to mix/master.

The Pad Eco 1 features a two-component design which allows for 3 possible combinations – a horizontal placement and 2 further angles. The Eco 1 will work perfectly fine sitting on top of a desktop, or equally well on monitor stands.
