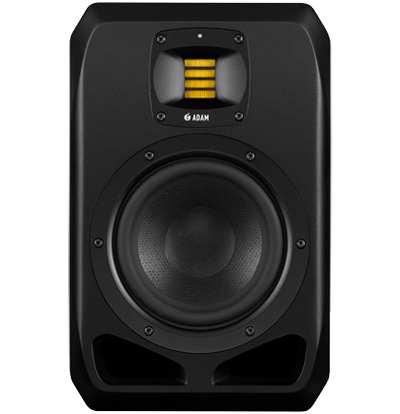

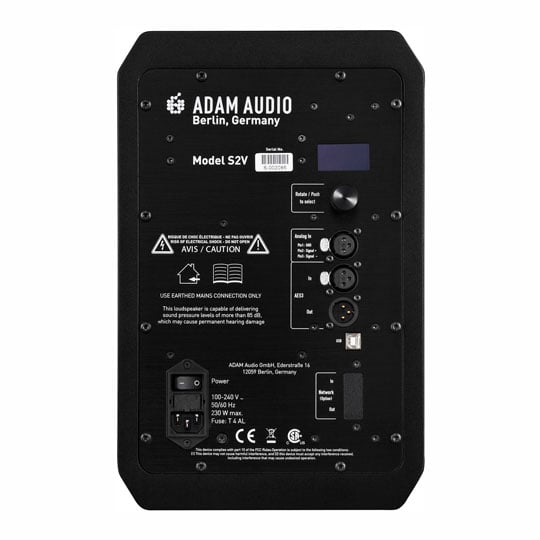

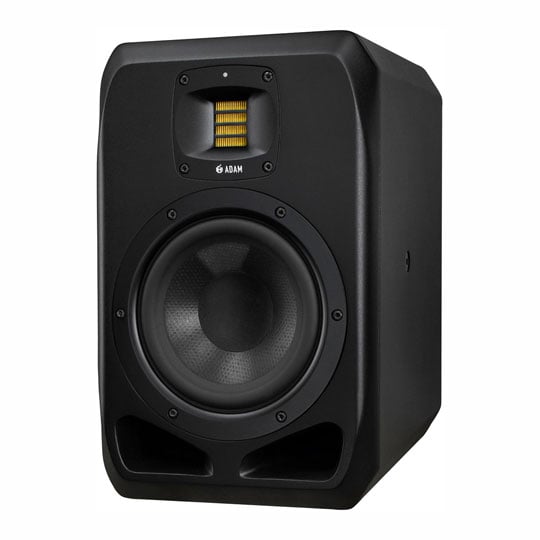

ADAM Audio - S2V Nearfield Monitor (Single)
ADAM Audio - S2V 2-way Nearfield Studio Monitor, 35 Hz - 50 kHz, 7" Hexacone Woofer, S-ART Tweeter, HPS Waveguide
7" Powered Studio Monitor
ADAM Audio - 'S2V'
Active Vertical 2-way Nearfield MonitorADAM Audio’s S2V is a powerful active 2-way studio monitor designed for nearfield use. Belying of its small footprint, the S2V has all the power and accuracy which professional engineers require from a reference-grade studio monitor, replicating high-resolution, full-bandwidth audio with unbelievable clarity.
Designed and engineered in Berlin, ADAM’s 3rd generation of S series monitors sport revolutionary technology, such as the new Extended Linear Excursion (ELE) woofer and S-ART tweeter. Featuring a super-flat 35Hz-50kHz frequency range, ultra-wide and steady stereo imaging, impressive PWM ICE bi-amplification and staggeringly low distortion, ADAM Audio’s S2V delivers a world-beating monitoring experience which you can rely upon.
7"LF Driver
35Hz-50kHzFrequency Response
≥120dBMax Peak SPL
Amazing Features
• 7“ Woofer (Hexacone)
• Cumulated Amp. Power RMS: 350 W
• Frequency Response: 35 Hz - 50 kHz
• Max. SPL Per Pair at 1 m: ≥120 dB
• AES3 Digital Inputs And Various Expansion Options
• German Handmade Precision S-ART Tweeter with HPS Waveguide

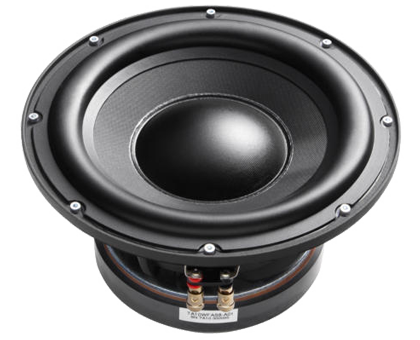

7" ELE Low-Frequency Driver
the pro choice for nearfield monitoringThe drivers used in ADAM Audio’s S range are the direct result of years upon years of in-depth research and development and take full advantage of the very latest advances in technology. Specifically designed for the S series, ADAM’s Extended Linear Excursion (ELE) bass drivers utilise the Symmetrical Magnet Assembly (SMA) to showcase optimised low-frequency reproduction with boosted dynamic range and free from unwanted colouration.
The ELE driver showcases a rigid, whilst low-mass honeycomb driver cone, a super-efficient, self-cooling linear magnet assembly, linear suspension and damping systems with a low-loss speaker surround, a vented symmetrical voice coil, and an optimised driver chassis/basket design. The S2V’s 7” woofer furthers response down to a lowly 35Hz, placing the S2V as a great choice for nearfield monitoring applications in control rooms and mastering suites without the requirement for a sub.
'S-ART' Tweeter
hand-made in berlinRather than producing sound using a piston-type diaphragm like regular loudspeakers, ADAM Audio’s S-ART folded-ribbon tweeter utilises a pleated diaphragm capable of shifting air 4x faster than the folds themselves are being moved. Hand made to the strictest tolerances, the S-ART tweeter brings impressive highs up to 50kHz and adds to the sound field with spectacular details, authentically conveying each nuance of your source.
Due to it’s handcraftsmanship and stringent testing process, the S-ART driver is a rare occurrence in todays automated mass production realm.

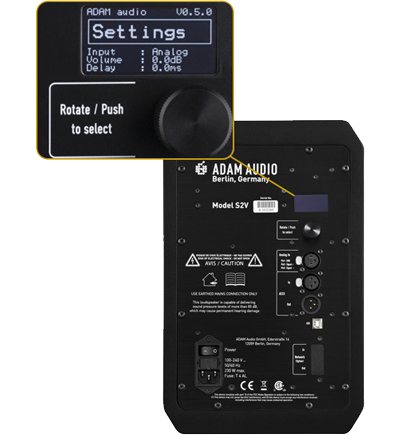

Custom DSP Engine
extremely linear responseUsing the very latest SHARC processing technology, the S series’ custom DSP optimises the speaker’s loudspeaker crossovers to offer linear response across the entire frequency range and offers user sound-tailoring EQ alongside room tuning and voicing functionality.
The DSP also takes care of limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs and enables different expansion options. Software updates are available and can be undertaken simply through the USB port.
Authoritative ICE PowerProfessional monitors like ADAM Audio’s S2V require serious power, and the S2V features a powerful 350-watt PWM ICE Power bi-amplification system. A 300W Class D amplifier powers the S2V’s bass unit, whilst a further 50w Class D amplifier takes dedicated care of the S-ART treble driver.
ADAM Audio Chats with Matt Parmenter on his S2V Monitors
Utilising a mix of classic and modern technology, Matt Parmenter of The Ice Cream Factory Studio upgraded to the ADAM S2V monitors and found they have a much tighter midrange and lower-mid.
The Tech Spec
| Features | Specification | Powered | Yes |
|---|---|
| Power Configuration | Bi-amped |
| LF Driver Size | 7" woofer |
| LF Driver Type | Hexacone |
| HF Driver Size | 2.2" S-ART tweeter |
| LF Driver Power Amp | User Manual, Warranty Card |
| Frequency Response | 35Hz-50kHz |
| Crossover Frequency | 3000Hz |
| Maximum Peak SPL | ≥120dB SPL @ 1m |
| Input Types | 1 x XLR, 1 x XLR (AES/EBU) |
| Output Types | 1 x XLR (AES/EBU) |
| USB | 1 x Type B |
| Enclosure Type | Ported |
| Height | 14" |
| Width | 8.7" |
| Depth | 13" |
| Weight | 24.2 lbs. |
| Warranty | 5 years (2 years warranty plus 3 years optional with product registration) |
