3-Way Powered Midfield Studio Monitor
ADAM Audio - S3V

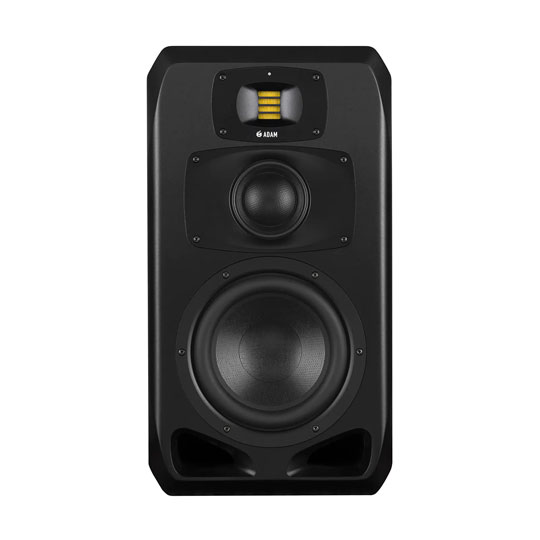

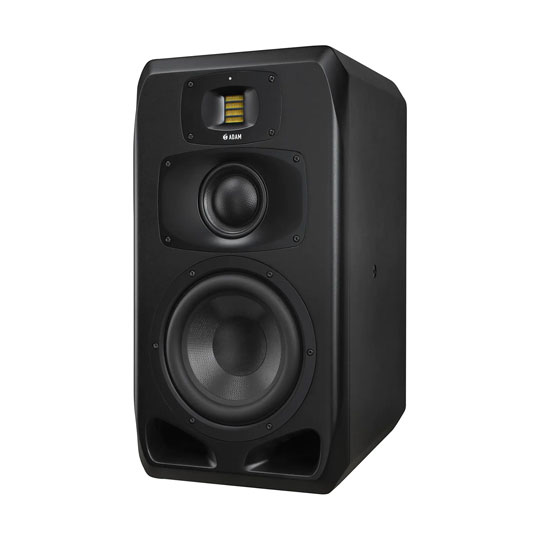

featuring custom-designed DSPADAM Audio’s impressive S3V is a three-way studio monitor optimized for vertical use and designed primarily for midfield applications, although it may also be used in more compact listening environments.
Bass frequencies from 32 Hz to 250 Hz are handled by ADAM Audio’s entirely new 9-inch Extended Linear Excursion (ELE) LF driver, which incorporates the company’s equally groundbreaking Symmetrical Magnet Assembly (SMA) and delivers a powerful, extremely accurate low end extending right down into the sub-bass region. Mid-range and HF information is reproduced with equally analytical precision thanks to the combination of ADAM Audio’s newly developed 4-inch DCH mid-range driver and the highly refined S-ART folded-ribbon HF driver. Together with the brand-new HPS waveguide, the latter offers high-frequency reproduction with an extremely broad sweet spot with fine, highly detailed imaging and a natural-sounding sense of depth.

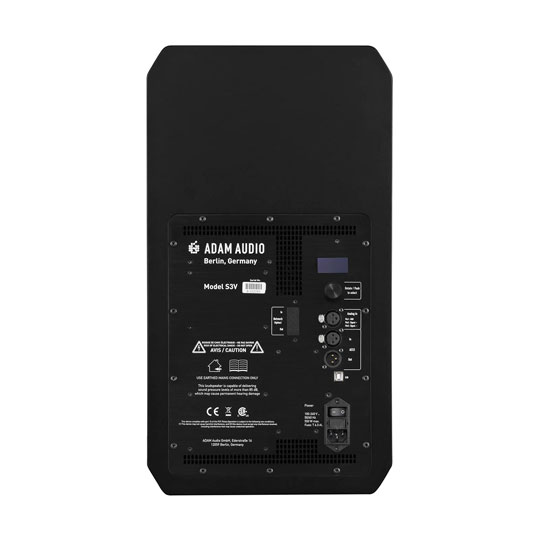

The S Series’ custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers’ DSP functions via a software front-end.
The S3V’s built-in amplification is generously specified, comprising Class D units for the bass and mid-range drivers (500 W and 300W RMS respectively) and a 50 W Class A/B amplifier for the S-ART tweeter.
Offering flawless reproduction of audio frequencies between 32 Hz and 50 kHz, the S3V is a standout offering for anyone demanding highly accurate imaging and localization from their reference monitors.
9" LF Driver
32Hz - 50kHzFrequency Response
124dBMaximum Peak SPL
at a glance
• German Handmade Precision S-ART Tweeter with HPS Waveguide
• 4" Dome / Cone Hybrid (Carbon Composite)
• Cumulated Amp. Power RMS: 850 W
• Max. SPL Per Pair at 1 m: ≥124 dB
• AES3 Digital Inputs And Various Expansion Options
HPS Waveguide
High-frequency Propagation SystemThe HPS (High-frequency Propagation System) waveguide was initially designed at ADAM Audio for the S-ART tweeter of the S Series range with the aid of the latest computer modeling techniques. It hones the dispersion of the speakers to an even, uniform consistency, broad in the horizontal axis but tightly focused in the vertical plane.
This minimizes potentially distracting reflections from the horizontal surfaces of significant studio furniture (for example mixing consoles), ensures that imaging remains constant, and creates a large, well-controlled and stable ‘sweet spot’, even at high output levels.
The U-ART tweeter as used in the T Series is fitted to a precision waveguide with the same dispersion-control attributes as the HPS waveguide used in ADAM Audio’s flagship S Series studio monitors.
ELE Bass Driver
Extended Linear ExcursionThe S Series ELE™ bass driver (short for Extended Linear Excursion) is a custom design created especially for and in parallel with the S Series cabinet and bass-reflex system.
Realised by an ingenious combination of human engineering skill and the latest computer modeling techniques, it guarantees accurate audio reproduction at an extremely high resolution thanks to the precision-designed relationship between its low weight, optimized inner damping and highly rigid honeycomb cone, in conjunction with a basket which has been developed to eliminate unwanted resonance and distortion.
The result is a bass driver that offers audio professionals a clarity and transparency hitherto unexperienced in low-frequency audio reproduction, operating with great precision even at high sound pressure levels.
The ADAM Audio S3V Monitors
For producers Jim Roach and Danny Reisch, the clarity from their monitors is a key factor during their creative process. Once they installed their Sound On Sound award winning ADAM Audio S3V’s, they found new levels to the range in sound, imaging, and amaze their clients with unparalleled quality. With their S3V’s, Jim and Danny have a newfound confidence and sense of fun while mixing and tracking sessions.
The Tech Spec
| Features | Specification | Powered | Yes |
|---|---|
| Power Configuration | Tri-amped |
| LF Driver Size | 9" woofer |
| LF Driver Type | Hexacone |
| MF Driver Size | 4" |
| MF Driver Type | Carbon-composite |
| HF Driver Size | 2.2" S-ART tweeter |
| LF Driver Power Amp | 500W |
| MF Driver Power Amp | 300W |
| HF Driver Power Amp | 50W |
| Frequency Response | 32Hz-50kHz |
| Crossover Frequency | 250Hz, 3000Hz |
| Maximum Peak SPL | ≥124dB SPL @ 1m |
| Input Types | 1 x XLR, 1 x XLR (AES/EBU) |
| Output Types | 1 x XLR (AES/EBU) |
| USB | 1 x Type B |
| Enclosure Type | Ported |
| Height | 21.5" |
| Width | 11.5" |
| Depth | 15" |
| Weight | 55 lbs |
| Warranty | 5 years (2 years warranty plus 3 years optional with product registration) |
