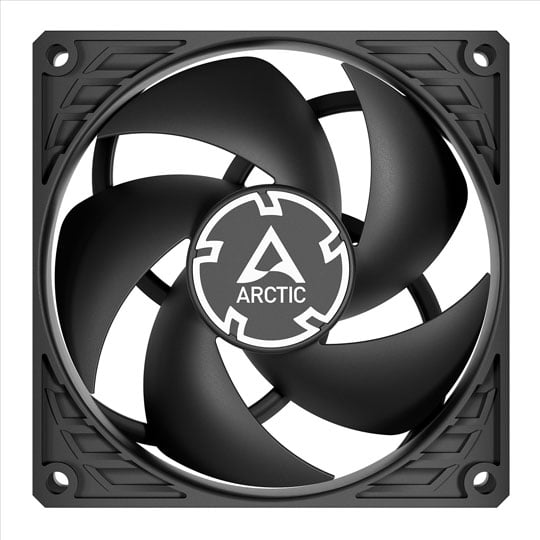

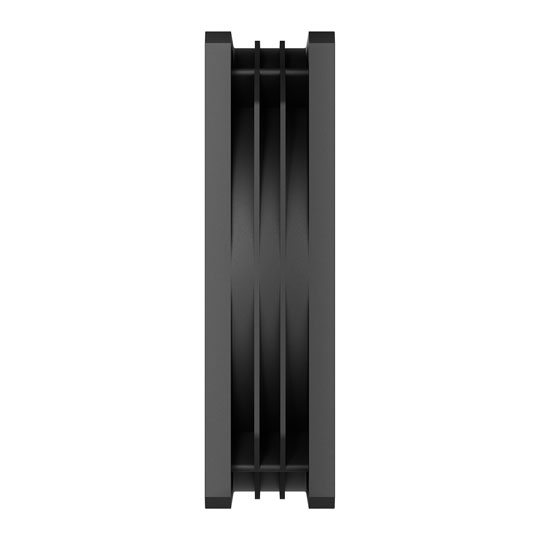

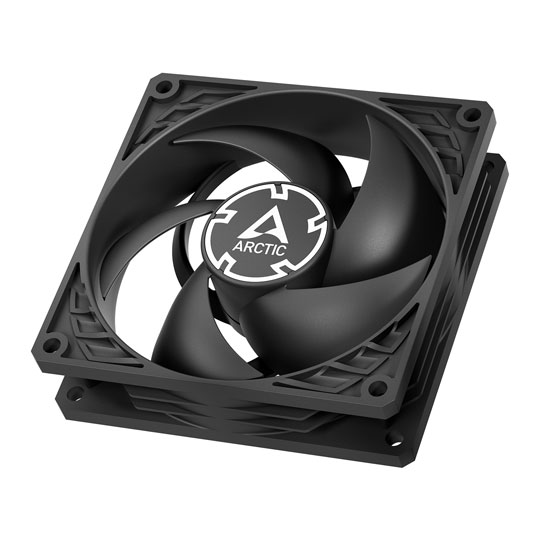

Arctic P9 Silent Black 92mm High Static Pressure Fan
Arctic P9 Silent Black 92mm High Static Pressure Fan
Scan code: LN156573 Manufacturer code: ACFAN00297A
£4.99
Get it Tomorrow, 28 MarIn stock
  • Thumbnail 1 : Arctic P9 Silent Black 92mm High Static Pressure Fan
  • Thumbnail 2 : Arctic P9 Silent Black 92mm High Static Pressure Fan
  • Thumbnail 3 : Arctic P9 Silent Black 92mm High Static Pressure Fan
  • Thumbnail 4 : Arctic P9 Silent Black 92mm High Static Pressure Fan

Arctic P9 Silent Black 92mm High Static Pressure Fan

92mm Arctic P9 Silent, Black, High Static Pressure, 5 Blade, Dual Ball Bearing, Upto 1900rpm, 23.96CFM Airflow,3-Pin

Scan code: LN156573 Manufacturer code: ACFAN00297A
£4.99
£5.48 NEXT DAY DELIVERY
Order now and get it tomorrow, Fri 28th Mar
Get it Tomorrow, 28 MarIn stock
  • By DPD On 28th Mar Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Product Overview

Powerful Cooling

The P9 Silent is a 92 mm fan with 1900 rpm. The fan delivers a static pressure of 1.32 mmH2O, generates an airflow of up to 23.96 cfm and is extremely efficient at only 0.08 A. The fan speed still can be controlled via voltage regulation.


Optimised for High Static Pressure

The P9 Silent delivers a focused airflow and guarantees a good airflow even with particularly high static pressure. Therefore, the P9 Silent is also specially suitable for use on heat sinks, radiators, pinholes and filters.


Virtually Silent Due Fluid Dynamic Bearing

As a special feature, the P9 Silent is equipped with ARCTIC's proven Hydrodynamic Bearing. This provides virtually silent operation at all speeds. Although these bearings tend to wear out, ARCTIC does not compromise on durability and offers a 6-year warranty.


Almost Noiseless Motor

Especially at low fan speeds, the motor is the main source of unwanted noise. A German-designed motor with an improved bearing reduces friction and vibration, thus reducing noise and enabling near-silent operation.


Quality You Can Rely On

To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee.


Features

• Fan Speed: 1900 rpm.
• Airflow: 23.96 cfm | 40.70 m³/h.
• Static Pressure: 1.32 mmH2O.
• Fan Bearing: Fluid Dynamic Bearing.
• Typical Voltage: 12 V DC.
• Starting Voltage: 5 V.
• Current | Voltage: 0.08 A.
• Cable Length: 400 mm.
• Connector: 3-Pin Fan Plug.

Specifications
Pack Information
Edition P9 Silent
Pack Type Single (1) Fan Standalone Pack
Includes 1 x 92mm Fan/s
Individual Fan Specifications
Fan Diameter 92mm
Fan Depth 25 mm
Fan Speed 1900 rpm
Fan Blades 5
PWM Yes
Fan Specialization Inaudible Airflow
Airflow 23.96 CFM
Air Pressure 1.32 mm H²O
Sound Level (dBA)
Sound Level (Sone)
Motor Type
Bearing Type Fluid Dynamic Bearing
Manual Speed Controller No
Material
Fan Colour Black
LED No
LED Colour
MTBF
Fan Fixing
Cable length 400 mm
Connectors 1 x 3-pin
Additional Information
Scan Code LN156573
Model Number ACFAN00297A
GTIN 4895213704977
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
72 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
ARCTIC GmbH
