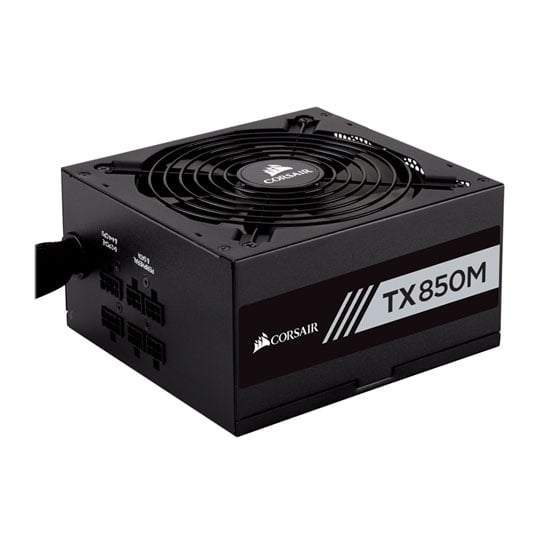

Corsair 850W TX850M Gold Hybid Modular Power Supply/PSU
850W Corsair TX-850M, Hybrid Modular, 80PLUS Gold, SLI/CrossFire, Single Rail, 70.8A, 140mm Fan, ATX PSU
By DPD On 20th Sep 2019
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

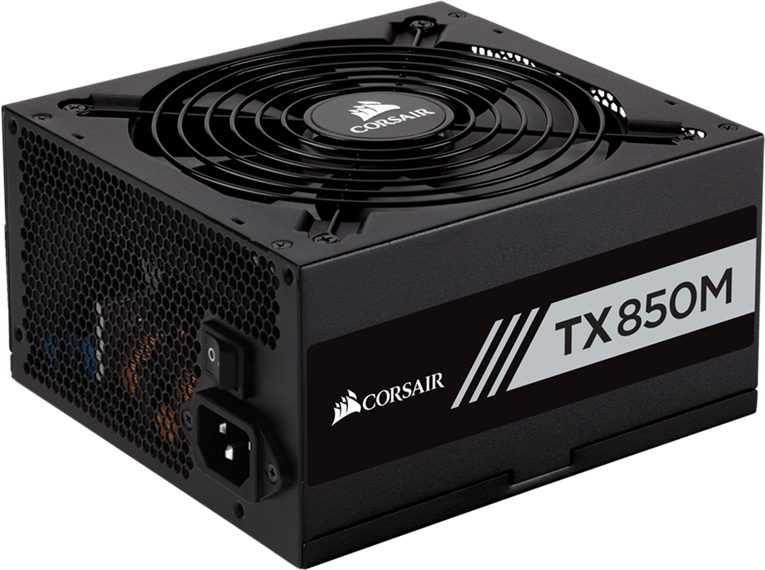

TX850M - Corsair Power Supply - Hybrid Modular ATX PSU
Corsair TXM 850W Power Supply
For basic desktop systems the TXM series semi-modular power supplies are ideal and give you low noise and energy, with a power output of 850W this PSU is ideal to run an entry level PC. All the capacitors are 105°C rated Japanese brand to ensure a solid power delivery. The super-efficient operation of the TX850M generates less heat giving it an 80PLUS Gold rating.
View other TXM Series power supplies:
TX550M - TX650M - TX750M

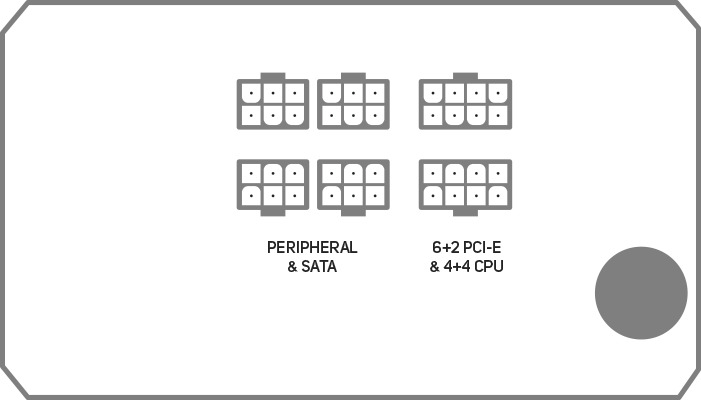

Hybrid Modular Connectivity
TXM Hybrid Modular Cable Design
The flat, sleeved black cables are modular, so you’ll only use the cables you need and you’ll get great-looking results. The clearly-marked connectors make installation fast and straightforward.

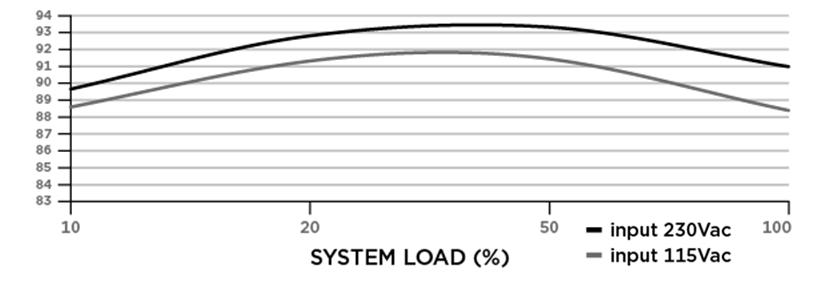

TX850M Efficiency & Noise Graphs

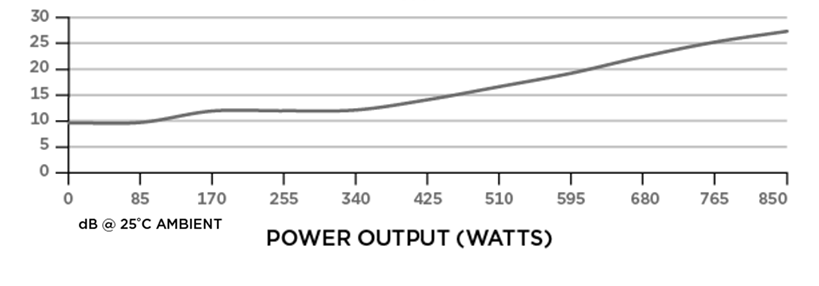

TX850M FAN NOISE
Corsair TX850M Output Power Chart
|Corsair TX850M ATX Power Supply|
|AC Input Rating||DC Output Rating|
|AC Input: 100V - 240V||DC Output||+3.3V||+5V||+12V||-12V||+5Vsb|
|Current: 10A - 5A||Max Load||25A||50A||70.8A||0.8A||3A|
|Frequency: 47Hz - 63Hz||Maximum Combined Wattage||130W||849.6W||9.6W||15W|
|Total Power: 850W|
Corsair TX850M Key Features
80 PLUS Gold CertifiedGold certification ensures high efficiency operation for less excess heat and lower operating costs.
Japanese 105°C capacitorsPremium internal components ensure solid power delivery and long term reliability.
|80 PLUS Certification||80 PLUS Gold|
|Max. Efficiency (at 230Vac)||90 %|
|Fans||1 x 140mm|
|Internal +12V Rails||Single Rail|
|Rail 1 +12V||70.8 A|
|Rail 2 +12V||N/A|
|Rail 3 +12V||N/A|
|Rail 4 +12V||N/A|
|Rail 5 +12V||N/A|
|Rail 6 +12V||N/A|
|Max. Combined Output +12V||70.8 A|
|Dimensions||150 x 86 x 140 mm (WxHxD)|
