Corsair 750W TX750M Gold Hybid Modular Power Supply/PSU

750W Corsair TX-M Series TX750M PSU, 80PLUS Gold, Hybrid Modular, Single Rail, 62A + 12V, 120mm Fan, ATX PSU

Thumbnail 1 : Corsair 750W TX750M Gold Hybid Modular Power Supply/PSU Thumbnail 2 : Corsair 750W TX750M Gold Hybid Modular Power Supply/PSU Thumbnail 3 : Corsair 750W TX750M Gold Hybid Modular Power Supply/PSU Thumbnail 4 : Corsair 750W TX750M Gold Hybid Modular Power Supply/PSU
Scan code: LN79175 Manufacturer code: CP-9020131-UK
£89.99
Order now and get it tomorrow, Mon 26th Oct
Delivery Options
  • By DPD On 26th Oct to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

TX750M - Corsair Power Supply - Hybrid Modular ATX PSU

Corsair TX750M Power Supply 80PLUS - Gold

Corsair TXM 750W Power Supply

For basic desktop systems the TXM series semi-modular power supplies are ideal and give you low noise and energy, with a power output of 750W this PSU is ideal to run an entry level PC. All the capacitors are 105°C rated Japanese brand to ensure a solid power delivery. The super-efficient operation of the TX750M generates less heat giving it an 80PLUS Gold rating.

View other TXM Series power supplies:
TX550M - TX650M - TX850M

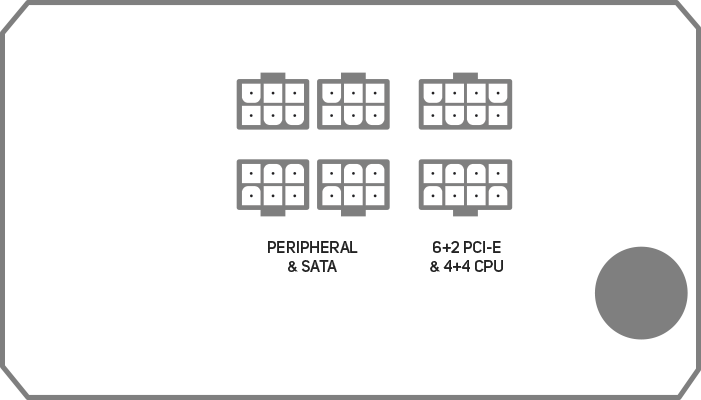

Hybrid Modular Connectivity

Connections

TXM Hybrid Modular Cable Design

The flat, sleeved black cables are modular, so you’ll only use the cables you need and you’ll get great-looking results. The clearly-marked connectors make installation fast and straightforward.

TX750M Efficiency & Noise Graphs

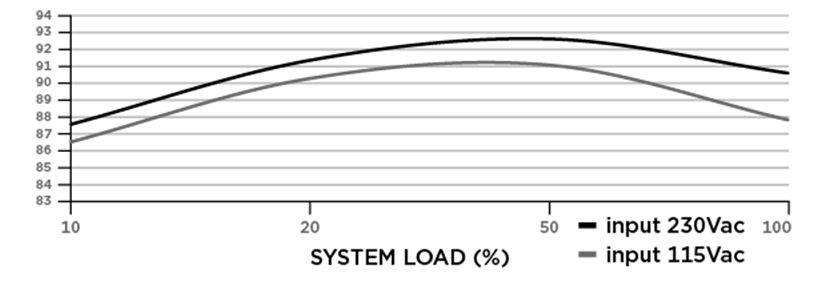

TX750M EFFICIENCY

Efficiency Graph

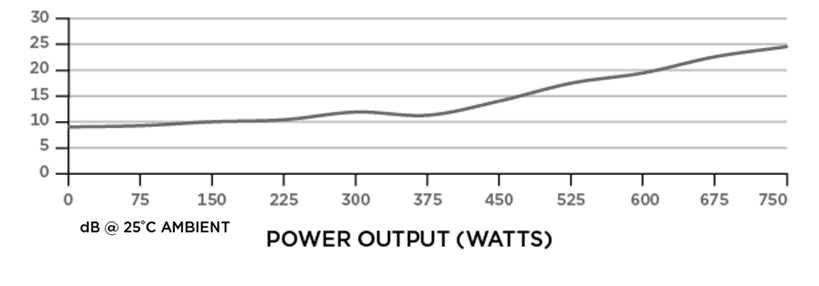

TX750M FAN NOISE

Noise Graph

Corsair TX750M Output Power Chart

Corsair TX750M ATX Power Supply
AC Input Rating DC Output Rating
AC Input: 100V - 240V DC Output +3.3V +5V +12V -12V +5Vsb
Current: 10A - 5A Max Load 25A 25A 62A 0.8A 3A
Frequency: 47Hz - 63Hz Maximum Combined Wattage 130W 744W 9.6W 15W
  Total Power: 750W

Corsair TX750M Key Features

80PLUS - Gold

80 PLUS Gold CertifiedGold certification ensures high efficiency operation for less excess heat and lower operating costs.

Japanese Capacitors

Japanese 105°C capacitorsPremium internal components ensure solid power delivery and long term reliability.

Specifications
Size ATX
Edition TX750
Wattage 750 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency (at 230Vac) 90 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 62 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 62 A
Modular Yes
Modularity Hybrid Modular
SLI/CrossFire No
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 1 x 4-pin FDD Power
  • 4 x 4-pin Molex
  • 2 x 6-pin PCIe
  • 4 x SATA
Dimensions 150 x 86 x 140 (WxHxD)
Package Type Retail
Additional Information
Scan Code LN79175
Model Number CP-9020131-UK
GTIN 1715485100006
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
84 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
84 months
Manufacturer Contact Details
Manufacturer:
Corsair UK
Telephone:
0871 472 4747
Loading Please Wait

Please wait . . .

TekSpek Guides
Power Supply units
Power Supply units
Date Issued: 28th Apr 2020

Power-supply units, or PSUs, are an integral part of any computer build. Often overlooked, it is the component that is likely to last the longest, and it can be moved between systems when you upgrade to the latest and greatest in the future.

Read More

750W Corsair TX-M Series TX750M PSU, 80PLUS Gold, Hybrid Modular, Single Rail, 62A + 12V, 120mm Fan, ATX PSU is rated 5.0 out of 5 by 3.
Rated 5 out of 5 by from Speedy delivery and solved my problem I started having random crashes and I realised my PSU was failing. After shopping around, I found the PSU I wanted here, and it was delivered to me next day. Really impressed at how fast it arrived. New PSU is working fine, and has solved my problem so far.
Date published: 2020-08-13
Rated 5 out of 5 by from Probably overkill for most builds Bought this when I didn’t really know what i was doing so 750W is probably more than I need but my first pc works great plus the power supply fan isn’t loud. Corsair makes great stuff and this isn’t an exception. The supply is semi modular, making cable management easier. The cables supplied were absolutely adequate.
Date published: 2020-06-01
Rated 5 out of 5 by from Amazing sellers, and a great product Scan, have gone above and beyond to help me build my pc, I would recommend that if anyone reading this needs advice on a product or is looking, also for the best value for your money. That, you try Scan.co.uk. Thankyou Scan ver much
Date published: 2019-11-29
  • y_2020, m_9, d_10, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_GB, sid_79175, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan

80+ Gold or Bronze?

The title here seems to suggest this PSU is 80+ Gold certified however when googling the name and going to Corsair website they seem to suggest this PSU is 80+ Bronze
Asked by: Jouph
100% the product states it’s 80 plus gold certified. Il share a photo of my TX750M by Corsairs. Check the product your looking at is genuinely the same
Answered by: Madman1989
Date published: 2020-01-29
