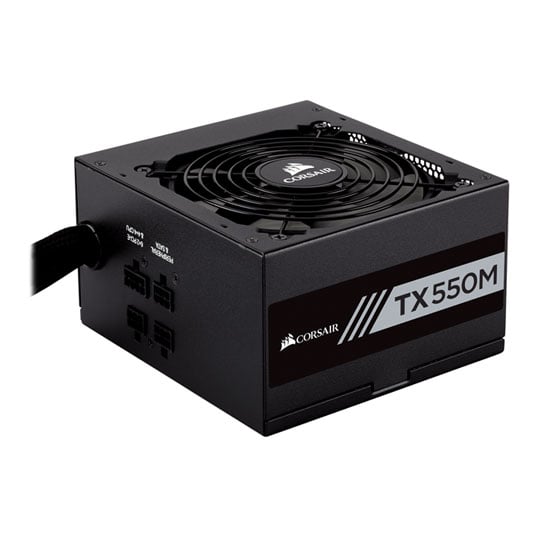

Corsair 550W TX550M Gold Hybid Modular Power Supply/PSU
550W Corsair TX550M, Hybrid Modular, 80PLUS Gold, SLI/CrossFire, Single Rail, 43A, 120mm Fan, ATX PSU
TX550M - Corsair Power Supply - Hybrid Modular ATX PSU

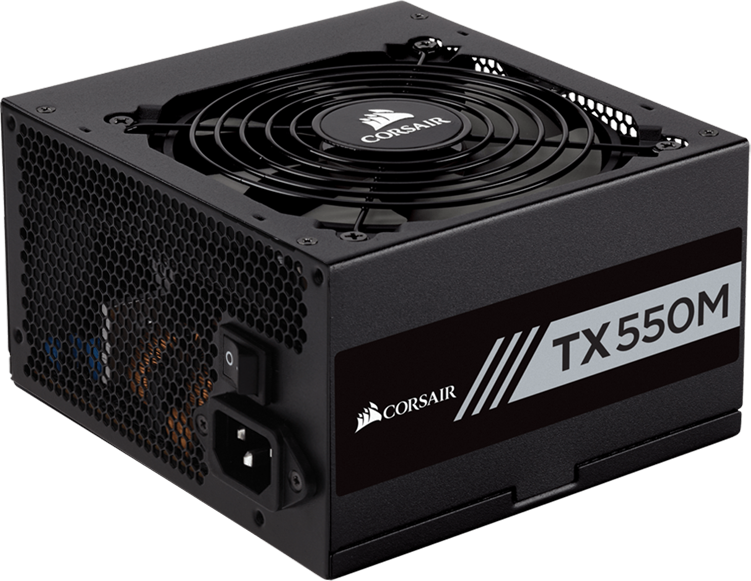

Corsair TXM 550W Power Supply
For basic desktop systems the TXM series semi-modular power supplies are ideal and give you low noise and energy, with a power output of 550W this PSU is ideal to run an entry level PC. All the capacitors are 105°C rated Japanese brand to ensure a solid power delivery. The super-efficient operation of the TX550M generates less heat giving it an 80PLUS Gold rating.
View other TXM Series power supplies:
TX650M - TX750M - TX850M
Hybrid Modular Connectivity
TXM Hybrid Modular Cable Design
The flat, sleeved black cables are modular, so you’ll only use the cables you need and you’ll get great-looking results. The clearly-marked connectors make installation fast and straightforward.

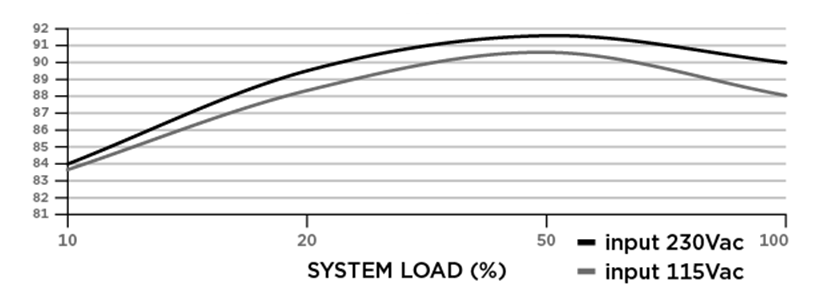

TX550M Efficiency & Noise Graphs

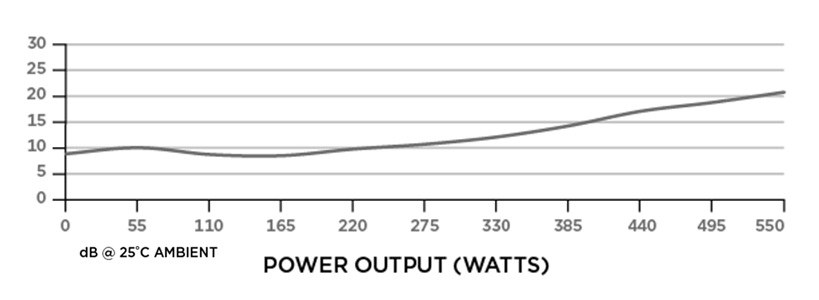

TX550M FAN NOISE
Corsair TX550M Output Power Chart
|Corsair TX550M ATX Power Supply|
|AC Input Rating||DC Output Rating|
|AC Input: 100V - 240V||DC Output||+3.3V||+5V||+12V||-12V||+5Vsb|
|Current: 10A - 5A||Max Load||25A||25A||43A||0.8A||3A|
|Frequency: 47Hz - 63Hz||Maximum Combined Wattage||120W||516W||9.6W||15W|
|Total Power: 550W|
Corsair TX550M Key Features
80 PLUS Gold CertifiedGold certification ensures high efficiency operation for less excess heat and lower operating costs.
Japanese 105°C capacitorsPremium internal components ensure solid power delivery and long term reliability.
|80 PLUS Certification||80 PLUS Gold|
|Max. Efficiency||90 %|
|Fans||1 x 120mm|
|Internal +12V Rails||Single Rail|
|Rail 1 +12V||43 A|
|Rail 2 +12V||N/A|
|Rail 3 +12V||N/A|
|Rail 4 +12V||N/A|
|Rail 5 +12V||N/A|
|Rail 6 +12V||N/A|
|Max. Combined Output +12V||43 A|
|Dimensions||150 x 86 x 140 mm (WxHxD)|
Please note your statutory rights are not affected.
For further information regarding Scan's warranty procedure please see our terms and conditions
- 84 months
- Return to base
- DOA Period:
- 28 days
- RTB Period:
- 84 months
- Corsair UK
- 0871 472 4747
Date Issued: 25th Oct 2017
Power-supply units, or PSUs, are an integral part of any computer build. Often overlooked, it is the component that is likely to last the longest, and it can be moved between systems when you upgrade to the latest and greatest in the future.
