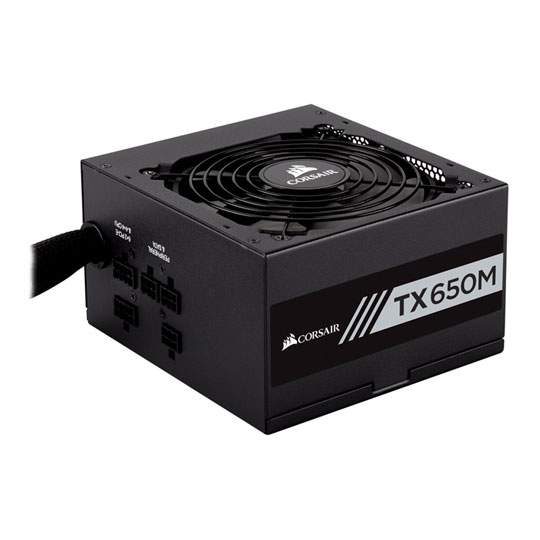

Corsair 650W TX650M Gold Hybid Modular Power Supply/PSU

650W Corsair TX-M Series TX650M PSU, 80PLUS Gold, Hybrid Modular, Single Rail, 51A + 12V, 120mm Fan, ATX PSU

Corsair
Scan code: LN79174 Manufacturer code: CP-9020132-UK Request call
£77.48
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 26th Sep 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

TX650M - Corsair Power Supply - Hybrid Modular ATX PSU

Corsair TX650M Power Supply 80PLUS - Gold

Corsair TXM 650W Power Supply

For basic desktop systems the TXM series semi-modular power supplies are ideal and give you low noise and energy, with a power output of 650W this PSU is ideal to run an entry level PC. All the capacitors are 105°C rated Japanese brand to ensure a solid power delivery. The super-efficient operation of the TX650M generates less heat giving it an 80PLUS Gold rating.

View other TXM Series power supplies:
TX550M - TX750M - TX850M

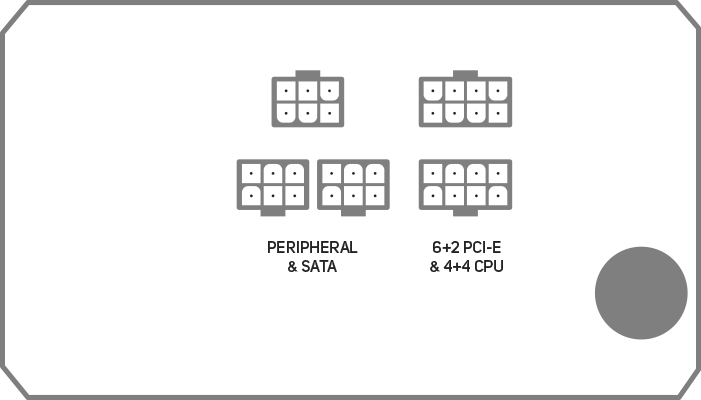

Hybrid Modular Connectivity

Connections

TXM Hybrid Modular Cable Design

The flat, sleeved black cables are modular, so you’ll only use the cables you need and you’ll get great-looking results. The clearly-marked connectors make installation fast and straightforward.

TX650M Efficiency & Noise Graphs

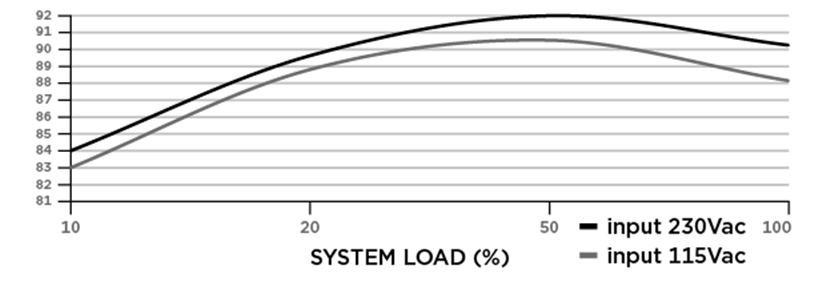

TX650M EFFICIENCY

Efficiency Graph

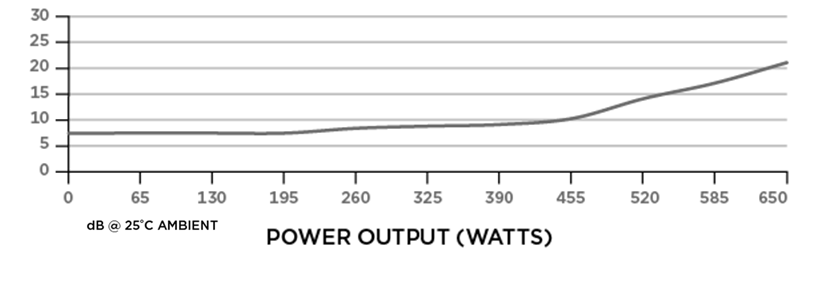

TX650M FAN NOISE

Noise Graph

Corsair TX650M Output Power Chart

Corsair TX650M ATX Power Supply
AC Input Rating DC Output Rating
AC Input: 100V - 240V DC Output +3.3V +5V +12V -12V +5Vsb
Current: 10A - 5A Max Load 25A 25A 51A 0.8A 3A
Frequency: 47Hz - 63Hz Maximum Combined Wattage 130W 612W 9.6W 15W
  Total Power: 650W

Corsair TX650M Key Features

80PLUS - Gold

80 PLUS Gold CertifiedGold certification ensures high efficiency operation for less excess heat and lower operating costs.

Japanese Capacitors

Japanese 105°C capacitorsPremium internal components ensure solid power delivery and long term reliability.

Specifications
Size ATX
Edition TX650
Wattage 650 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency 90 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 51 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 51 A
Modular Yes
Modularity Hybrid Modular
SLI/CrossFire No
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 4 x 4-pin Molex
  • 2 x 6-pin PCIe
  • 1 x FDD Power
  • 4 x SATA
Dimensions 150 x 86 x 140 (WxHxD)
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
84 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
84 months
