Scan code: LN103952 Manufacturer code: ACFAN00150A

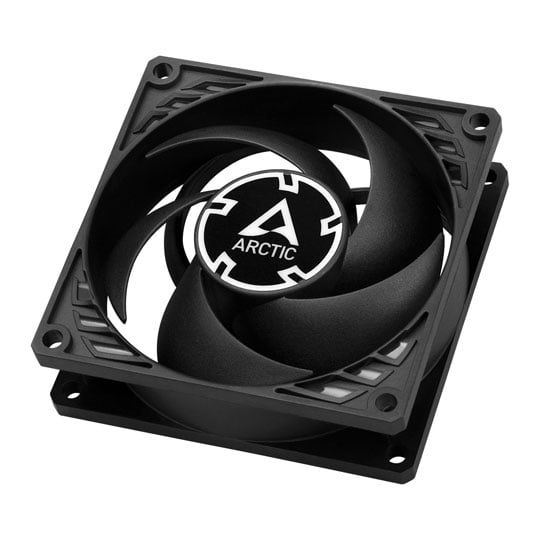

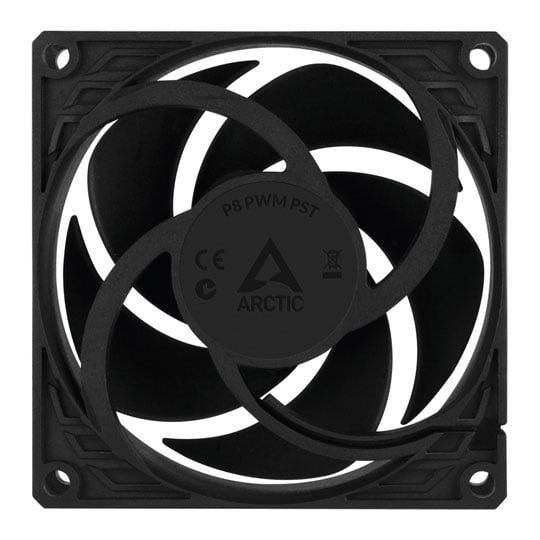

Arctic P8 Black 80mm Pressure Optimised PWM Fan

80mm Arctic P8 PWM PST, Black, Pressure Optimised, 5 Blade, Fluid Dynamic Bearing, Upto 3000rpm, 23.4CFM Airflow, 4-Pin

Thumbnail 1 : Arctic P8 Black 80mm Pressure Optimised PWM Fan Thumbnail 2 : Arctic P8 Black 80mm Pressure Optimised PWM Fan Thumbnail 3 : Arctic P8 Black 80mm Pressure Optimised PWM Fan Thumbnail 4 : Arctic P8 Black 80mm Pressure Optimised PWM Fan
Scan code: LN103952 Manufacturer code: ACFAN00150A
£8.48
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 28th Jan to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Optimised for Static Pressure

During the development of the new P8 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P8 PWM PST is particularly suitable for use on heatsinks and radiators.


Maximum Quietness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.


Extended Life Span

A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years.


200 to 3000RPM Regulated via PWM PST

Thanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.


High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Features
Fan Size: 80mm.
Bearing: Fluid Dynamic Bearing.
Fan Speed: 200 - 3000RPM.
Airflow: 23.4 CFM.
Connector: PWM PST.
Specifications
Pack Information
Edition P8 PWM PST
Pack Type Single (1) Fan Standalone Pack
Includes 1 x 80mm Fan/s
Individual Fan Specifications
Fan Diameter 80mm
Fan Depth 25 mm
Fan Speed 200 - 3000 rpm
Fan Blades 5
PWM Yes
Fan Specialization Static Pressure
Airflow 23.4 CFM
Air Pressure
Sound Level (dBA)
Sound Level (Sone)
Motor Type
Bearing Type Fluid Dynamic Bearing
Manual Speed Controller No
Material
Fan Colour Black/Black
LED No
LED Colour N/A
MTBF
Fan Fixing Screw Fixing
Cable length 400 mm
Connectors 1 x 4-pin
Additional Information
Scan Code LN103952
Model Number ACFAN00150A
GTIN 4895213702034
