Scan code: LN105888 Manufacturer code: ACFAN00151A

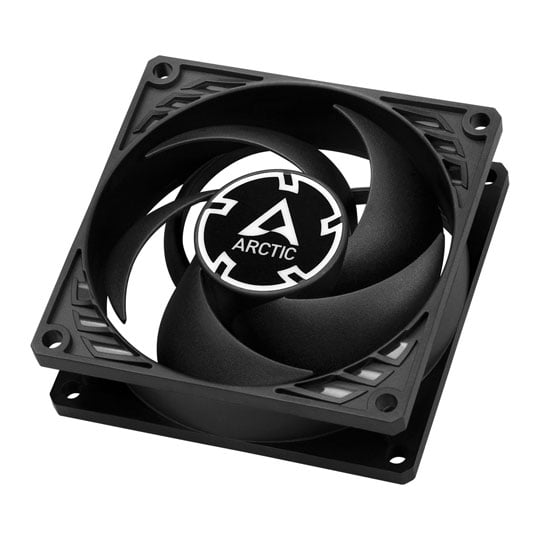

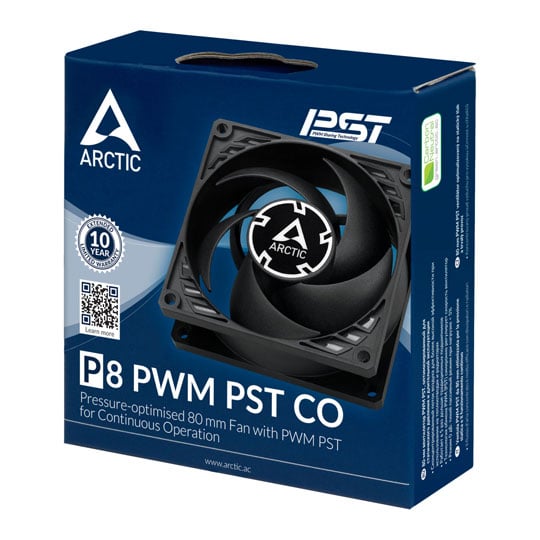

Arctic P8 PWM PST CO Fan Black

80mm Arctic P8 PWM PST CO, Black, PWM PST, 5 Blade, Static Pressure Fan, 3000rpm, 23.4CFM, Fluid Dynamic Bearing

Thumbnail 1 : Arctic P8 PWM PST CO Fan Black Thumbnail 2 : Arctic P8 PWM PST CO Fan Black Thumbnail 3 : Arctic P8 PWM PST CO Fan Black Thumbnail 4 : Arctic P8 PWM PST CO Fan Black
Scan code: LN105888 Manufacturer code: ACFAN00151A
£5.99
Order now and get it tomorrow, Fri 17th Jul
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 17th Jul to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Product Overview

Optimised for Static Pressure

During the development of the new P8 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P8 PWM PST CO is particularly suitable for use on heatsinks and radiators.


For Continuous Operation

The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential.


Maximum Quietness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.


Extended Life Span

A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years.


200 to 3000 RPM regulated via PWM

With a wide range of regulation and the PWM Sharing Technology (PST), the P8 PWM PST CO fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.

Features
• Optimised for static pressure.
• Ideal choice for on radiators, heatsinks, or close meshed fan grilles.
• PWM Sharing Technology (PST) regulates fan speed synchronously.
• Broad RPM range for highest performance and low noise level.
• Black Fan.
Specifications
Pack Information
Edition P8 PWM PST CO
Pack Type Single (1) Fan Standalone Pack
Includes 1 x 80mm Fan/s
Individual Fan Specifications
Fan Diameter 80mm
Fan Depth 25 mm
Fan Speed 3,000 rpm
Fan Blades 5
PWM Yes
Fan Specialization Static Pressure
Airflow 23.4 CFM
Air Pressure
Sound Level (dBA) 22.5 dBA
Sound Level (Sone) 0.3 (@3,000RPM) Sone
Motor Type 3-phase Motor
Bearing Type Fluid Dynamic Bearing
Manual Speed Controller No
Material Plastic
Fan Colour Black/Grey
LED No
LED Colour
MTBF
Fan Fixing Screw Fixing
Cable length 400 mm
Connectors 1 x 4-pin
Additional Information
Scan Code LN105888
Model Number ACFAN00151A
GTIN 4895213702041
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.
