Scan code: LN104632 Manufacturer code: NF-A6X25-PWM

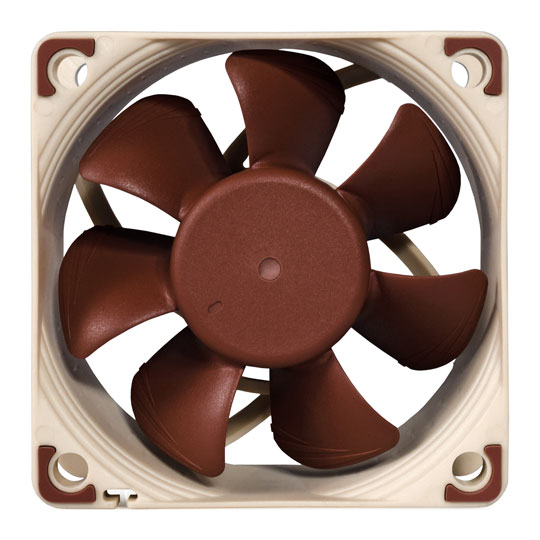

Noctua NF-A6x25 PWM 60mm Beige/Brown Fan

60mmm Noctua NF-A6x25 PWM, Beige/Brown, 7 Blade, SSO2 Bearing, 550-3000RPM, 17.2CFM Airflow, 19.3dB, 4-pin PWM

Thumbnail 1 : Noctua NF-A6x25 PWM 60mm Beige/Brown Fan Thumbnail 2 : Noctua NF-A6x25 PWM 60mm Beige/Brown Fan Thumbnail 3 : Noctua NF-A6x25 PWM 60mm Beige/Brown Fan Thumbnail 4 : Noctua NF-A6x25 PWM 60mm Beige/Brown Fan
Scan code: LN104632 Manufacturer code: NF-A6X25-PWM
£13.99
Order now and get it tomorrow, Fri 2nd Oct
Delivery Options
  • By DPD On 2nd Oct to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Low Noise 60mm Fan

Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAO frame, the NF-A6x25 is a highly optimised, premium quality quiet fan in 60x25mm size. The PWM version sports Noctua’s custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 3000 to 2100rpm. Its superb running smoothness, SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.


Reduced Motor Hub Size

Thanks to its streamlined, compact motor design, the NF-A6x25's motor hub is smaller than with conventional 6cm fans. This allows for more blade surface area and thus contributes to the NF-A6x25's superior airflow and pressure performance.


Flow Acceleration Channels

The NF-A6x25 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.


AAO Frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.


Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.


Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.


Integrated Anti-Vibration Pads

Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.


SSO2 Bearing

The NF-A6x25 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.


Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the NF-A6x25 PWM uses Noctua's custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.


Stops at 0% PWM

When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow.


Low-Noise Adaptor

The NF-A6x25 PWM is supplied with a (L.N.A.) that reduces the maximum fan speed from 3000 to 2100rpm. The L.N.A. can be used either to run the fan at a fixed speed of 2100rpm or to cap the maximum speed when using automatic PWM control.


Extensive Cabling Options

The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows the connection of a second NF-A6x25 PWM fan to the same PWM fan header for automatic control.


6-Year Manufacturer’s Warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A6x25 features an MTTF of more than 150.000 hours rating and comes with a full 6-year manufacturer’s warranty.

Features
• 60 x 25mm quiet PC PWM cooling fan.
• Noise level 19.3 dB(A).
• Features OmniJoin Adaptor Set.
• Six year manufacturer warranty.
Specifications
Pack Information
Edition NF-A6x25 PWM
Pack Type Single (1) Fan Standalone Pack

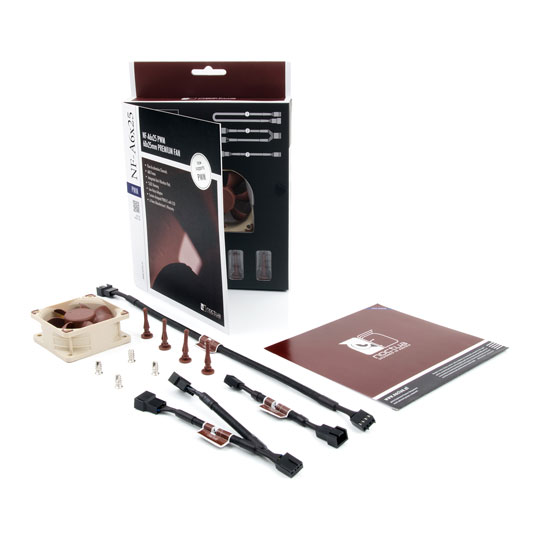

Includes
  • 1 x 60mm Fan/s
  • 4 x Fan Mounting Screws
Individual Fan Specifications
Fan Diameter 60mm
Fan Depth 25 mm
Fan Speed 550 - 3000 rpm
Fan Blades 7
PWM Yes
Fan Specialization Inaudible Airflow
Airflow 17.2 CFM
Air Pressure 2.18 mm H²O
Sound Level (dBA) 19.3 dBA
Sound Level (Sone)
Motor Type
Bearing Type SSO2
Manual Speed Controller No
Material Plastic / Rubber
Fan Colour Beige/Brown
LED No
LED Colour
MTBF 150000 Hours
Fan Fixing
  • Push-pin Fixing
  • Rubber Fan Mounts
  • Screw Fixing
Cable length 200 + 300 mm
Connectors 1 x 4-pin
Additional Information
Scan Code LN104632
Model Number NF-A6X25-PWM
GTIN 4716123315636
