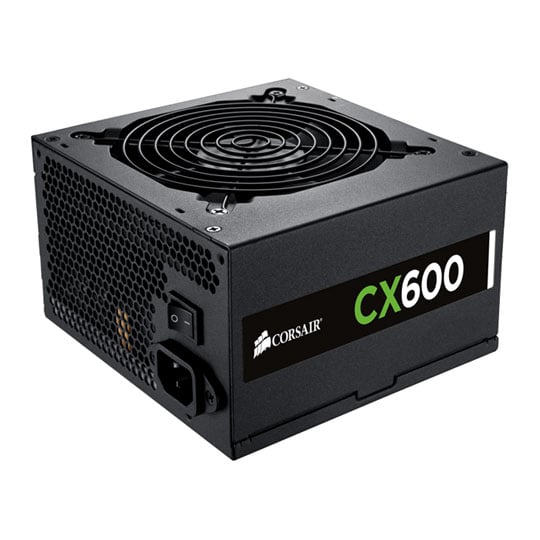

Corsair CP-9020048-UK CX 600W Power Supply

600W Corsair Builder Series CX, Non Modular, 80 PLUS Bronze, 1x120mm Fan, ATX, PSU

Corsair
Scan code: LN47076 Manufacturer code: 843591029445 Request call
£49.99
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Mid Range

There are 6 people viewing this product

Delivery options £5.48 By DPD On 26th Sep 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

CX600 - Corsair Power Supply - Non Modular ATX PSU

Corsair CX600 Power Supply 80PLUS - Bronze

Corsair CX 600W Power Supply

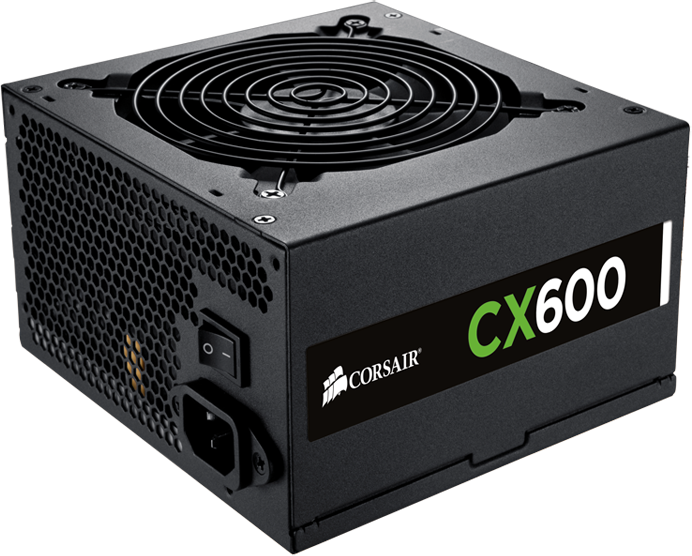

The CX Series power supply from Corsair is a great entry level PSU and is an excellent choice for basic system builds and desktop PC computer upgrades. CX Series PSUs are available in a variety of power configurations, and include features that are normally found only on premium power supplies. The matt black finish, black sleeved cables and black connectors give the CX600 a high-tech look. The clever thermally controlled fan design allows for little or no detectable fan noise during normal use, this gives an 80PLUS BRONZE certified efficiency rating. This CX600 has been built and tested to strict Corsair standards for a trouble-free installation.

View other CX Series power supplies:
CX430 - CX500

CX600 Efficiency & Noise Graphs

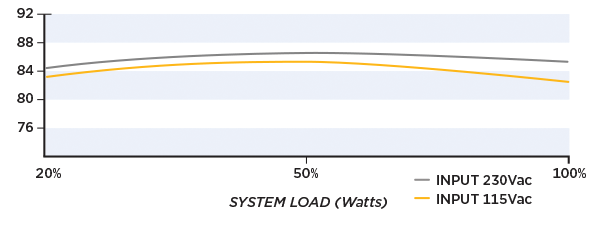

CX600 EFFICIENCY

Efficiency Graph

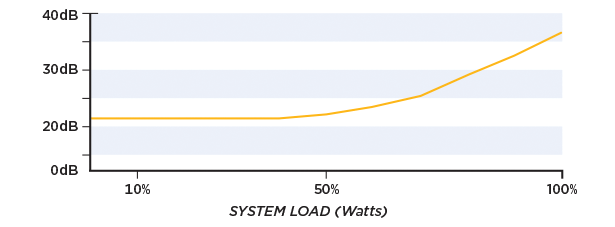

CX600 FAN NOISE

Noise Graph

Corsair CX600 Output Power Chart

Corsair CX600 ATX Power Supply
AC Input Rating DC Output Rating
AC Input: 100V - 240V DC Output +3.3V +5V +12V -12V +5Vsb
Current: 13A - 6.5A Max Load 25A 25A 46A 0.8A 3A
Frequency: 47Hz - 63Hz Maximum Combined Wattage 130W 552W 9.6W 15W
  Total Power: 600W
Specifications
Size ATX
Edition
Wattage 600 W
80 PLUS Certification 80 PLUS Bronze
Max. Efficiency
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 46 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 46 A
Modular No
Modularity
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 24-pin
Connectors
  • 1 x 4-pin ATX 12V
  • 4 x 4-pin Molex
  • 2 x 6-pin PCIe
  • 1 x 8-pin CPU +12V (EPS)
  • 1 x FDD Power
  • 6 x SATA
Dimensions 150 x 86 x 140 mm (WxHxD)
Package Type
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
60 months
Manufacturer Contact Details
Manufacturer:
Scan On Behalf Of Corsair
Telephone:
0871 472 4747
Customers also bought
Reviews
600W Corsair Builder Series CX, Non Modular, 80 PLUS Bronze, 1x120mm Fan, ATX, PSU is rated 4.7 out of 5 by 13.
Rated 5 out of 5 by from Good Product Good quality brand, does what it says. bla bla bla
Date published: 2016-12-19
Rated 5 out of 5 by from Good value for money What can I say; a respected brand that does what you expect. Enough connectors for many devices and the cables are long enough for at least a midi-tower and probably for a full tower. Of course it is up to you to determine if this PSU is powerful enough for your rig and that it has the correct number of connectors. Overall pleased with my purchase
Date published: 2016-11-12
Rated 4 out of 5 by from Powered up PC OK I hope this lasts longer than the Coolmaster PSU that was in the PC base I got built by Scan
Date published: 2016-06-05
Rated 5 out of 5 by from Powerful yet quiet in operation Bought this to replace a 'suspect' PU. This is a quite PU with amble power leads. Fixed my problematic PC problems. Would also like to praise the next day DPT delivery and the hour time slot allocated.
Date published: 2015-11-26
Rated 5 out of 5 by from It works and is very quiet, difficult to say otherwise. I put it in and switched it on and it works. The cable fittings always seem to be the wrong orientation for me or perhaps I am fitting my disks upside down??? It seems a good piece of kit though only been going for a few weeks so can't say much more.
Date published: 2015-01-18
Rated 5 out of 5 by from Good power supply good price very quiet works perfect my old psu blew up i got scared that other components where damage but im happy with it that i bought this new power supply
Date published: 2014-11-14
Rated 5 out of 5 by from Fantastic Super duper, easy to install , all works well and very easy to install.
Date published: 2014-04-03
Rated 5 out of 5 by from Good Power Supply! Works without a problem and good value for money! 10/10
Date published: 2014-02-13
  • y_2017, m_9, d_22, h_18
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_13
  • loc_en_GB, sid_47076, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Haswell Ready

I would like to purchase this psu to use with a "4th Generation Intel Core (Haswell) i5-4430 3.00GHz (3.20GHz Turbo) Quad-Core Processor - 6MB Cache" on a "GIGABYTE GA-H87M-HD3 Intel H87 Express Chipset Motherboard" but I have just noticed that it states in the specs that the PSU isn't "Haswell Ready" does this mean that the PSU will not work with my CPU? If not could you recommend a 600w PSU that will. The PC is just a home/office PC not a gaming PC. Thanks
Asked by: GazRam
Just done a quick search about Haswell ready PSUs and it would appear there are some potential issues with Haswell CPUs and non-compatible PSUs. This page explains the issues and an answer from Corsair which should guide you to the correct PSU.
Answered by: oldn
Date published: 2017-01-15

Does the ATX connector split down to a 20 pin from 24 pin?

Hello, I'm looking to replace the PSU in an old system, as a precaution - does this power supply allow you to split the 24 pin ATX connector down to a 20 pin? Thanks in advance.
Asked by: Jp1805
Hello, This is a 24 pin connector and does not split to a 20+4 pin. Regards,
Answered by: JackB
Date published: 2017-09-15

Will this run a Asus R9 280x and Phenom x4 955 BE?

Asked by: Scooby
A minimum of a 600W PSU is requried for this GPU. It is a good idea to give yourself some head room so a 750 - 850 W PSU would be recommended.
Answered by: ChrisP
Date published: 2015-07-17
