Scan code: LN47075 Manufacturer code: CP-9020047-UK

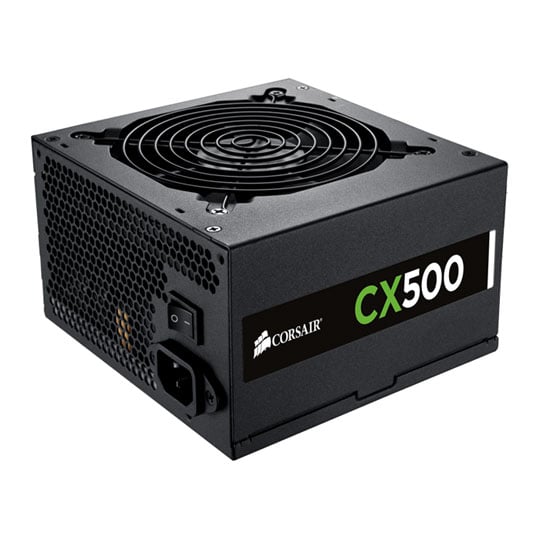

Corsair 500 Watt System Builder ATX PSU/Power Supply

500W Corsair CX500 Builder Series CX, Fully Wired, 80 PLUS Bronze, SLI/CrossFire, Single Rail, 38A, 120mm Fan, ATX PSU

Scan code: LN47075 Manufacturer code: CP-9020047-UK
3xs Approved
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jul 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

CX500 - Corsair Power Supply - Non Modular ATX PSU

Corsair CX500 Power Supply 80PLUS - Bronze

Corsair CX 500W Power Supply

The CX Series power supply from Corsair is a great entry level PSU and is an excellent choice for basic system builds and desktop PC computer upgrades. CX Series PSUs are available in a variety of power configurations, and include features that are normally found only on premium power supplies. The matt black finish, black sleeved cables and black connectors give the CX500 a high-tech look. The clever thermally controlled fan design allows for little or no detectable fan noise during normal use, this gives an 80PLUS BRONZE certified efficiency rating. This CX500 has been built and tested to strict Corsair standards for a trouble-free installation.

View other CX Series power supplies:
CX430 - CX600

CX500 Efficiency & Noise Graphs


Efficiency Graph

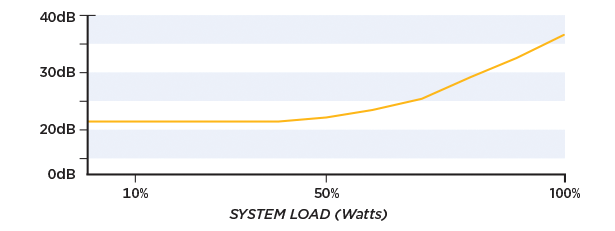

Noise Graph

Corsair CX500 Output Power Chart

Corsair CX500 ATX Power Supply
AC Input Rating DC Output Rating
AC Input: 100V - 240V DC Output +3.3V +5V +12V -12V +5Vsb
Current: 13A - 6.5A Max Load 25A 25A 38A 0.8A 3A
Frequency: 47Hz - 63Hz Maximum Combined Wattage 120W 456W 9.6W 15W
  Total Power: 500W
Size ATX
Edition CX500
Wattage 500 W
80 PLUS Certification 80 PLUS Bronze
Max. Efficiency (at 230Vac) 85 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 38 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 38 A
Modular No
Modularity Fully Wired
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
  • 1 x 4+4-pin CPU +12V (EPS)
  • 1 x 4-pin FDD Power
  • 4 x 4-pin Molex
  • 2 x 6+2-pin PCIe
  • 5 x SATA
Dimensions 150 x 86 x 140 mm (WxHxD)
Package Type Retail
Additional Information
Scan Code LN47075
Model Number CP-9020047-UK
GTIN 1629716900004

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

36 months
Return to base
DOA Period:
28 days
RTB Period:
60 months
Manufacturer Contact Details
0871 472 47 47
Loading Please Wait

Please wait . . .

TekSpek Guides
Power Supplies
Power Supplies
Date Issued: 25th Oct 2017

Power-supply units, or PSUs, are an integral part of any computer build. Often overlooked, it is the component that is likely to last the longest, and it can be moved between systems when you upgrade to the latest and greatest in the future.

Read More

500W Corsair CX500 Builder Series CX, Fully Wired, 80 PLUS Bronze, SLI/CrossFire, Single Rail, 38A, 120mm Fan, ATX PSU is rated 3.9 out of 5 by 8.
Rated 1 out of 5 by from Not recommended This power supply works one way but the other way it sounds like it's going to explode the fan is so loud I would recommend buying a better power supply for a bit more.
Date published: 2017-09-21
Rated 3 out of 5 by from This is replacement, so it's a case of wait and see. This item's predecessor simply failed (blinking green light on motherboard and nothing would power up at all). Once installed it worked straight away, and the installation was easy. Without knowing why the older one failed I cannot know whether there is a generic risk with this item or whether it was just a one-off failure.
Date published: 2017-02-05
Rated 5 out of 5 by from Practically Plug-and-Play After excavating my old PSU from the ancient ruin that is my Desktop tower, I was able to install the new 500W Corsair PSU with ease, and was back to playing my favourite games in no more than 10 minutes since the thing arrived in the post. As someone new to self-building, I was able to plug it in no problem and had no more crashes after that. Marvellous!
Date published: 2016-03-03
Rated 5 out of 5 by from Excellent power supply I can't fault the product and very fast delivery..
Date published: 2016-01-29
Rated 5 out of 5 by from Great Product! There is nothing BAD I can say about this. the cable sleeving is strong and good looking. there are enough PCIE 8-pin power connectors to power 1 High end GPU or maybe 2 Mid-range ones. There are a lot of cables and are hard to hide but is much better that any other Power supply's at this price point
Date published: 2014-12-22
Rated 4 out of 5 by from The Value for money is incredible. This originally was a product that I was going to replace as soon as i got my system put together and running, it was going to be a spare if i ever needed it, but I am very impressed, it has exceed all of my expectations and I am incredibly impressed with this item! and I am now keeping it. However if i was to upgrade my GPU or my CPU or Motherboard, then I would upgrade this too! but not to take away from the impressiveness of this item, I am very pleased with it!
Date published: 2014-07-10
Rated 4 out of 5 by from Great Its a great item but is tricky to install, i had to get help from someone to do this, but worth the money
Date published: 2014-01-14
Rated 4 out of 5 by from A decent budget PSU PSU is good, but a few too many cables. With 500W I'm not sure you could ever use all of the power cables it comes with, so it's a bit messy. Maybe buy the modular version instead.
Date published: 2013-11-21
  • y_2019, m_7, d_20, h_16
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_8
  • loc_en_GB, sid_47075, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

What are these power connectors used for

I am comparing different PSU's at Scan, what are these used for 2 x 6pin PCI-E Power 1 x 4pin ATX 12V 4 x 4pin Molex 1 x 8pin CPU +12V Do I really need 2 x 6pin PCI-E and what is the name of Power connector used on Graphics cards?
Asked by: Zappos
The 2x6pin PCI-E are used for the GUP's but you do only need one, unless you are having 2 GPU's installed (that would be overkill) The 4pin I do not use. and the q 8pin splits into two 4pins for the CPU (or alternatively stays as 8pin for the CPU
Answered by: Maxingitout
Date published: 2015-07-17

what accessories go with this?

Does it have a main plug and lead, and to confirm is it 15cm deep.
Asked by: Mario
Yes to both of these, the Power cord is also long enough for most places, I can't remember just how long but it suits my spacous room perfectly!
Answered by: Maxingitout
Date published: 2015-07-17
