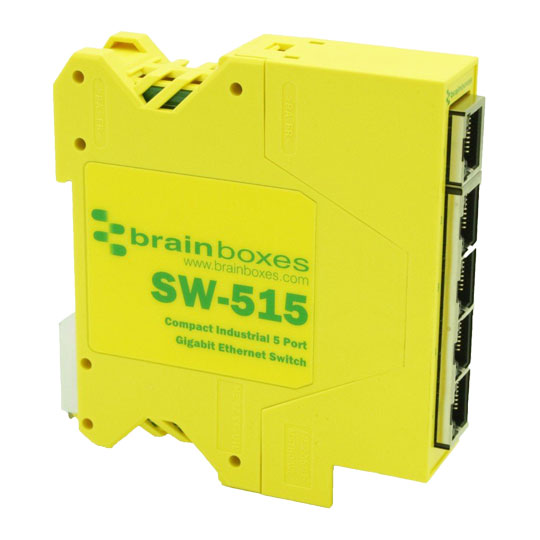

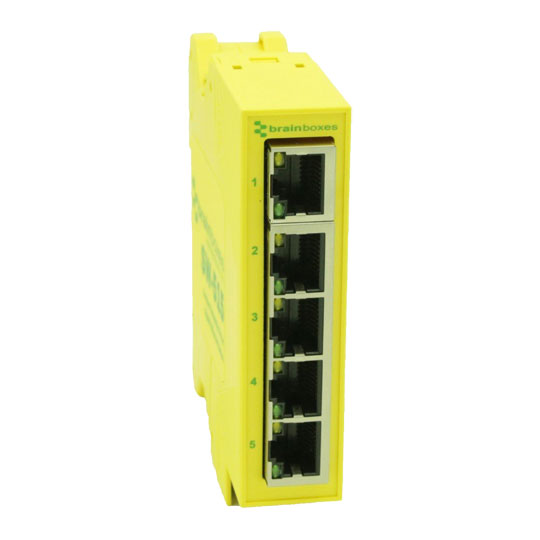

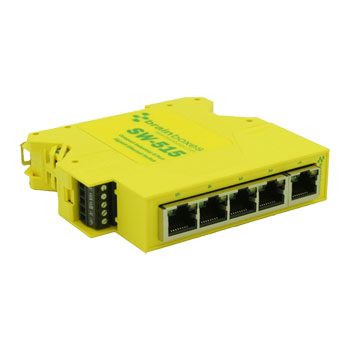

Brianboxes 5-Port Industrial Unmanaged Compact Gigabit Ethernet Switch

5-Port Brianboxes SW-515 Industrial Gigabit Ethernet Switch, Unmanaged, 5x 10/100/1000Mbps, Compact, DIN Rail Mountable

Thumbnail 1 : Brianboxes 5-Port Industrial Unmanaged Compact Gigabit Ethernet Switch Thumbnail 2 : Brianboxes 5-Port Industrial Unmanaged Compact Gigabit Ethernet Switch Thumbnail 3 : Brianboxes 5-Port Industrial Unmanaged Compact Gigabit Ethernet Switch Thumbnail 4 : Brianboxes 5-Port Industrial Unmanaged Compact Gigabit Ethernet Switch
Scan code: LN111964 Manufacturer code: SW-515
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
£79.99
Get it Tomorrow, 21 MayIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 23rd May to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

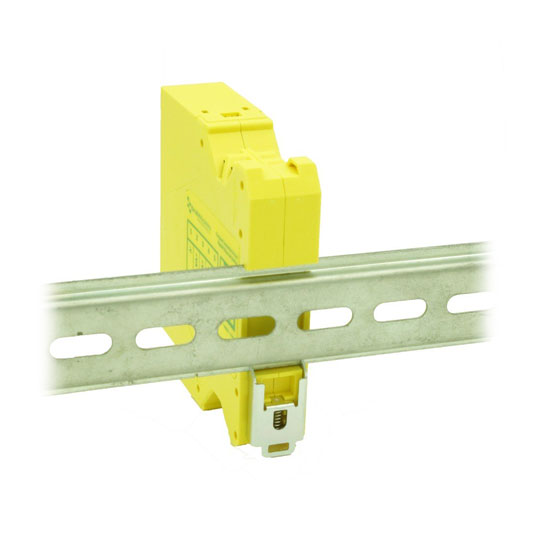

5-Port DIN Rail Mountable Industrial Gigabit Switch

Compact industrial 5 port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 23mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.

Features

• 5 Gigabit Ethernet ports.
• Wide voltage input range: +5V to +30V DC - can be powered by a variety of sources.
• Industrial operating temperature range: -40ºC to +80ºC/-40ºF to +176ºF - works in extreme conditions.
• Redundant dual power inputs - reduces risk of power outage.
• Small Footprint Case, only 23mm wide, 94mm deep.

Specifications
Edition Unmanaged Switch
Form Factor Rackmount
Total Network Ports 5 x 10/100/1000 (Gigabit) RJ-45
PoE Support Type N/A
No. of Ports Providing PoE
Other Non-Network Ports
Switching Capacity
Non-Blocking Throughput
Forwarding Rate
MAC Address Table Size
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols
Acoustic Noise 0 dB
Max. Power Consumption 3.6 W
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF)
Power Supply External Power Supply (Not-Included)
Material Plastic
Includes
Dimensions (WxHxD) 99 x 94 x 23 mm
Weight 0.191 kg
Additional Information
Scan Code LN111964
Model Number SW-515
GTIN 837324004281
