Brainboxes Hardened Industrial 5 Port Gigabit Ethernet Switch

5-Port Brianboxes SW-715 Hardened Industrial Gigabit Ethernet Switch, 5x 10/100/1000Mbps, Compact, DIN Rail Mountable

MORE INFO
MORE INFO
Thumbnail 1 : Brainboxes Hardened Industrial 5 Port Gigabit Ethernet Switch Thumbnail 2 : Brainboxes Hardened Industrial 5 Port Gigabit Ethernet Switch Thumbnail 3 : Brainboxes Hardened Industrial 5 Port Gigabit Ethernet Switch
Scan code: LN113974 Manufacturer code: SW-715
£106.99Item currently awaiting an ETA
Pre Order
Pre order
From £9.20 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £9.20
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £106.99
Total inc. interest: £110.34
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Brainboxes Industrial 5 Port Gigabit Ethernet Switch

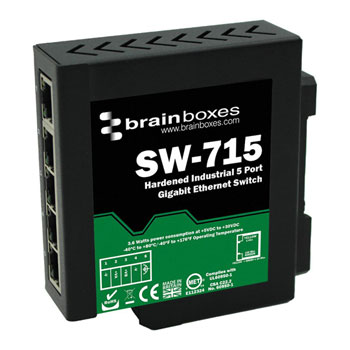

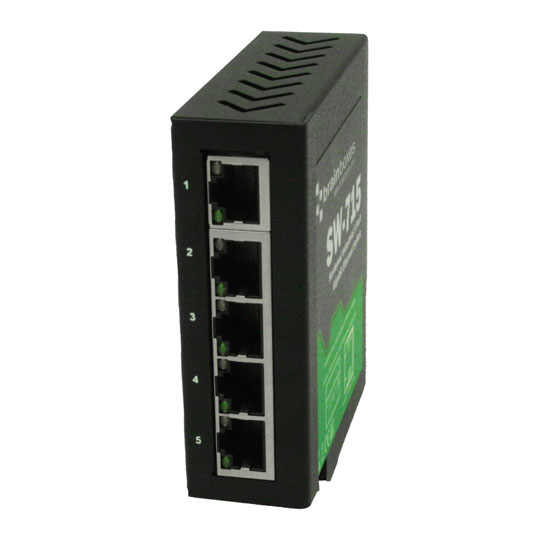

Compact industrial 5 Port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 29mm wide and 95mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.

Features

• 5 Port Hardened Gigabit Ethernet Switch
• Integrated DIN Rail Mount with grounding
• Wide voltage input range: +5V to +30V DC - can be powered by a variety of sources
• Redundant dual power inputs - reduces risk of power outage
• Compact Hardened Enclosure
• Industrial operating temp range -40°C to +80°C / -40°F to +176°F
Specifications
Edition Unmanaged Switch
Form Factor
Total Network Ports 5 x 10/100/1000 (Gigabit) RJ-45
PoE Support Type N/A
No. of Ports Providing PoE
Other Non-Network Ports
Switching Capacity
Non-Blocking Throughput
Forwarding Rate
MAC Address Table Size
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols
Acoustic Noise
Max. Power Consumption 3.6 W
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF)
Power Supply External Power Supply (Not-Included)
Material Plastic
Includes
Dimensions (WxHxD) 99 x 94 x 29 mm
Weight 0.191 kg
Additional Information
Scan Code LN113974
Model Number SW-715
GTIN 837324004298
