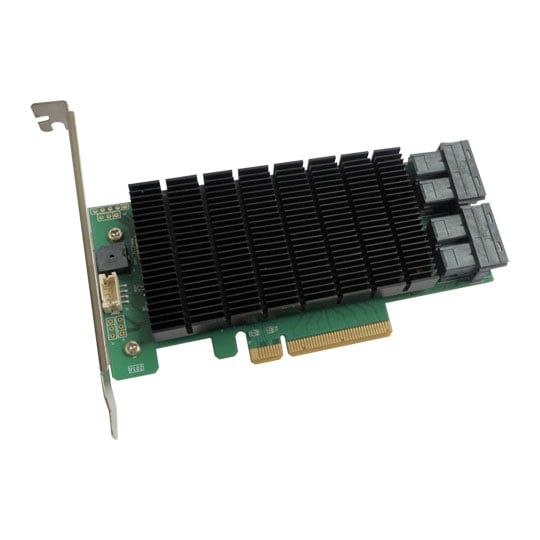

Highpoint RR2840C SAS/SATA 6Gb/s 4 Port RAID Controller

The Industry’s Most Price Competitive 16-Channel PCIe 3.0 SAS RAID Host Adapters

The RocketRAID 2800 Series host adapters are the world’s most price competitive 16-Channel SAS/SATA RAID controllers, and delivers unprecedented end-to-end Generation 3.0 PCI Express transfer performance with Professional class RAID Storage reliability and management capabilities.

Professional Class SAS 6Gb/s PCIe 3.0 RAID Solutions

RocketRAID 2800 Series host bus adapters capitalise on HighPoint’s two decades of RAID and storage technology to deliver professional grade RAID storage at a fraction of the cost of conventional host RAID solutions. Each adapter is powered by our industry proven RAID technology, superior Gen 3.0 PCIe express transfer bandwidth, and up to sixteen dedicated 6Gb/s SAS channels, which support robust, high-performance RAID 0, 1, 5, 6, 1/0, 5/0 and JBOD configurations of SAS or SATA hard drives of any disk format, including 512, 512e and 4Kn.
RocketRAID 2800 Series host bus adapters are designed to maximise the uptime and accessibility of RAID storage. RocketRAID storage and RAID recovery solutions enhance data retrieval from failed disks and streamline rebuild sessions.
The universal RocketRAID WebGUI interface provides a wide range of pre-emptive monitoring and maintenance features that enable administrators to easily schedule verification sessions to ensure the health of each RAID storage configuration.

Seamlessly Upgrade RAID Storage

RocketRAID 2800 Series host bus adapters deliver an unprecedented level of flexibility when it comes to storage configurations. Customers are free to expand or convert RAID storage configurations as needed to keep on top of the evolving demands of the storage application, without sacrificing existing data. Online Capacity Expansion (OCE) allows administrators to add new drives to existing arrays in order to expand available capacity. Online RAID Level Migration (ORLM) allows administrators to convert one RAID level to another in order to tune storage configurations for maximum performance or data security.
Arrays created with RocketRAID 2800 Series adapters are future-proof; Online RAID Roaming allows customers to move existing RAID arrays to other 2800 Series RAID controllers, in addition to all future HighPoint RAID products.
HighPoint offers a range of Customised Solution services for SMB Customers. We can tailor RocketRAID 2800 Series host bus adapters to meet the requirements of client defined storage applications across Linux, Windows and macOS platforms, and are ready to assist Solution Providers with unique product branding. A full API library is available for integration projects and we offer a variety of Enclosure Management services including SGPIO, SES-2 and I2C.

Multi-HBA Solution

HighPoint’s multi-HBA (host bus adapter) Non-RAID solution software packages are available for all major operating system platforms including Windows, Linux and macOS. The RocketRAID 2800 Series device driver enables up to four independent cards to work in unison, and effectively function as a single 64-channel 6G SAS host controller. This innovative approach to direct-attached mass storage connectivity allows customers to simplify the build process, streamline maintenance procedures, and provides dedicated SAS 6Gb/s point-to-point bandwidth for each connected device. The robust, versatile, device driver allows administrators to keep tabs on the operational status of each card and individual storage device via the intuitive web-based management interface.

• 16 Internal 6Gb/s SAS+SATA Channels.
• RocketRAID Data Recovery Solution increases chances of data retrieval from a failed drive.
• Maximizes RAID Array Accessibility.
• Fast Array set up enables immediate Availability.
• Robust RAID Monitoring and Management solution ready.
• Supports a wide-spectrum of Operating System Platforms.
