Scan code: LN115366 Manufacturer code: RR2720A

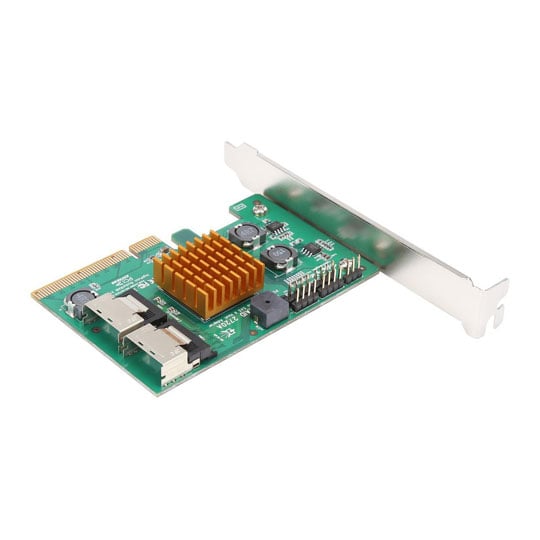

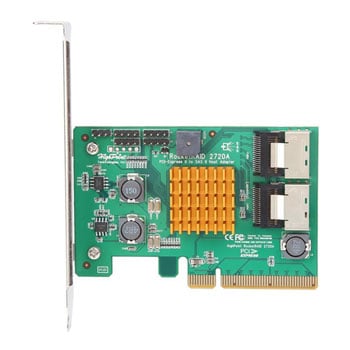

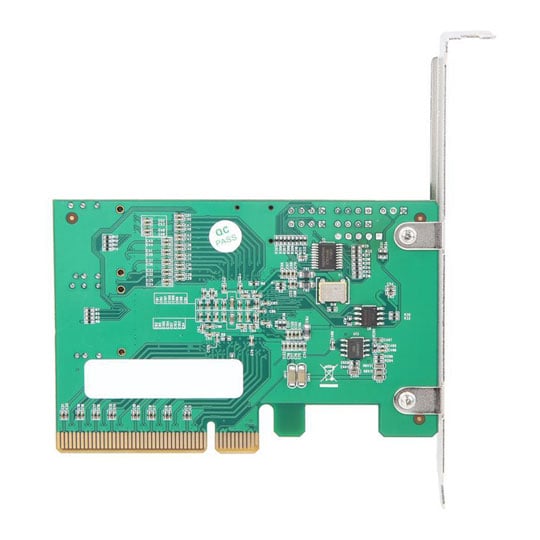

Highpoint RR2720A SAS/SATA 6Gb/s 2 Port RAID Controller

2 Port Highpoint RocketRAID RR2720A RAID Controller, PCI-E 2.0 x8, 8 Channel Mini-SAS (SFF-8087)/SATA III, Low Profile

Thumbnail 1 : Highpoint RR2720A SAS/SATA 6Gb/s 2 Port RAID Controller Thumbnail 2 : Highpoint RR2720A SAS/SATA 6Gb/s 2 Port RAID Controller Thumbnail 3 : Highpoint RR2720A SAS/SATA 6Gb/s 2 Port RAID Controller Thumbnail 4 : Highpoint RR2720A SAS/SATA 6Gb/s 2 Port RAID Controller
Scan code: LN115366 Manufacturer code: RR2720A
£179.99
Order now and get it tomorrow, Mon 18th Oct
From £16.16 / month (APR 14.9%)
Monthly Payment: £16.16
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £179.99
Total inc. interest: £193.91
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 18th Oct to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

HighPoint Turbo-RAID Technology

For over a decade, HighPoint has strived to take the cost and complexity out of RAID. We were the first to introduce affordable RAID 5 solutions to the storage marketplace, for both SMB and consumer applications. HighPoint Turbo RAID Products and Solutions are powered by our industry proven RAID stack, which leverages the powerful system resources and robust 2nd generation PCIe x8 host interface of today’s modern computing platforms. Turbo RAID Technology delivers the industry's best Cost-Performance value, and the industry's most affordableRAID-6 Storage Solutions. RocketRAID 272x/271x HBA's support a wide-range of storage configurations including RAID 0, 1, 5, 6, 10, 50, & JBOD.


Complete, Flexible Upgrade Paths

RocketRAID 2700 HBA's are fully backwards compatible with SAS/SATA 3Gb/s devices, PCI-Express 1.0 and 2.0 motherboards, and are compliant with all major operating systems including Windows, Linux and macOS.

RAID arrays can be freely moved to any other RocketRAID 2700 HBA. Upgrading, scaling and expanding storage has never been easier.

RocketRAID 2700 external-port HBA's were designed to work in conjunction with Rocket EJ Series SATA JBOD Expander and SAS-Expansion modules, which can dramatically expand the storage capability of each Mini-SAS connector.


Simple and Easy Storage Expansion

RocketRAID 2700 series HBA's allow customers to expand capacity and convert existing RAID arrays from one level to another without having to start from scratch: your data remains intact and accessible during the transition! OCE (Online Capacity Expansion) and ORLM (Online RAID Level Migration) features are provided by HighPoint's comprehensive and intuitive web-based user interface, which is available for all major operating systems including macOS, Windows 7, 8, 8.1, 10 and Linux Distributions.


Features


Port Type*: 2x SFF-8087 (Mini-SAS)
Number of Channels / Ports: 8x 6Gb/s SAS/SATA Channels
Number of Devices: 8x SAS /SATA Hard Drive / SSD
Bus Interface: PCIe 2.0 x8
Form Factor: Low Profile
RAID Mode**: 0, 1, 5, 6, 10, 50 and JBOD / non-RAID Mode
Operating System: Window Server 2008 and Window 7 and later, Linux, macOS 10.6 and later, Driver embedded into macOS 10.8 and later

*Note: RocketRAID 2700 Series external controllers were designed for use with HighPoint RocketStor 641x Series drive enclosures.
**Note: RAID 6 is not supported on macOS, Bootable RAID 6 is not supported

Specifications
Ports Total 2 Port
Ports Internal 2 Int Ports
Ports External 0 Ext Ports
Connectors 2 x SFF-8087
Interface PCIe 2.0 x8
JBOD Yes
RAID Support
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
  • RAID 50
  • RAID 6
Low Profile Compatible Yes
Cables Inc.
Cache Memory
Notes
Additional Information
Scan Code LN115366
Model Number RR2720A
GTIN 2034009018
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.
