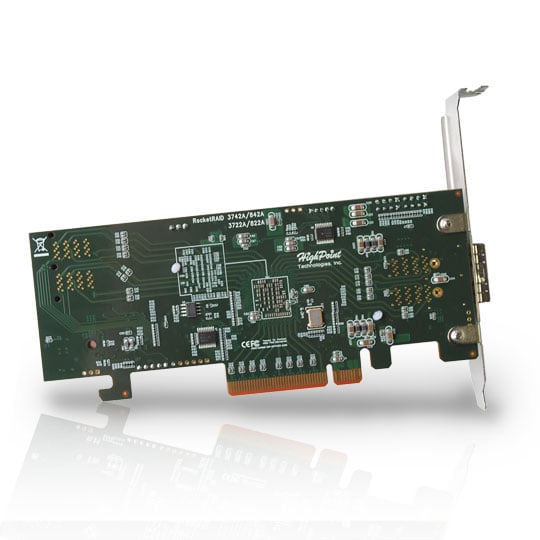

Highpoint  RocketRAID 3742A 8x Int, 8x Ext PCIe SATA/SAS 12GBs  RAID Controller
Highpoint RocketRAID 3742A 8x Int, 8x Ext PCIe SATA/SAS 12GBs RAID Controller
Scan code: LN104444 Manufacturer code: RR3742A
£439.99Item currently awaiting an ETA
Pre order
  • Thumbnail 1 : Highpoint  RocketRAID 3742A 8x Int, 8x Ext PCIe SATA/SAS 12GBs  RAID Controller
  • Thumbnail 2 : Highpoint  RocketRAID 3742A 8x Int, 8x Ext PCIe SATA/SAS 12GBs  RAID Controller
  • Thumbnail 3 : Highpoint  RocketRAID 3742A 8x Int, 8x Ext PCIe SATA/SAS 12GBs  RAID Controller
  • Thumbnail 4 : Highpoint  RocketRAID 3742A 8x Int, 8x Ext PCIe SATA/SAS 12GBs  RAID Controller

Highpoint RocketRAID 3742A 8x Int, 8x Ext PCIe SATA/SAS 12GBs RAID Controller

16 Port HighPoint RocketRAID 3742A, 8x Int. + 8x Ext. Channels, 12Gb/s, PCIe 3.0 x8, SAS/SATA RAID Controller

Scan code: LN104444 Manufacturer code: RR3742A
£439.99
£5.48 NEXT DAY DELIVERY
Item currently awaiting an ETA
Pre order

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £18.34 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £36.67
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £439.99
    Total inc. interest: £439.99
    Monthly Payment: £18.34
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £439.99
    Total inc. interest: £439.99
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • With a 10% deposit from just £11.69 / month (APR 19.9%)
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info
Product Overview

Professional Class SAS 12Gb/s RAID Solutions

RocketRAID 3700 series host bus adapters capitalize on HighPoint’s two decades of RAID and storage technology to deliver professional grade RAID storage at a fraction of the cost of conventional host RAID solutions. Each adapter is powered by our industry proven RAID technology, superior Gen 3.0 PCIe express transfer bandwidth, and up to sixteen dedicated 12Gb/s SAS channels, which support robust, high-performance RAID 0, 1, 5, 6, 1/0, 5/0 and JBOD configurations of SAS or SATA hard drives of any disk format, including 512, 512e and 4Kn. RocketRAID 3700 series host bus adapters are designed to maximize the uptime and accessibility of RAID storage. RocketRAID storage and RAID recovery solutions enhance data retrieval from failed disks and streamline rebuild sessions. The universal RocketRAID WebGUI interface provides a wide range of preemptive monitoring and maintenance features that enable administrators to easily schedule verification sessions to ensure the health of each RAID storage configuration.


Seamlessly Upgrade RAID Storage

RocketRAID 3700 adapters deliver an unprecedented level of flexibility when it comes to storage configurations. Customers are free to expand or convert RAID storage configurations as needed to keep on top of the evolving demands of the storage application, without sacrificing existing data. Online Capacity Expansion (OCE) allows administrators to add new drives to existing arrays in order to expand available capacity. Online RAID Level Migration (ORLM) allows administrators to convert one RAID level to another in order to tune storage configurations for maximum performance or data security. Arrays created with RocketRAID 3700 series adapters are future-proof; Online RAID Roaming allows customers to move existing RAID arrays to other 3700 series RAID controllers, in addition to all future HighPoint RAID products.


Customized Solution Services for SMB Customers

HighPoint offers a range of Customized Solution services for SMB Customers. We can tailor RocketRAID 3700 host bus adapters to meet the requirements of client defined storage applications across Linux, Windows and macOS platforms, and are ready to assist Solution Providers with unique product branding. A full API library is available for integration projects and we offer a variety of Enclosure Management services including SGPIO, SES-2 and I2C.


Multi-HBA Solution

HighPoint’s multi-HBA (host bus adapter) Non-RAID solution software packages are available for all major operating system platforms including Windows, Linux and macOS. The RocketRAID 3700 device driver enables up to four independent cards to work in unison, and effectively function as a single 64-channel 12G SAS host controller. This innovative approach to direct-attached mass storage connectivity allows customers to simplify the build process, streamline maintenance procedures, and provides dedicated SAS 12Gb/s point-to-point bandwidth for each connected device. The robust, versatile, device driver allows administrators to keep tabs on the operational status of each card and individual storage device via the RocketRAID 3700's intuitive web-based management interface.

Features
• Up to 16 Internal/External/Hybrid
• 12Gb/s SAS+SATA Channels
• RAID 0, 1, 5, 6, 1/0, 5/0, JBOD
• RocketRAID Data Recovery Solution
• increases chances of data retrieval from a failed drive.
• Maximizes RAID Array Accessibility
• Fast Array set up enables immediate
• Availability
• Robust RAID Monitoring and
• Management solution ready
• Supports a wide-spectrum of
• Operating System Platforms
Specifications
Ports Total 16 Port
Ports Internal 8 Int Ports
Ports External 8 Ext Ports
Connectors
  • 2 x SFF-8643
  • 2 x SFF-8644
Interface
JBOD No
RAID Support
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
  • RAID 50
Low Profile Compatible Yes
Cables Inc.
Cache Memory
Notes
Additional Information
Scan Code LN104444
Model Number RR3742A
GTIN 643653374212
