Scan code: LN114612 Manufacturer code: TS-1673AU-RP-16G

QNAP TS-1673AU-RP-16G 16 Bay Rackmount NAS Enclosure

16-Bay Qnap TS-1673AU-RP-16G, 3U, 2.Gbe, AMD V1500B, 16GB DDR4, 16x 2.5”/3.5” SATA III, 2x PCIE Gen3x4, USB 3.2 Gen2

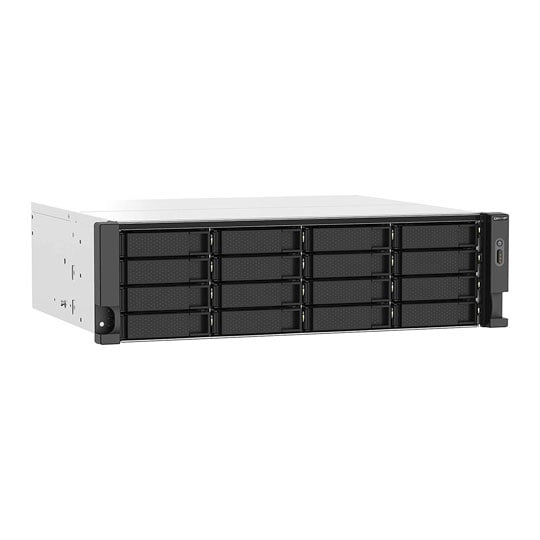

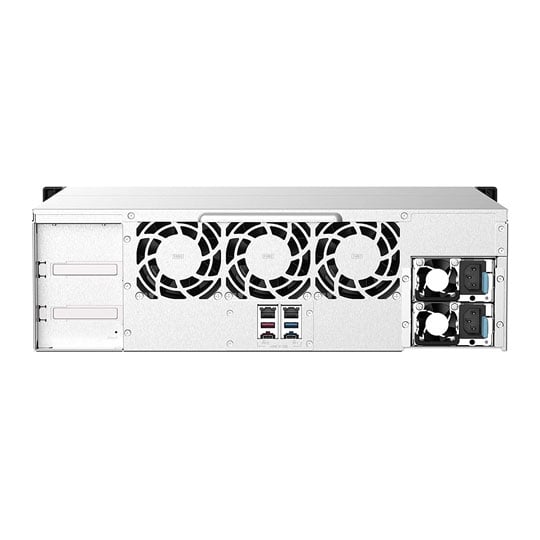

Thumbnail 1 : QNAP TS-1673AU-RP-16G 16 Bay Rackmount NAS Enclosure Thumbnail 2 : QNAP TS-1673AU-RP-16G 16 Bay Rackmount NAS Enclosure Thumbnail 3 : QNAP TS-1673AU-RP-16G 16 Bay Rackmount NAS Enclosure Thumbnail 4 : QNAP TS-1673AU-RP-16G 16 Bay Rackmount NAS Enclosure
Scan code: LN114612 Manufacturer code: TS-1673AU-RP-16G
£3,000.49Item currently awaiting an ETA
Pre order
From £81.95 / month (APR 14.9%)
Monthly Payment: £269.37
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £3,000.49
Total inc. interest: £3,232.35
Monthly Payment: £144.02
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £3,000.49
Total inc. interest: £3,456.50
Monthly Payment: £102.51
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £3,000.49
Total inc. interest: £3,690.17
Monthly Payment: £81.95
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £3,000.49
Total inc. interest: £3,933.49
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £74.94 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Product Overview

QNAP TS-1673AU-RP-16G 16 Bay Rack NAS Enclosure

With its powerful AMD Ryzen™ V1000 series V1500B Quad-core processor, the TS-1673AU-RP is capable of boosting virtual machine performance with up to 4 cores/8 threads at 2.2GHz. The TS-1673AU-RP includes two 2.5GbE ports and two PCIe Gen 3 slots, providing you with fast network connectivity and the ability to add extra functionality and additional application potential. The TS-1673AU-RP also features a redundant power supply to ensure maximum system uptime. Cutting-edge hardware integrated with comprehensive software solutions makes the TS-1673AU-RP the preeminent choice to tackle resource-demanding applications and tasks.


Absolute Performance with AMD Ryzen™ and up to 32GB RAM

Powered by a 4-core/8-thread AMD Ryzen™ V1500B 2.2GHz processor with AES-NI encryption acceleration and up to 32GB DDR4 RAM, the rackmount TS-1673AU-RP delivers aggressive yet power-smart performance to drive resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization.


Block-Based iSCSI LUN: Ideal Choice for Virtualization Storage

The TS-1673AU-RP supports block-based iSCSI LUN and is compatible for VMware®, Citrix®, Microsoft® Hyper-V®, and Windows Server® 2019 virtualization environments to provide a high-performance and affordable storage solution. The TS-1673AU-RP also supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting QNAP vSphere Client plug-in with enhanced operational efficiency and management in virtualization applications.


Optimized Performance for VMware Virtualization with iSER

The iSCSI Extensions for RDMA (iSER) protocol boosts the data transfer performance of VMware® ESXi storage and reduces the CPU load of the ESXi server. iSER support can be added to the TS-1673AU-RP by installing a QNAP QXG-10G2SF-CX4 10GbE PCIe card, which uses the NVIDIA® Mellanox ConnectX-4 controller. iSER can provide a significant increase in performance, providing an essential tool to optimize demanding virtualization applications.


All-In-One Server to Host Virtual Machines and Containers

Regardless of your virtualization needs, you can count on Virtualization Station and Container Station for complete virtualization support. Use the Network & Virtual Switch app to allocate adequate physical network resources to virtual machines, containers, and the TS-1673AU-RP to simplify network deployment.


Upgrade to 2.5GbE Networking

The TS-1673AU-RP comes with two 2.5GbE RJ45 LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. 5GbE speeds can also be attained by using Port Trunking.


Transform your Network with a Wallet-Friendly 2.5GbE Switch

Upgrading your network shouldn’t break the bank, and 2.5GbE connectivity provides immediately noticeable improvements compared to standard 1GbE. The QSW-1105-5T is an unmanaged switch with five 2.5GbE ports (backwards compatible with 1G/100M) and supports CAT5e cables to connect multiple computers and NAS. The QSW-1105-5T is energy-saving, low-noise, plug-and-use, and supports loop detection and blocking to provide a simple and effective high-speed network environment.


Abundant I/O Capabilities with PCIeEexpansion

The TS-1673AU-RP includes two PCIe Gen 3 x4 slots, allowing you to add additional functionality with compatible PCIe cards. By using a suitable adapter, you can consolidate both slots into a single PCIe Gen 3 x8 slot.


GPU-Accelerated Computing

Graphics cards are optimized for graphical calculations and transformations, but require significantly more power than other hardware. The TS-1673AU-RP supports entry-level low-profile NVIDIA® GeForce® graphics cards (such as the GT 1030 or GT 1050) that do not require additional power. Installing a graphics card can boost performance of applications such as video editing, 4K video transcoding, imaging processing in QTS and the performance of virtual machines via GPU passthrough.


Accelerate IOPS Performance with SSD Caching

Adding an SSD cache to the TS-1673AU-RP is an easy way to increase IOPS performance and reducing storage volume latency. It is perfect for IOPS-demanding applications (including databases and virtualization) and can significantly improve overall workflows. You can launch, stop, or change settings to meet your needs at any moment without shutting down the system.


Optimum Performance and Reliability

The TS-1673AU-RP supports advanced business features to provide maximized efficiency, performance, and to ensure round-the-clock services.

• USB 3.2 Gen 2: USB 3.2 Gen 2 (10Gbps) provides speeds up to 10Gb/s (double the speed of USB 3.2 Gen 1) to greatly boost data transfer performance. It comes with two USB 3.2 Gen 2 Type-C and a Type-A port, providing greater flexibility and ensuring future-proof compatibility with new USB devices.
• Central Device Management: QRM+ provides a single-point solution to discover, map, monitor and manage all Windows®, Linux® and IPMI devices in your network, and facilitates device discovery with a graphical topology diagram.
• Central NAS Management: Q’center provides a central management platform to manage multiple QNAP NAS across various sites, monitor system logs, and manage NAS updates and maintenance.


Move Business Data to the Cloud Flexibly and Economically

By deploying cloud storage gateways and enabling local caching on the TS-1673AU-RP, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.


Complete Backup Planning

The TS-1673AU-RP provides reliable and cost-effective solutions for backup and disaster recovery planning.

• HBS: Consolidates backup, restoration and synchronization functions (using RTRR, Rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan.
• Snapshots for Volume & LUN: Snapshots are essential for NAS data protection, and their block-level feature makes them a dependable data protection method in the face of growing ransomware threats. The TS-1673AU-RP supports up to 256 snapshots per volume/LUN, and up to 1,024 snapshots per NAS.
• VM backup: With its high performance, huge storage potential, integrated virtualization solutions, and snapshot support that records system status any time, the TS-1673AU-RP is perfect for backing up virtual machines.
• Windows® and Mac® backup: Use the license-free QNAP NetBak Replicator utility to back up and restore files from Windows® computers. Time Machine® is also supported for backing up Mac® computers.


High-speed VM Backup Solution

With Hyper Data Protector, the TS-1673AU-RP becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression that provides you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.


Build an affordable Fibre Channel SAN environment

Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing a QNAP 16Gb Fibre Channel card (QXP-16G2FC 16Gb) in the TS-1673AU-RP, you can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.

Features


• Both 2.5GbE ports are backwards compatible with 1GbE/ 100MbE/ 10MbE speeds. Up to 5 Gbps transfer speeds can be achieved by using port trunking.
• Add extra functionality to the TS-1673AU-RP with PCIe cards, including 10GbE ports, SSD caching, extra USB 3.2 Gen 2 ports, wireless networking, or Fibre Channel.
• Supports entry-level NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.
• Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.
• Host multiple virtual machines and containers to run a wide range of applications on the TS-1673AU-RP.
• Supports block-based and file-based cloud storage gateways with local caching for low-latency access to cloud data.

Specifications
Edition TS-1673AU-RP-4G
NAS Form Factor 3U Rackmount
Bays 16 Bay
Total Storage Included N/A
Type of Drives Included
Edition of Drives Included
Capacity of Drives Included
Max. Storage Capacity
Drive Interface Support 16 x SATA III - 6Gb/s
Drive Form Factor Support 16 x 2.5"/3.5"
Internal Flash Memory Yes
Internal Flash Memory Capacity 5GB
DOM Module No
DOM Capacity
CPU Type AMD
CPU Model V1500B
CPU Cores Quad Core
CPU Speed 2.2 GHz
RAM Memory Included 16GB (1x16GB)
RAM Memory Type UDIMM
Max. RAM Memory Supported 64GB (2x32GB)
Cache Drive Interface
Included Cache Drive Capacity
Included Cache Drive Type
LAN Type 10/100/1000/2500
Expansion Slots 2 x PCIe 3.0 x4
External Connectivity
  • 2 x RJ45
  • 2 x USB 2.0
  • 1 x USB 3.2 Gen 1
  • 1 x USB 3.2 Gen2 Type-A
  • 2 x USB 3.2 Gen2 Type-C
Cooling Fan
Noise Level 23 - 47.9 dB(A)
PSU Type
PSU Wattage 2x 550W W
Max. Power Consumption 97.34 W
Physical Security
Dimensions 482 x 132 x 425 (WxHxD mm)
Weight 17.15 kg
Additional Information
Scan Code LN114612
Model Number TS-1673AU-RP-16G
GTIN 4713213517895
