Scan code: LN123860 Manufacturer code: NF-A12X15-PWM-CH-BK-S

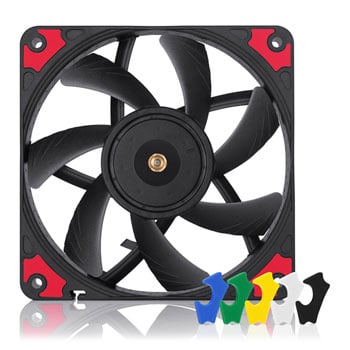

Noctua 120mm NF-A12x15 PWM CHROMAX Airflow Fan with Swappable Anti-Vibration Pads

120mm Noctua NF-A12x15 PWM chromax.black.swap, 7 Blade, High Airflow Fan, 450-1850rpm, SSO2, Swappable Pads, 4-pin

Thumbnail 1 : Noctua 120mm NF-A12x15 PWM CHROMAX Airflow Fan with Swappable Anti-Vibration Pads Thumbnail 2 : Noctua 120mm NF-A12x15 PWM CHROMAX Airflow Fan with Swappable Anti-Vibration Pads Thumbnail 3 : Noctua 120mm NF-A12x15 PWM CHROMAX Airflow Fan with Swappable Anti-Vibration Pads
Scan code: LN123860 Manufacturer code: NF-A12X15-PWM-CH-BK-S
Order now and get it tomorrow, Mon 23rd May
£21.98
Get it Tomorrow, 23 MayIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 23rd May to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

chromax.black.swap

Having received dozens of awards and recommendations from international hardware websites and magazines, the NF-A12x15 has established itself as a default choice when it comes to premium-quality slim 120mm fans. The chromax.black.swap edition combines the NF-A12x15’s signature quiet cooling performance with an attractive all-black design and a bundle of self-adhesive red, white, blue, green, yellow and black anti-vibration pads that allow the colour-customisation of the fan to match individual build colour schemes. Topped off with Noctua’s trusted premium-grade SSO2 bearing, more than 150,000 hours MTTF and 6-year manufacturer’s warranty, the NF-12x15 PWM chromax.black.swap is the perfect choice for all users who value individual, focused build aesthetics just as much as class-leading quality and performance.

Features

Award-winning NF-A12x15 design: Having received dozens of recommendations from the international press, Noctua’s NF-A12x15 has become a proven premium choice for slim 120mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.
chromax.black.swap Edition: Maximising colour choices, the NF-A12x15 chromax.black.swap fan can be colour-customised using the included self-adhesive anti-vibration pads as well as optional coloured cables. This makes it ideal for enthusiasts looking for a true premium-grade fan that can be colour-coordinated with popular build themes such as all black, black & white or black & red.

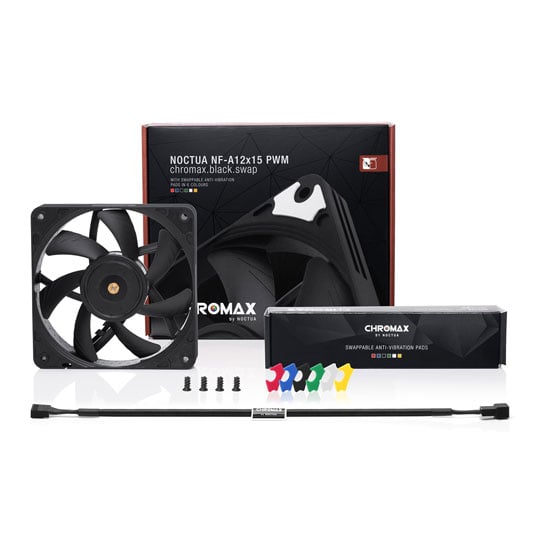

Self-Adhesive Anti-Vibration Pads in 6 Colours: The NF-A12x15 PWM chromax.black.swap comes with 8 swappable, self-adhesive anti-vibration pads in black, white, red, blue, green and yellow respectively, which allow the fan to be fully colour-customised in order to coordinate it with other components or popular build schemes.
Optional Coloured Cables: Noctua’s chromax line fans use a modular cabling system and come pre-fitted with a fully sleeved black NA-EC1 30cm cable. For refined colour coordination, white, red, blue, green and yellow 30cm NA-EC1 cables plus corresponding NA-YC1 y-cables are available separately.
15mm Slim Design: Having a thickness of only 15mm, the NF-A12x15 is much slimmer than standard 120x25mm fans. This makes it ideal for typical slim fan applications such as low-profile CPU coolers as well as for freeing up space by replacing standard 120x25mm fans on tower coolers, radiators or in PC cases.
Metal-Reinforced Motor Hub: With many larger-diameter slim fan designs, the shorter axis and bearing lead to a reduced running stability and lifespan. The NF-A12x15 uses a metal-reinforced motor hub, a measure typically found in high-speed industrial fans, in order to guarantee Noctua’s signature stability and longevity.
Flow Acceleration Channels: The NF-A12x15 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
AAO Frame: Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Stepped Inlet Design: Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures: With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
SSO2 Bearing: The NF-A12x15 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Custom-Designed PWM IC with SCD: Supporting fully automatic PWM speed control, the fan uses Noctua's custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.
Stops at 0% PWM: When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow.

Specifications
Pack Information
Edition NF-A12x15 chromax.black.swap
Pack Type Single (1) Fan Standalone Pack
Includes 1 x 120mm Fan/s
Individual Fan Specifications
Fan Diameter 120mm
Fan Depth 15 mm
Fan Speed 450 ~ 1850 rpm
Fan Blades 7
PWM Yes
Fan Specialization High Airflow
Airflow 94.2 CFM
Air Pressure 1.53 mm H²O
Sound Level (dBA) 23.9 dBA
Sound Level (Sone)
Motor Type
Bearing Type SSO2
Manual Speed Controller No
Material
Fan Colour Black
LED Yes
LED Colour N/A
MTBF 150,000 Hours
Fan Fixing Screw Fixing
Cable length 10 + 300 mm
Connectors 1 x 4-pin
Additional Information
Scan Code LN123860
Model Number NF-A12X15-PWM-CH-BK-S
GTIN 9010018100464
