Scan code: LN104625 Manufacturer code: NF-A12x15-PWM

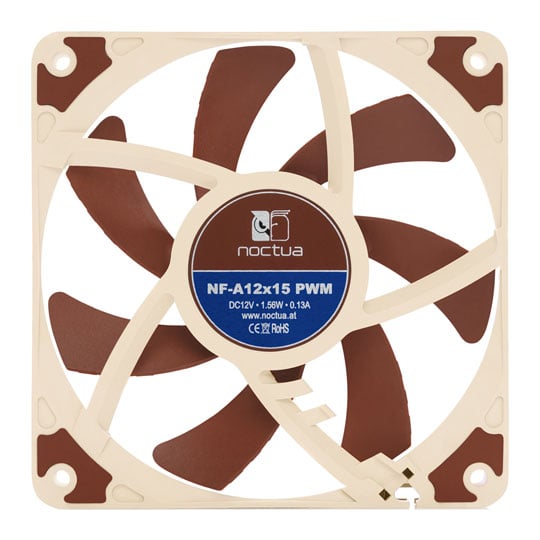

Noctua NF-A12x15 PWM 120mm Beige/Brown Slim-line Fan

120mm Noctua NF-A12x15 PWM, Beige/Brown, Slim-line, 9 Blade, SSO2 Bearing, 1850RPM, 55.4CFM Airflow, 23.9dB, 4-pin PWM

Thumbnail 1 : Noctua NF-A12x15 PWM 120mm Beige/Brown Slim-line Fan Thumbnail 2 : Noctua NF-A12x15 PWM 120mm Beige/Brown Slim-line Fan Thumbnail 3 : Noctua NF-A12x15 PWM 120mm Beige/Brown Slim-line Fan Thumbnail 4 : Noctua NF-A12x15 PWM 120mm Beige/Brown Slim-line Fan
Scan code: LN104625 Manufacturer code: NF-A12x15-PWM
£17.48
Order now and receive it between 9th Apr and 15th Apr
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 9th Apr To 15th Apr to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

15mm Slim Design

Having a thickness of only 15mm, the NF-A12x15 is much slimmer than standard 120x25mm fans. This makes it ideal for typical slim fan applications such as low-profile CPU coolers as well as for freeing up space by replacing standard 120x25mm fans on tower coolers, radiators or in PC cases.


Metal-Reinforced Motor Hub

With many larger-diameter slim fan designs, the shorter axis and bearing lead to a reduced running stability and lifespan. The NF-A12x15 uses a metal-reinforced motor hub, a measure typically found in high-speed industrial fans, in order to guarantee Noctua’s signature stability and longevity.


Flow Acceleration Channels

The NF-A12x15 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.


AAO Frame

Noctua’s AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua’s proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan’s performance/noise efficiency.


Stepped Inlet Design

Noctua’s Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.


Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.


Integrated Anti-Vibration Pads

Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.


Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the fan uses Noctua’s custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.


Low-Noise Adapter

The NF-A12x15 PWM is supplied with a (L.N.A.) that reduces the maximum fan speed from 1850 to 1400rpm. The L.N.A. can be used either to run the fan at a fixed speed of 1400rpm or to cap the maximum speed when using automatic PWM control.


Extensive Cabling Options

The fan’s short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows the connection of a second fan to the same PWM fan header for automatic control.


SSO2 Bearing

The NF-A12x15 features the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.


6-Year Manufacturer’s Warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A12x15 features an MTTF of more than 150.000 hours rating and comes with a full 6-year manufacturer’s warranty.


Features
• Award-winning Noctua quality in a 120mm x 15mm fan.
• Noctua’s AAO (Advanced Acoustic Optimisation).
• Integrated Anti-Vibration Pads.
• Six year manufacturer warranty.
• From 41.7 CFM, 16.8 dBA at 1400 RPM.
Specifications
Pack Information
Edition NF-A12x15 PWM
Pack Type Single (1) Fan Standalone Pack

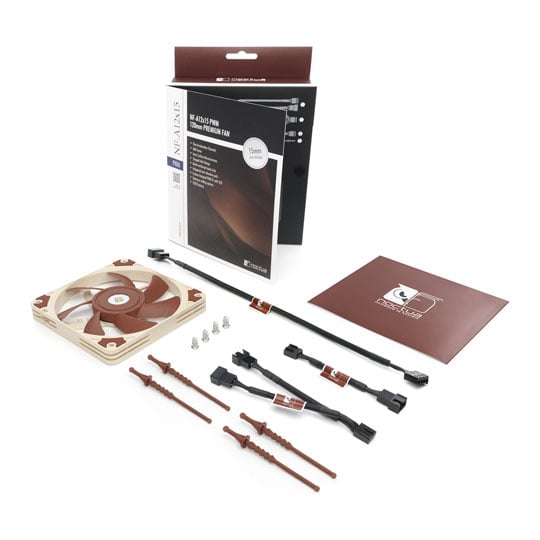

Includes
  • 1 x 120mm Fan/s
  • 4 x Fan Mounting Screws
Individual Fan Specifications
Fan Diameter 120mm
Fan Depth 15 mm
Fan Speed 450 - 1850 rpm
Fan Blades 7
PWM Yes
Fan Specialization Inaudible Airflow
Airflow 55.4 CFM
Air Pressure 1.53 mm H²O
Sound Level (dBA) 23.9 dBA
Sound Level (Sone)
Motor Type
Bearing Type SSO2
Manual Speed Controller No
Material Plastic / Rubber
Fan Colour Beige/Brown
LED No
LED Colour
MTBF 150000 Hours
Fan Fixing
  • Push-pin Fixing
  • Rubber Fan Mounts
  • Screw Fixing
Cable length 200 mm
Connectors 1 x 4-pin
Additional Information
Scan Code LN104625
Model Number NF-A12x15-PWM
GTIN 9010018100082
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
72 months
Type:
Direct
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Noctua
