Scan code: LN100625 Manufacturer code: SA3400

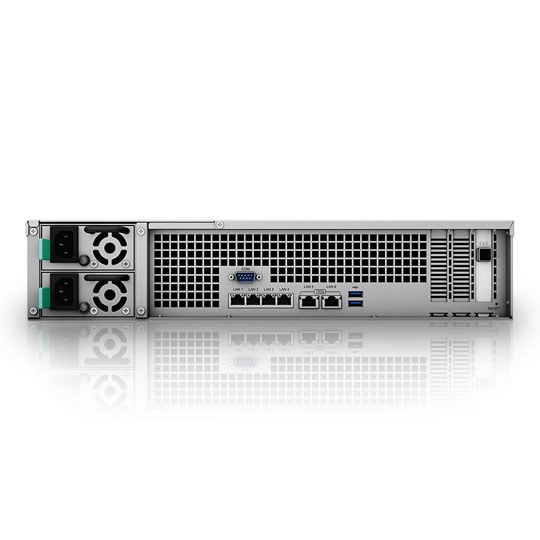

Synology 12 Bay NAS Rack Enclosure

12 Bay Synology SA3400 NAS Rack Enclosure, 16GB DDR4 RAM, Intel Xeon, 1/10GbE, PCIe 3, USB 3

Thumbnail 1 : Synology 12 Bay NAS Rack Enclosure Thumbnail 2 : Synology 12 Bay NAS Rack Enclosure Thumbnail 3 : Synology 12 Bay NAS Rack Enclosure Thumbnail 4 : Synology 12 Bay NAS Rack Enclosure
Scan code: LN100625 Manufacturer code: SA3400
£5,999.99Item currently awaiting an ETA
Pre order
From £288.00 / month (APR 14.9%)
Monthly Payment: £1,041.14
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £5,999.99
Total inc. interest: £6,246.81
Monthly Payment: £538.64
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £5,999.99
Total inc. interest: £6,463.66
Monthly Payment: £371.41
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £5,999.99
Total inc. interest: £6,685.28
Monthly Payment: £288.00
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £5,999.99
Total inc. interest: £6,911.76
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £149.85 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

Highly Scalable Storage With Uncompromising Performance

Equipped with an 8-core CPU and 16GB ECC RDIMM memory, SA3400 delivers sequential throughput at over 5,520 MB/s and 304,277 random IOPS1. Built-in 10GbE Ethernet, PCIe expansions, and the support for both SAS and SATA drives provide resilient configurability with fast data transmission, fulfilling modern enterprises' needs for excellent performance and massive storage scalability simultaneously.


Small-to-hyperscale Flexibility

Scalable up to 180/96 drives delivering more than 1.5 petabytes raw capacity, SA3400 can easily fulfill extensive storage needs, including video post-production and massive surveillance deployment.


Supercharge Network Performance Effortlessly

Built-in dual 10GbE Ethernet ports and dual PCIe 3.0 slots provide high-speed network transmission with additional network interface cards' expansion.


Btrfs: Next Generation Storage Efficiency

Btrfs file system introduces the most advanced storage technologies to meet the management needs of modern, large-scale businesses. Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders. Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots. File or folder level data restoration makes data recovery fast and flexible. Automatic file self-healing detects and recovers corrupted files without user intervention.


Ultimate Backup Solution

SA3400 integrates various backup applications into an intuitive user interface, offering durable storage technologies to safeguard your valuable data on any device.


Active Backup for Business

Centralize backup tasks for VMware, Windows, and file servers. Restore whatever you want fast and reliably when needed.


Hyper Backup

Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.


Synology Drive

Safeguard your computer with Synology Drive Client. Effortlessly perform real-time data backups and point-in-time file recovery.


Active Backup for Office 365 / G Suite

On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.


Fully Certified Storage Virtualization Solutions

Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.


Synology Drive

A versatile solution for file management and synchronization.


Synology MailPlus

Secure, reliable, and private mail server solution with an intuitive and modern mail client.


Surveillance Station

Complete surveillance solution for recording, monitoring, and management.


Active Backup Suite

Integrated, modern, and license-free backup & instant recovery solution for VMware, Windows, Office 365, and G Suite.


Synology High Availability

Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.


Hyper Backup

Store multiple backup versions with block-level incremental data backup and cross-version deduplication.

Features
• A highly scalable rackmount NAS to aptly accommodate large businesses' needs for scalability, suitable for video post-production and massive surveillance deployment.
• TCO-optimized storage companion, offering various and flexible support for both SAS and SATA drives Scale up to 180/96 drives when connected with 7 RX2417sas/RX1217sas1.
• Built-in dual 10GbE and quad 1GbE ports with failover and Link Aggregation support.
• Elastic expandability with dual PCIe 3.0 x8 slots for installing additional 10/25GbE network interface cards Effortless data protection for your physical server, virtual machines, and cloud services through Synology Active Backup Suite.
• Advanced iSCSI storage supports various virtualization deployment, including VMware vSphere®, Windows Hyper-V®, Citrix XenServer®, and OpenStack Cinder.
Specifications
Edition SA3400
NAS Form Factor 2U Rackmount
Bays 12 Bay
Total Storage Included N/A
Type of Drives Included
Edition of Drives Included
Capacity of Drives Included
Max. Storage Capacity 192 TB
Drive Interface Support 12 x SATA III - 6Gb/s
Drive Form Factor Support 12 x 2.5"/3.5"
Internal Flash Memory No
Internal Flash Memory Capacity
DOM Module No
DOM Capacity
CPU Type Intel Xeon
CPU Model D-1541
CPU Cores 8 Core
CPU Speed 2.1 GHz
RAM Memory Included 16GB (1x16GB)
RAM Memory Type DDR4 ECC
Max. RAM Memory Supported 128GB (4x32GB)
Cache Drive Interface
Included Cache Drive Capacity
Included Cache Drive Type
LAN Type 1GbE + 10GbE
Expansion Slots 2 x PCIe 3.0 x8
External Connectivity
  • 1 x Expansion Port
  • 6 x RJ45
  • 2 x USB 3.0
Cooling Fan
Noise Level 49.8 dB(A)
PSU Type Redundant
PSU Wattage 500 W
Max. Power Consumption 137.17 W
Physical Security
Dimensions 482 x 88 x 724 (WxHxD mm)
Weight 14.5 kg
Additional Information
Scan Code LN100625
Model Number SA3400
GTIN 4711174723430
