Synology SA3200D 12 Bay 2U Dual Server NAS
Synology SA3200D 12 Bay 2U Dual Server NAS
Scan code: LN105300 Manufacturer code: SA3200D
£7,321.99Stock arrives 1-2 days from time of order
ETA 1-2 days
  • Thumbnail 1 : Synology SA3200D 12 Bay 2U Dual Server NAS
  • Thumbnail 2 : Synology SA3200D 12 Bay 2U Dual Server NAS
  • Thumbnail 3 : Synology SA3200D 12 Bay 2U Dual Server NAS
  • Thumbnail 4 : Synology SA3200D 12 Bay 2U Dual Server NAS

Synology SA3200D 12 Bay 2U Dual Server NAS

12 Bay Synology SA3200D, 2U Dual Server NAS, 8GB DDR4 RAM, Intel Xeon D-1521, 1/10GbE, PCIe 3, SAS

Scan code: LN105300 Manufacturer code: SA3200D
£7,321.99
Stock arrives 1-2 days from time of order
ETA 1-2 days
  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • From £152.55 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £610.17
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £7,321.99
    Total inc. interest: £7,321.99
    Monthly Payment: £305.09
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £7,321.99
    Total inc. interest: £7,321.99
    Monthly Payment: £203.39
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £7,321.99
    Total inc. interest: £7,321.99
    Monthly Payment: £152.55
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £7,321.99
    Total inc. interest: £7,321.99
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • With a 10% deposit from just £194.57 / month (APR 19.9%)
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

Maximize Service Availability, Minimize Downtime

Synology SA3200D features a dual controller architecture to ensure operations and core business functions are not severely impacted by a disaster or unplanned incident that take critical systems offline. The hardware redundancy mechanism leverages controllers, power supplies, and fans to prevent a single point of failure. Powered by the intuitive and feature-rich operating system DiskStation Manager (DSM), SA3200D provides comprehensive protection for network, file services, and applications.


Designed with High Availability and Scalability

Synology SA3200D is a cost-effective yet highly available data management solution for enterprises, with a competitive price-performance ratio of $0.05 per gigabyte. Underneath the 2U chassis are dual controller modules in an active-passive architecture, each connected to the other by the reliable, high-speed Non-Transparent Bridge (NTB) with low latency. Service continuity is also backed up by the hardware redundancy mechanism of modularized power supplies and fans to prevent a single point of failure.


With SA3200D, you can start small and grow in the future. It supports up to 12 x 3.5"/2.5" SAS interface drive slots by default, and the capacity can be further scaled up to 576 TB using two RXD1219sas expansion units, with minimal performance impact. Data replication is not needed for the shared storage design, saving valuable rack space and network bandwidth when compared with two devices using Synology High Availability.

Real-Time Protection with Automatic Failover

With an active-passive design consisting of dual controller modules and the built-in Synology High Availability (SHA) service, SA3200D is built to provide a real-time, system-level protection to maximize service availability. It actively monitors network status and critical file services of CIFS, iSCSI, AFP, FTP, NFS, and Synology Directory Server. Once a controller module or the service is unavailable, the system will fail over automatically within a minute to minimize system interruption and ensure service continuity.


Easy to Deploy, Easy to Manage

SA3200D is designed to help IT administrators easily deploy and manage a highly available data management infrastructure. The system features straightforward, wizard-based GUI setup processes that allow you to build up a highly available service environment within minutes. Service status monitoring is made easy and intuitive.
Powered by DiskStation Manager (DSM), an intuitive, user-friendly web-based operating system across Synology hardware platforms, SA3200D provides IT administrators a unified user experience without the need to adapt to different user interfaces and complex configuration settings. With a full suite of software applications supported in the Package Centre, you can download and install a variety of packages including backup, data protection, and virtualization.


Built for your SAN Storage Needs

Synology SA3200D provides a fully certified virtualization solution with VMware® vSphere™, Microsoft® Hyper-V®, Citrix® XenServer™, and OpenStack Cinder. It supports both iSCSI and NFS protocols and integrates with VMware VAAI and Microsoft ODX, allowing IT administrators to effectively deploy and facilitate storage operations in various virtualization environments. IT administrators can efficiently manage virtualized workloads through built-in DSM features and add-on plugins for VMware and Windows environments. Features including fast clone, NFS v4.1, and thin provisioning delivers more flexibility to accommodate to administration needs.
With no additional license fees required, your virtualized workload can be further protected by a complete suite of data protection applications including Synology Snapshot Replication, Hyper Backup, and Active Backup for Business to cover various protection scenarios.


Virtualize Workloads Flexibly in a Protected Environment

Synology Virtual Machine Manager (VMM) is an intuitive hyper-visor software application allowing you to easily set up virtual machines and run various operating systems, including Windows, Linux, and Virtual DSM. By integrating the computing and the storage nodes into one system, single vendor support experience is achieved to lower the management cost.
With VMM, each virtual machine can be fully protected by a set of disaster recovery features including instant snapshot, replication, clone, and restore, safeguarding your virtual machines without additional cost.

Features

• Active-passive dual controller design in a single chassis, maximizing service availability with minute-level failover time.
• Highly available infrastructure with a competitive price-performance ratio of US$0.05 per gigabyte.
• A scalable shared storage architecture of more than 500 TB raw capacity with minimal performance impact.
• Automatic failover mechanism, protecting services in real-time and prevent a single point of failure.
• Easy to deploy and manage data services intuitively with DiskStation Manager (DSM), providing a unified experience across Synology platforms and support comprehensive software applications.
• Certified virtualization solution with license-free workload protection.

Specifications
Edition SA3200D
NAS Form Factor 2U Rackmount
Bays 12 Bay
Total Storage Included N/A
Type of Drives Included
Edition of Drives Included
Capacity of Drives Included
Max. Storage Capacity 192 TB
Drive Interface Support 12 x SAS
Drive Form Factor Support 12 x 2.5"/3.5"
Internal Flash Memory No
Internal Flash Memory Capacity
DOM Module No
DOM Capacity
CPU Type Intel Xeon
CPU Model D-1521 (Per Controller)
CPU Cores Quad Core
CPU Speed 2.4 GHz
RAM Memory Included 16GB (2x8GB)
RAM Memory Type
Max. RAM Memory Supported 128GB (8x16GB)
Cache Drive Interface
Included Cache Drive Capacity
Included Cache Drive Type SSD
LAN Type 1GbE + 10GbE
Expansion Slots 2 x PCIe 3.0 x8

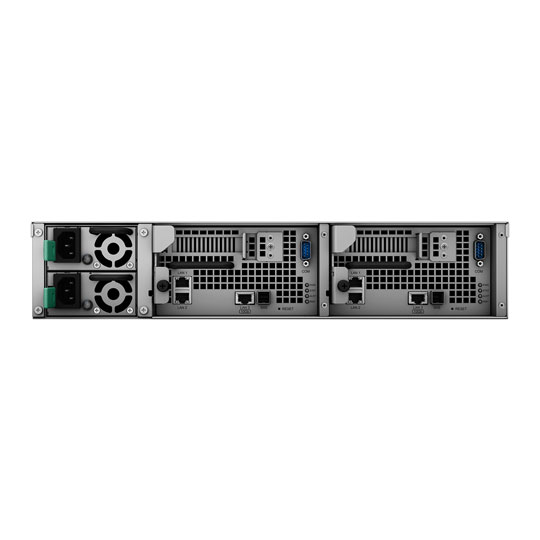

External Connectivity
  • 2 x Console Port
  • 1 x Expansion Port
  • 4 x GbE (RJ45)
  • 2 x LAN (10 G-bit)
Cooling Fan
Noise Level 51.3 dB(A)
PSU Type Redundant
PSU Wattage 500 W
Max. Power Consumption 417.48 W
Physical Security
Dimensions 430.5 x 88 x 692 (WxHxD mm)
Weight 19.7 kg
Additional Information
Scan Code LN105300
Model Number SA3200D
GTIN 4711174723713
