Synology 12 Bay 2U Rackmount Expansion Unit RX1217RP

12 Bay Synology RX1217RP Expansion Unit, 2U Rackmount, 12x 2.5"/3.5" HDD/SSD Drive Bays, Redundant PSU, Hot Swappable

Synology
Scan code: LN74723 Manufacturer code: RX1217RP Request call
£1,795.49Item currently awaiting an ETA
Pre order
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout
Product Overview RX1217/RX1217RP - Scale up your RackStation in a breeze
Synology gives you the flexibility to start with a smaller storage capacity and expand as your business starts to grow. RX1217 and RX1217RP are 12-bay storage expansion units designed to provide seamless capacity expansion for select Synology RackStations.

Product Highlights:
• Plug-n-use design for seamless storage space upgrade.
• Online volume expansion on the fly.
• Redundant power supplies ensure service uptime (RX1217RP only).
• Managed from Synology DiskStation Manager (DSM).
Features Expansion Unit RX1217/RX1217RP
Synology Expansion Unit RX1217/RX1217RP delivers an effortless solution for data volume expansion and data backup for Synology 2U RackStation NAS. With additional 12 drive bays, RX1217/RX1217RP seamlessly expands the storage capacity of the connected Synology NAS on-the-fly. Synology RX1217/RX1217RP is backed with Synology’s 5-year limited warranty.

Volume expansion & backup

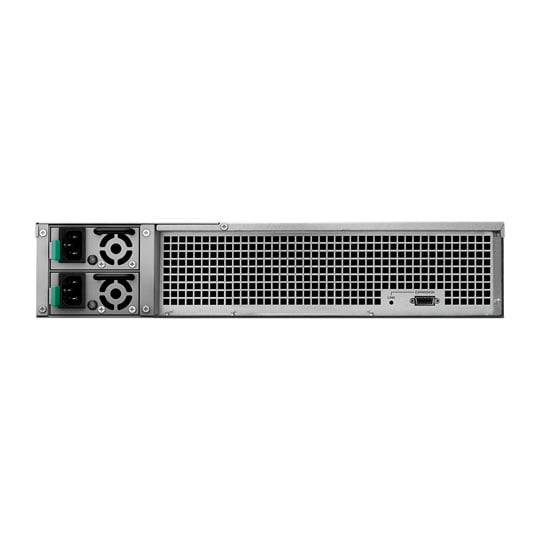

When drive capacity is running low on a Synology RackStation, Synology RX1217/RX1217RP offers an easy way to immediately expand storage by providing 12 additional drive slots. The RAID volume on the Synology RackStation can be expanded directly without having to reformat the existing hard drives, ensuring service continuity during the expansion process. To ensure 24/7 service uptime, Synology RX1217RP is equipped with redundant power supplies, allowing automatic failover support if one of the PSUs fail.

When created as a separate volume, Synology RX1217/RX1217RP also serves as an additional local backup destination for Synology RackStations.

Reliable plug-and-use design
Synology RX1217/RX1217RP securely connects to Synology RackStation servers with a high-bandwidth expansion cable, ensuring maximum data throughput and smooth operation — as if they are part of the internal drives of Synology RackStation. SATA 6Gb/s interface ensures the installed drives provide high quality, outstanding data processing performance.

Green & easy to manage
Hibernation mode can be manually configured to start automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of hard drives. RX1217/RX1217RP will also smartly power on/off with the attached RackStation, so no user intervention is needed to keep this system running smartly and efficiently.
Specifications
Specifications
NAS Form Factor 2U Rackmount
Bays 12 Bay
Storage (Included) N/A
Max. Storage Capacity 120 TB
HDD Interface 12 x SATA III - 6Gb/s
HDD Form Factor 12 x 3.5"/2.5"
Internal Flash Memory No
Internal Flash Memory Capacity
DOM Module No
DOM Capacity
CPU
CPU Model
Cores
CPU Speed
RAM Memory Included
RAM Memory Type
Max. RAM Memory Supported
Cache Drive Interface
Included Cache Drive Capacity
Included Cache Drive Type
LAN Type N/A
Expansion Slots
External Connectivity 1 x Expansion Port
Cooling Fan
Noise Level 54.6 dB(A)
PSU Type
PSU Wattage
Max. Power Consumption
Dimensions 430 x 88 x 644 (WxHxD mm)
Weight 12.7 kg
