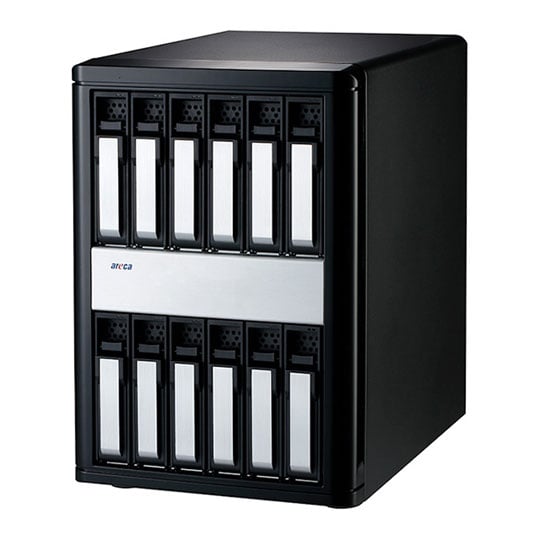

Areca 12-Bay SAS/SATA JBOD Enclosure
12-Bay Areca ARC-4038 JBOD Enclosure, 12 Hotswap SAS/SATA Bays, 12Gb/s SAS, 6Gb/s SATA, 400W PSU
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
12-Bays 12Gb/s SAS Tower JBOD Enclosure
The ARC-4038 SAS-to-SAS JBOD box provides a compact external storage chassis capable of accommodating up to 8 12Gb/s, Serial-Attached SCSI (SAS) drives or 6Gb/s Serial ATA (SATA) drives. The box can support both 3.5-inch disk drives and 2.5-inch disk drives, each one contained in its individual hole on the disk carrier. The expander module on ARC-4038 is designed with an integrated ARM Cortex-R4 processor for topology management functions such as discovery, enclosure and drive management, and LED management. Each ARC-4038 compact tower JBOD supports four 12Gb/s SFF-8644 and one 6Gb/s SFF-8088 SAS host and expansion connections. Out-of-band CLI can re-define manufacture default setting on those connections. Configuration and environmental information is accessible either via in-band (SES-3.0 over SMP) or out-of-band serial port.
• One 6Gb/s SFF-8088 SAS host (only for 8-bays enclosure).
• LED activity/status in each drive carrier.
• Daisy chain capacity expansion for additional ARC-4038.
• Plug & Play add capacity without shutting down.
• Support CLI for configuration and environmental information.
• SAS hard drives: Up to 8/12 2.5-inch or 3.5-inch SAS hot-plug hard drives (12.0 Gb/s) at speeds of 7.2K, 10K or 15K rpm.
• SATA hard drives: Up to 8/12 2.5-inch or 3.5-inch SATA hot-plug hard drives (6.0 Gb/s) at speeds of 7.2K or 10K rpm.

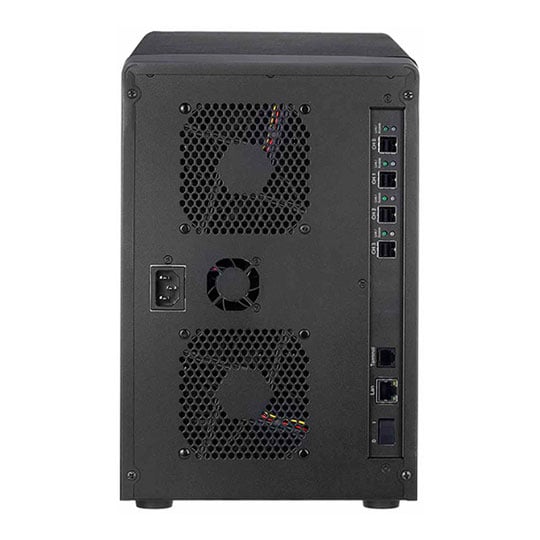

I/O Connectors:
2 x SFF-8644 "Host In" connectors for connection to the host.
1 x SFF-8088 "Host In" connectors for connection to the host (only for 8-bays enclosure).
2 x SFF-8644 "Expansion Out" connectors for expansion to an additional JBOD enclosure.
Management Connector:
1 x 6-pin UART RJ-11 connector.
1 x RJ-45 LAN connector (manufacture manager only).
