Scan code: LN114673 Manufacturer code: ZBOX-ECM73070C-BE

Zotac MAGNUS ONE ECM73070C Intel Core i7 w/ GeForce RTX 3070 Barebones Mini PC

Zotac MAGNUS ONE ECM73070C Mini PC, i7 10700, DDR4 SO-DIMM, 8GB RTX 3070, M.2/2.5", 2.5GbE/GbE, ax/BT5, Barebones

Thumbnail 1 : Zotac MAGNUS ONE ECM73070C Intel Core i7 w/ GeForce RTX 3070 Barebones Mini PC Thumbnail 2 : Zotac MAGNUS ONE ECM73070C Intel Core i7 w/ GeForce RTX 3070 Barebones Mini PC Thumbnail 3 : Zotac MAGNUS ONE ECM73070C Intel Core i7 w/ GeForce RTX 3070 Barebones Mini PC Thumbnail 4 : Zotac MAGNUS ONE ECM73070C Intel Core i7 w/ GeForce RTX 3070 Barebones Mini PC
Scan code: LN114673 Manufacturer code: ZBOX-ECM73070C-BE
Was: £1,449.95
£1,319.99
FREE DELIVERY ON YOUR ENTIRE BASKET
Order now and get it tomorrow, Thu 9th Dec
From £27.50 / month (APR 0%) or 0% for 4 months
Monthly Payment: £110.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £1,319.99
Total inc. interest: £1,319.99
Monthly Payment: £55.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £1,319.99
Total inc. interest: £1,319.99
Monthly Payment: £36.67
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £1,319.99
Total inc. interest: £1,319.99
Monthly Payment: £27.50
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £1,319.99
Total inc. interest: £1,319.99
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £32.97 / month (APR 15.9%)
Delivery Options
  • By DPD On 9th Dec to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

Zotus MAGNUS ONE i7-10700 GeForce RTX 3070 Barebones Mini PC

K380

SMALL IN STATURE, HUGE ON PERFORMANCEEmpower everything in one incredibly powerful, versatile Mini PC. MAGNUS ONE boasts the ultimate performance in an all-new and compact design. It is the first Mini PC taking advantage of the ZOTAC GAMING GeForce RTX 3070 graphics card for high-fidelity ray-traced graphics and cutting-edge AI features with DLSS. Paired with a 10th Gen Intel Core i7 processor, upgradable memory and storage support, full-range connectivity options with Killer networking, MAGNUS ONE has the do-it-all capability to deliver the best experience for daily tasks, gaming, entertainment, content creation and business.

Intel Core i7-10700Processor

2666 MHzDDR4 Memory Speed

64GBMemory Capacity

A Powerhouse Pairing

K380

RESPONSIVE PROCESSINGThe MAGNUS ONE features a 10th generation Intel Core i7 processor, boasting 8 cores and 16 threads with max clock speeds of up to 4.8GHz. This gives you more than enough power to blaxe through your daily tasks, creating your media or even playing video games.


back

UNPRECEDENTED IMMERSIONThe ZOTAC GAMING GeForce RTX 30 series desktop graphics card powered by the NVIDIA Ampere architecture pushes the MAGNUS ONE to a whole new level of performance. Experience faster performance over previous generation GPUs and take in the lifelike, smooth visuals.

Seamless Connectivity

down

BLUETOOTH

up

KILLER 2.5GBPS

up

RJ-45

down

WIFI 6

MULTIPLE CONNECTION OPTIONSThe MAGNUS ONE delivers a fast and reliable connection on wireless or wired with Killer hardware. Connect wirelessly with the latest WiFi 6, pair devices using the latest Bluetooth 5, or plug into either the Gigabit Ethernet or faster Killer 2.5Gbps Ethernet port.

Versatile Display Options

4K Recording

HDMI 2.1Fluid viewing with 4K resolution at 120Hz for lifelike motion.

NVIDIA G-SYNC READYPair with a compatible display for ultra-smooth gameplay.

DISPLAYPORT 1.4AFuture display ready for 4k and beyond, up to a vision-clearing 8K resolution.

UP TO FOUR DISPLAYSGet the advantage, see more, and show more.

Specifications
Edition MAGNUS ONE ECM73070C (Barebone)
Form Factor mini PC
CPU Included Yes
CPU Type Intel Core i7
CPU Model i7-10700
Architecture Comet Lake
Manufacturing Process 14 nm
Unlocked CPU No
Core 8 Core
No. of Threads 16
Clock Speed 2.9 GHz
Burst Frequency 4.8 GHz
CPU Cache 16MB
CPU Cooler Air Cooled
Max. TDP 65 W
CPU Socket 1200
Chipset Integrated Intel
Motherboard Form Factor Bespoke/Custom
Motherboard Model
Memory Type DDR4 SO-DIMM
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2666
  • DDR4 - 2933
Max. Memory Capacity 64GB (2x32GB)
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip Intel UHD Graphics 630
Discrete GPU Yes
Discrete GPU Chipset GeForce RTX 3070
GPU Architecture Ampere
GPU Manufacturing Process 8 nm
GPU Cores/Streams/Execution Units 5888
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size 8GB
GPU Memory Type GDDR6
GPU Memory Clock 14000 MHz
GPU Memory Bus 256 Bit
Discrete GPU Cooler Air Cooled
Multi-GPU Configuration No
Max. GPU Resolution 7680x4320 @ 60Hz (8K UHD)
Graphics Interface PCIe 3.0 (x16)
Expansion Slots
  • 1 x M.2, 22-42/80, PCIe Gen3/SATA
  • 1 x M.2, 22-80/110, PCIe Gen3
  • 1 x PCIe 3.0 x16
  • 1 x SATA 6GB/s
SATA SATA3 / M.2
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
SSD Storage Included No
SSD Storage Type
SSD Storage Capacity
Optical Drive N/A
Drive Bays 1 x 2.5" Internal
Backplane I/O
RAID Support
Internal I/O
  • 2 x M.2
  • 1 x SATA III - 6Gb/s
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x 2.5 Gigabit LAN
  • 1 x 802.11ax WiFi + BT5
  • 1 x Gigabit LAN

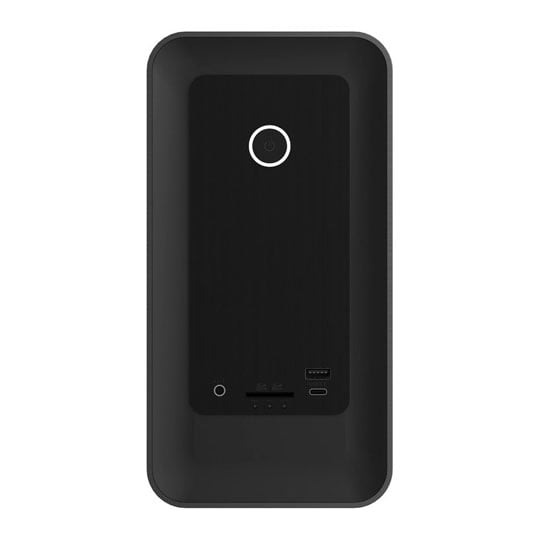

Front Panel
  • 1 x Card Reader
  • 1 x Headphone/Mic Combo
  • 1 x USB 3.0
  • 1 x USB 3.0 Type-C

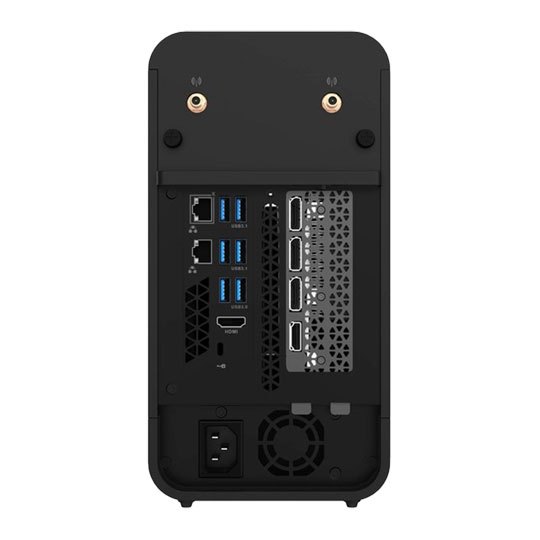

Back Panel
  • 1 x 10/100/1000 (LAN)
  • 1 x 10/100/1000/2500 (LAN)
  • 3 x DisplayPort 1.4
  • 1 x HDMI 1.4
  • 1 x HDMI 2.1
  • 2 x USB 3.0
  • 4 x USB 3.1
  • 2 x WiFi Antenna connectors
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable No
PSU Wattage 500 W
PSU Efficiency Rating 80 PLUS Platinum
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour Black
Dimensions 265.5 x 126 x 249 (mm WxHxD)
Weight
Includes
  • 1 x Quick Start Guide
  • 1 x UK Power Cable
  • 1 x USB Flash Drive with Drivers
  • 1 x Warranty Card
  • 2 x Wi-Fi Antenna
Notes
Additional Information
Scan Code LN114673
Model Number ZBOX-ECM73070C-BE
GTIN 4895173622649
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan / Zotac
