Scan code: LN141171 Manufacturer code: ZBOX-CI649NANO-BE

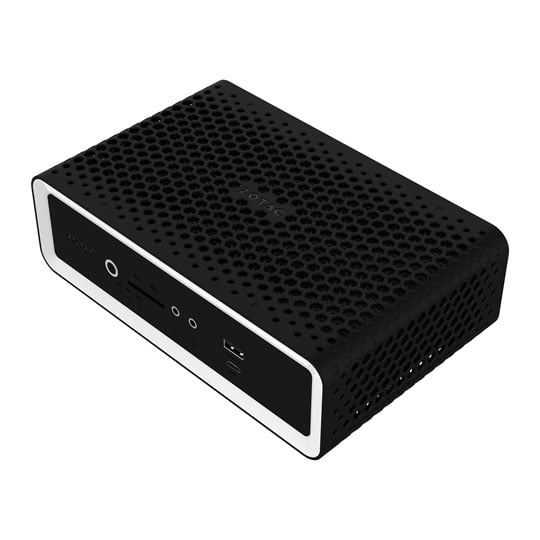

Zotac ZBOX CI649 Nano Intel Core i5 Xe Graphics Barebone Mini PC

Zotac CI1649 ZBOX-CI649NANO-BE Barebone Mini PC, i5-1335U, DDR5, Iris Xe Graphics, ax WiFi/2.5G/BT,M.2,USB/HDMI/DP/TB4

Thumbnail 1 : Zotac ZBOX CI649 Nano Intel Core i5 Xe Graphics Barebone Mini PC Thumbnail 2 : Zotac ZBOX CI649 Nano Intel Core i5 Xe Graphics Barebone Mini PC Thumbnail 3 : Zotac ZBOX CI649 Nano Intel Core i5 Xe Graphics Barebone Mini PC Thumbnail 4 : Zotac ZBOX CI649 Nano Intel Core i5 Xe Graphics Barebone Mini PC
Scan code: LN141171 Manufacturer code: ZBOX-CI649NANO-BE
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
£499.99
Get it Tomorrow, 14 AprIn stock
FREE DELIVERY ON THIS ITEM
From £17.51 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £45.30
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £499.99
Total inc. interest: £543.57
Monthly Payment: £24.42
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £499.99
Total inc. interest: £585.91
Monthly Payment: £17.51
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £499.99
Total inc. interest: £630.29
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £13.29 / month (APR 19.9%)
Delivery Options
  • By DPD On 15th Apr to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

ZBOX CI649 Nano i5 Iris Xe Barebone Mini PC from ZOTAC

Barebone Mini PC

New Class. Next GenerationThe all-new ZOTAC ZBOX C Series CI649 nano instils silence in ever more powerful computing hardware with a 13th Gen Intel Core i5-1335U 10-core 12-multi-threaded processor, Intel Iris Xe Graphics, and Thunderbolt 4. A compact 1.79 litre footprint and modern design with a two-tone color scheme provide a timeless feel to captivate Offices and Workspaces with a silent and capable computer experience. With a bundled VESA mount plate, easily mount the system behind a compatible display or on the wall for more versatile placement.

i5-1335UIntel Processor

Iris Xe GraphicsIntel Laptop GPU

WiFi 6/BT 5.2Wireless

The Ideal Office Assistant

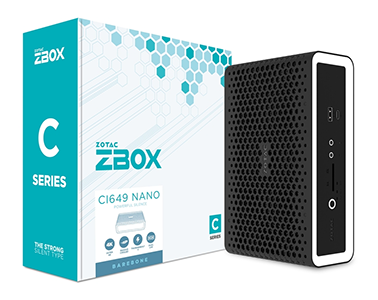

Mini powerhouse

THE MINI POWERHOUSEThe all-new compact ZBOX C Series nano is a leader in silent computing performance. Its rigid enclosure is patterned with nature’s strongest natural structure, further enhanced by 270 degrees of open ventilation for maximum breathability and operability.

i5-1335U Processor

Power Through Your TasksThe all-new ZBOX C Series nano Mini PC is an efficiently fast multi-core, multi-threaded multitasker that’s dedicated to help get work done.

• 2 Performance Cores.
• 8 Efficient Cores.
• 12 Threads

Efficient and Reliable

Up to 30W

Up to 30WA system that takes up very little space and it's designed with no moving parts (when used with an SSD), to remote wear and tear inefficiencies to increase overall system reliability, longevity, and return on investment. At 1.8 litres small, its energy consumption is just as small and efficient, sipping up to 30W under load for additional long term cost saving.

Free Up Desk Space

FlexibleThe ZBOX C Series nano features a built-in VESA mount design to allow for more flexible system placement. The overall small system takes very little desk space, but it also has the potential to take up zero if mounted onto a wall, under the desk, or even behind the display.

*VESA compatible display and additional hardware and tools may be required.

LAY IT

LAY IT

HIDE IT

HIDE IT

HANG IT

HANG IT

Fitting in, with All the Connections

HAS GREAT COMMUNICATIONThe ZBOX C Series nano’s compact footprint packs in a plethora of built-in fast connectivity which include: WiFi 6, Bluetooth 5.2, Gigabit LAN, and 2.5Gbps LAN. It can also provide great visibility with the ability to support up to 3 displays with HDMI 2.0b, DisplayPort 1.4, and DP via Thunderbolt. The available Thunderbolt 4, USB 3.1, and SDXC Card Reader allows for easy file transfers between devices.

Connectivity

01 | Power

02 |Audio

03 | Mic

04 | USB 3.1

05 | SDXC Card Reader

06 | Thunderbolt 4

07 | Antenna Connection

08 | 2.5Gbps Ethernet

09 | Gigabyte Ethernet

10 | USB 2.0

11 | DisplayPort 1.4

12 | HDMI 2.0b

Cutting-Edge Performance Awaits

Zotac ZBOX Magnus EN
Specifications
Edition ZBOX C1649 Nano
Form Factor
CPU Included Yes
CPU Type Intel Core i5
CPU Model i5-1335U
Architecture Raptor Lake 13th Gen
Manufacturing Process
Unlocked CPU No
Core 10 Core
No. of Threads 12
Clock Speed 1.3 GHz
Burst Frequency 4.6 GHz
CPU Cache
CPU Cooler
Max. TDP
CPU Socket N/A
Chipset N/A
Motherboard Form Factor
Motherboard Model
Memory Type
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR5 - 4800
  • DDR5 - 5200
Max. Memory Capacity 64GB (2x32GB)
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip Intel® Iris® Xe Graphics
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface N/A
Expansion Slots
  • 1 x M.2 PCIe
  • 1 x SATA 6GB/s
SATA SATA3 / M.2
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
SSD Storage Included No
SSD Storage Type
SSD Storage Capacity
Optical Drive None
Drive Bays 1 x 2.5" Internal
Backplane I/O
RAID Support
Internal I/O N/A
Network Interface Type
  • 802.11ax Wi-Fi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 2 x 2.5 Gigabit LAN
  • 1 x 802.11ax WiFi + BT5.2
Front Panel
  • 1 x 3-in-1 SD/SDHC/SDXC Card Reader
  • 1 x Headphone Out
  • 1 x Mic In
  • 1 x Thunderbolt 4
  • 1 x USB 3.1 Gen1 Type-A
Back Panel
  • 2 x 10/100/1000/2500 (LAN)
  • 1 x DC-In Jack
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.0b
  • 1 x USB 2.0
  • 3 x USB 3.1 Gen1 Type-A
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable Yes
PSU Wattage 65 W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour Black
Dimensions 204 x 68 x 129 (mm WxHxD)
Weight
Includes
Notes
Additional Information
Scan Code LN141171
Model Number ZBOX-CI649NANO-BE
GTIN 4895173627521
