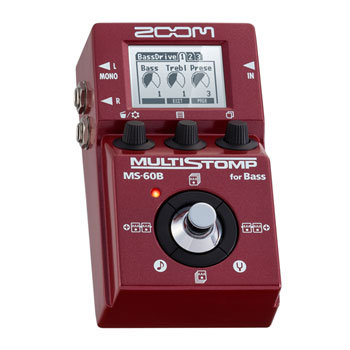

Plug into Zoom's MS-60B Multistomp and bring your bass to the forefront. 58 expertly crafted DSP effects and bass amp / cabinet models give you everything you need to quickly and easily create deep, rich bass tones. Dual output jacks and a handy built-in tuner complete the package, making the MS-60B the perfect companion both onstage and in the studio.
1 pedal, 58 great bass effects
Cut down the size of your pedalboard by adding an MS-60B. It offers 58 great-sounding ways to craft the perfect bass tone. For ease of use, these are organized into the following categories:
• Dynamics / Filter
Shape and control your low end with these 19 different compressors, limiters, equalizers, filters, exciters, and frequency splitters, plus Zoom's Noise Reduction (ZNR) algorithm, designed to remove noise during pauses while still maintaining your instrument's natural tone. Other options here include a bass frequency-specific AutoWah and "talking" modulator, as well as emulations of the MXR DynaComp, Aphex Punch Factory, dbx 160A, BBE Sonic Maximizer, Q-Tron Envelope Filter, Moog MF-101, and Z. Vex Seek-Wah.
• Overdrive / Distortion
The MS-60B's 11 boosters, overdrives, and direct inject / preamp models include simulations of the BOSS ODB-3, DS-1, and Metal Zone, as well as the Electro-Harmonix Bass Big Muff, SansAmp Bass Driver DI, MXR Bass D.I.+, Xotic Bass BB Preamp, and Avalon Design U5.
The 6 amp models provided here include emulations of classic tube amplifiers like the Ampeg SVT and Fender Bassman, as well as the contemporary sounds of the Hartke HA3500, acoustic 360, Aguilar DB750, and Italian Markbass Little Mark III, each with its own distinct cabinet modeling that can be used to further alter the tonal quality. What's more, you can pair any amp model to any cabinet model for unusual, and often striking effects.
• Modulation / Special effects
You'll find 14 different modulation and special effects here, all specially crafted for bass. These include phasing, flanging, chorusing, tremolo, detuning, and pitch shifting, as well as a sub-octave generator and an intelligent bass synthesizer that plays along in key-even a DeFret effect that changes the tone of a fretted bass into that of a fretless.
• Delay / Reverb
The MS-60B's cutting-edge DSP microchip performs 32-bit floating-point calculations, giving it the ability to create sophisticated studio-quality effects such as the 8 rich, dense reverbs, and realistic spatial simulations found here. These allow you to place your bass in natural-sounding spaces such as rooms and halls or to add delays of up to 4 seconds. Also included is slap-back echo and a reverb plate emulation, as well as reverse, modulated, and self-oscillating delays.
NOTE: Manufacturer names and product names are trademarks or registered trademarks of their respective owners. The names are used only to illustrate sonic characteristics and do not indicate any affiliation with the Zoom Corporation or Zoom North America.
Full-featured and easy to use
The MS-60B's intuitive design allows easy navigation in both live and studio settings and makes creating, saving, and rearranging effects a breeze. Its input jack accepts signal from both passive and active guitars, and dual line-level output jacks enable you to record the MS-60B's many sounds in stereo.
You can use up to 4 effects simultaneously and arrange them in any order you like—even bring individual effects in and out of the chain as desired. There are 50 patch memories where you can store your custom edited and chained multi-effects, with the first 30 pre-loaded with useful factory settings. An Auto Save function ensures that whatever edits you make will automatically be saved, and you can create a list of up to 26 patches to cycle through as you step on the MS-60B footswitch—handy for live gigs or whenever you want your effects in a certain order.
The onboard chromatic tuner supports both standard and drop bass tunings, and you can opt to either bypass all effects during tuning or to mute the outputs so that you can tune in silence. Last but not least, the MS-60B's Tap Tempo feature allows you to to set delay times and modulation effect frequencies in real time to the rhythm of the song you're playing.
Power to spare
The MS-60B runs on just 2 AA batteries—either alkaline or rechargeable NiMH—and powers up automatically when a connector is inserted into its input jack. A Power Management function automatically turns the pedal off if unused for extended periods.
Battery life is up to 7 hours with alkaline batteries, allowing you to use the MS-60B with confidence from rehearsal to the main stage. Alternatively, the MS-60B can be powered from an AC adapter (sold separately) or via USB.
Features at a glance
• 58 bass effects and amp/preamp/DI models, including modulation, equalization, delay, and reverb
• Up to 4 effects can be used simultaneously, in any order
• 50 memory locations for the storage of user-created patches
• 30 preset patches
• Patch cycling
• Onboard chromatic tuner supports all standard bass tunings
• Tap Tempo for synchronization of delay times or modulation rates
• Auto Save function for automatic saving of all patch parameters
• ¼" input jack (both active and passive instruments supported)

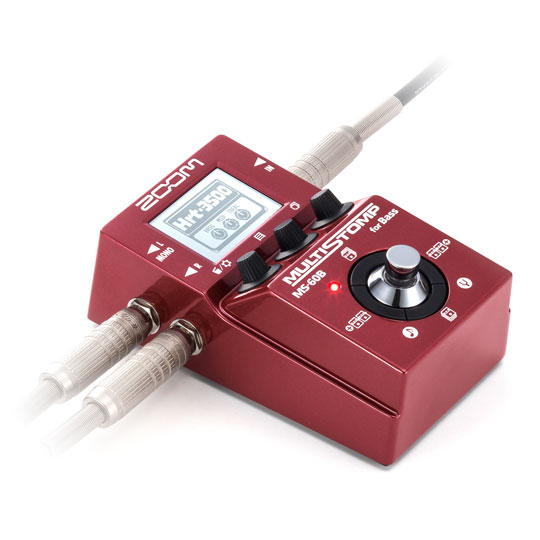

• Dual ¼" output jacks
• Backlit LCD with contrast control for easy viewing in low-light environments

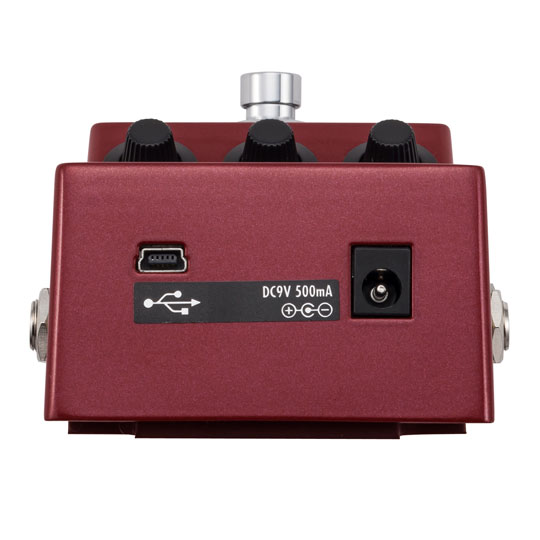

• USB port for power and firmware updates
• Lightweight and small enough to fit in your gig bag
• Easily integrated into any existing pedalboard
• Runs on 2 AA batteries, with alkaline battery life of up to 7 hours
• Optional AC adapter
• Number of effects: 58
• Number of simultaneous effects: 4
• Number of patch memories: 50
• Number of patch presets: 30
• Sampling frequency: 44.1 kHz
• A/D conversion: 24-bit, 128 x oversampling
• D/A conversion: 24-bit, 128 x oversampling
• Signal processing: 32-bit floating point and 32-bit fixed point
• Frequency response: 20Hz - 20 kHz +1 dB, -3 dB (into 10k? load)
• Display: LCD
• Input: 1 x 1/4" monaural phone jack
• Rated input level: -20 dBm*
• Input impedance: 1M?
• Output: 2 x 1/4" monaural phone jack
• Maximum output level: +5 dBm (output impedance load of 10 k? or more)
• Battery type: AA size (LR6) battery x 2
• Continuous battery operation time: 7 hours when using 2 AA batteries
• AC adapter (optional): DC 9V center-negative, 500 mA (Zoom AD-16)
• USB: Firmware update, bus power
• Dimensions: 130.3 (D) x 77.5 (W) x 58.5 (H) mm
• Weight: 350g (without batteries)
* Note: 0 dBm = 0.775 Vrms
