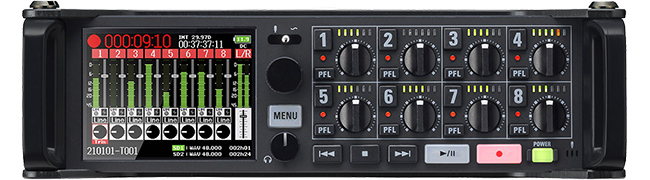

Zoom - F8N-Pro 32Bit Float Multitrack Field Recorder
Zoom - F8n Pro Multitrack Field Recorder, 32-bit Float/192kHz, 8-channel/10-track Field Audio Recorder
8-Input / 10-Track Multitrack Field Recorder
Zoom - F8n Pro
THE 10-TRACK BLOCKBUSTERCapture professional audio in any and every location recording quickly and cleanly with the Zoom F8n Pro, a sound bag–friendly multitrack field recorder with 32-bit float technology for immense dynamic range that frees you from clipping and manual gain adjustments. Featuring ample 8-input / 10-track recording, separate converters for quiet and loud sounds, and high-end preamps with mic/line input switching, the F8n Pro delivers quantity and quality into a rugged frame that's more than ready for filmmaking, production/location sound mixing, sound effects recording, and electronic news gathering.
From the large, informative colour display and user-friendly controls to the flexible powering methods, remote control options, and precision time code functionality, the F8n Pro is properly equipped to please novices and demanding veterans alike. Whether you need long-duration stereo recording for an interview, redundant capture of multi-mic setups for a video shoot, or Ambisonics sound files for virtual reality and 360-audio projects, the F8n Pro has the modes, resolutions, and media support to handle your crucial audio tasks.
at a glance
• 32-bit float recording technology
• 8-channel/10-track field audio recorder/mixer
• Records in BWF-compliant WAV format up to 192kHz/32-bit float
• 8 discrete inputs with locking Neutrik XLR/TRS combo connectors
• High quality mic preamps with up to 75 dB gain and less than -127 dBu EIN
• Switchable +4dB inputs with mic/line options for both XLR and TRS
• Zoom AutoMix™ software
what's in the box?
• F8n Pro Field Recorder
• Zoom AD-19 12V AC adapter
• Operation manual
The Choice of The Film Makers
CREATE IMMERSIVE AUDIOWith 8 inputs and 10 tracks, the F8n Pro can capture the most complex audio, expanding your options so that you can create sonic magic in post.
MULTIPLE FEEDSThe F8n Pro has three outputs for external devices, headphones, and camera connections. You can keep tabs on your tracks pre or post-fader, check levels, route signals to the left or right and set alert tones for battery and recording status.
EXPLOSIVE AUDIO32-Bit Float is a game-changer. The F8n Pro uses dual A/D converters and professional-grade preamps to capture clip-free audio – without ever needing to adjust gain!
Stacked Zoom Features
Formatting
OptionsThe F8n Pro records in BWF-compatible WAV formats up to 32-bit resolution and at sample rates up to 192 kHz.
Built-in
ProcessingThe F8n Pro features flexible signal routing from all inputs to all outputs, phase inversion and mid-side decoding. It also provides high-pass filtering to reduce the sound of wind and other noise. Input and output delays are also available.
State-of-the-Art
TimecodeKeep your tracks perfectly synced even when you power down. On or off, the F8n Pro’s Temperature Compensated Crystal Oscillator (TCXO) generates time code at 0.2 ppm accuracy.
Stay Focused
With Zoom Automix™Zoom AutoMix lets you keep your eyes on the action by automatically adjusting the levels of your mix to reduce ambient sound.
Full Metadata
EntryThe track name, scene names, notes, and more can be entered directly from the unit or via the Zoom F8 Control App for iOS / Android.
Meet the Zoom F8n Pro Field Recorder
The Tech Spec
| Features | Specification | Form Factor | Field Recorder |
|---|---|
| Primary Use Applications | Audio-for-Video |
| Number of Tracks | WAV:
10 (8 Inputs + Stereo Mix) MP3: 2 |
| Number of Input Channels | 8 |
| Max Sample Rate/Resolution | 192 kHz / 24-Bit |
| Microphone | Built-In Slate Mic |
| Number of Mic Preamps | 8 |
| Display | 2.4" / 6.1 cm Color LCD (Backlit) |
| Memory Card Support | SDHC (4 GB to 32 GB) SDXC (64 GB to 1 TB) |
| Special Features | Pre-Record Buffer, Remote Control Capable, Slate Function (Remote Available Separately) |
| Audio File Formats | BWF, ID3v1, MP3, WAV, iXML |
| Sample Rates | WAV:
44.1 / 47.952 / 48 / 48.048 / 88.2 / 96 / 192 kHz MP3: 44.1 / 48 kHz |
| Bit Depth | 32-Bit (Floating Point) 16 / 24-Bit |
| Bit Rates | 128 to 320 kb/s |
| Signal Processing & FX | Delay, Limiter, Low-Cut Filter |
| Frame Rates Supported | 23.976 / 24 / 25 / 29.97 / 29.97 DF / 30 / 30 DF |
| Recording Time | WAV 48 kHz/32-Bit:
43.4 Mins per GB (Stereo) WAV 192 kHz/32-Bit: 10.9 Mins per GB (Stereo) |

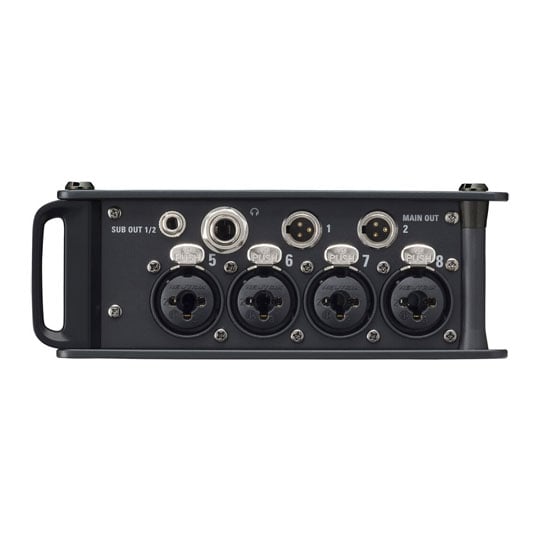

| Analogue I/O | 8 x Combo XLR-1/4" TRS Female Line/Mic Input (Lockable) 1 x Proprietary 10-Pin Mic Capsule Input 2 x TA3 3-Pin Male Balanced Line Output 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output 1 x 1/4" TRS Female Unbalanced Headphone Output) |
| Digital I/O | 1 x BNC Timecode Input 1 x BNC Timecode Output |
| Phantom Power | +24 / 48 V (Selectable on Individual Inputs) |
| Host Connection | 1 x Mini-USB (USB 2.0) |
| Recording Time | WAV 48 kHz/32-Bit:
43.4 Mins per GB (Stereo) WAV 192 kHz/32-Bit: 10.9 Mins per GB (Stereo) |
| Analogue I/O | 8 x Combo XLR-1/4" TRS Female Line/Mic Input (Lockable) 1 x Proprietary 10-Pin Mic Capsule Input 2 x TA3 3-Pin Male Balanced Line Output 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line Output 1 x 1/4" TRS Female Unbalanced Headphone Output |
| Digital I/O | 1 x BNC Timecode Input 1 x BNC Timecode Output |
| Phantom Power | +24 / 48 V (Selectable on Individual Inputs) |
| Host Connection | 1 x Mini-USB (USB 2.0) |
| Audio Interface Capability | Multi-Track |
| Power Options | Battery or AC/DC Power Adapter |
| Battery Type | 8 x AA (Not Included) |
| Mounting Options | 1/4"-20 Female (Bottom) |
| Dimensions | 7 x 5.5 x 2.1" / 178.2 x 140.3 x 54.3 mm |
| Weight | 2.6 lb / 1.2 kg (with Batteries) |
| Package Weight | 3.9 lb |
| Box Dimensions (LxWxH) | 12.1 x 10.3 x 4.1" |
