Zoom F1-SP Field Recorder + SGH-6 Shotgun Mic
Zoom F1-SP 2-Channel Field Recorder + SGH-6 Shotgun Mic For Run and Gun Video Creators, 24bit / 96kHz, Built-In Limiter
Email me when the availability or price changes
Finance this product
- Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
2-Input / 2-Track Portable Field Recorder with Shotgun Microphone
Zoom - F1 Field Recorder & SGH-6 Shotgun Mic
THE ULTIMATE AUDIO SOLUTION FOR RUN-AND-GUN FILMMAKERSThe Zoom F1 Field Recorder & Shotgun Mic is the ultimate solution for run-and-gun filmmakers who need to capture professional quality audio for video.
Record rich, pristine dialogue in a rapid time on your next video shoot, interview, or vlog with Zoom’s F1-LP, a 2-track portable field recorder featuring built-in limiter and auto-level control providing distortion-free 24-bit audio, and an attachable lavalier microphone for quick and easy setup. Other F-Series field recorders such as the F4, F6, and F8n are centred around a sound bag–ready form factor, the F1-LP has been designed for belt-mount and pocket-friendly placement.
at a glance
• Ideal for Run & Gun Video, Interviews
• 3-Capsule Shotgun Microphone
• Limiter & Auto-Level Prevent Distortion
• Records Stereo MP3 or Hi-Res WAV
• Compatible with Zoom Mic Capsules
• 3.5mm Stereo Mic/Line Input

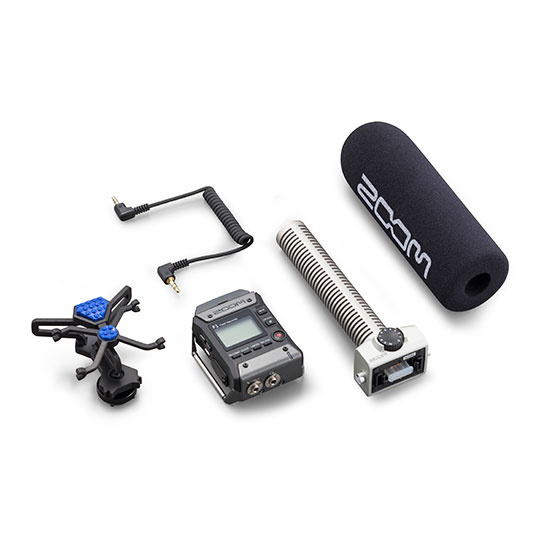

WHAT'S INCLUDED?
• F1 Field Recorder
• SGH-6 Shotgun Mic
• WSL-1 Windscreen
• MCL-1 Mic clip
• BCF-1 Belt clip
• Quick guide
Capture All The Action

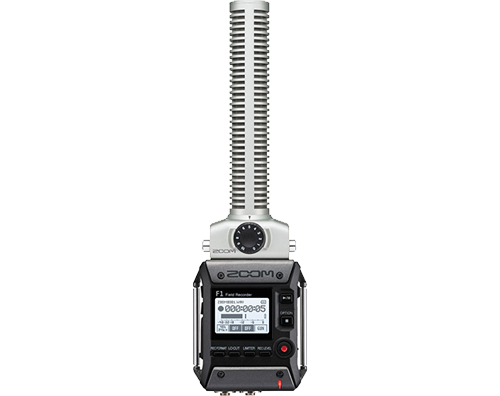

HIGH IMPACT AUDIOThe F1-SP comes with the SGH-6 Shotgun Mic known for capturing pro-quality, hyper directional sound, and it’s aluminum body makes it extremely lightweight. Combined with the F1, you can record high-resolution audio up to 24 bit/96 kHz, providing high-impact audio for any video production.

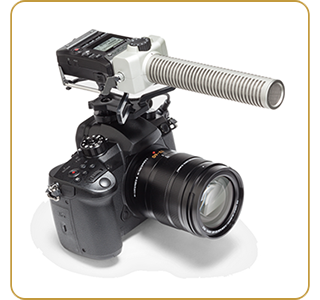

READY, AIM, RECORDConnect the F1 and Shotgun to the included shock mount and attach it to your camera. Then connect the F1’s audio output to your camera’s input using the included 3.5mm stereo cable and you’re ready to record.
AUDIO REDUNDANCYWhile recording to your camera, the F1 can also record to a microSD card, providing a stereo audio file which can be edited in post-production.
Essential Features For Videographers
CALIBRATE AND SYNCThe F1’s tone generator provides a test tone to assist in setting proper audio levels. Sound markers make aligning audio and video easy.
NO CHANCE OF OVERLOADAn on-board limiter and auto-level control keep your levels safe when spikes in loud volume occurs.
CONVENIENT POWER SOURCESThe F1 can be powered using two AAA batteries or with the optional AD-17 power adapter.
USB CONNECTIVITYTransfer recordings to your computer in card reader mode or record directly to your computer or iPad using the F1 in USB audio interface mode.
Record In Multiple Audio Formats
Broadcast Wave Format (BWF) compliantThe F1 records audio in WAV or MP3 formats. WAV files are automatically time-stamped, making them Broadcast Wave Format (BWF) compliant.

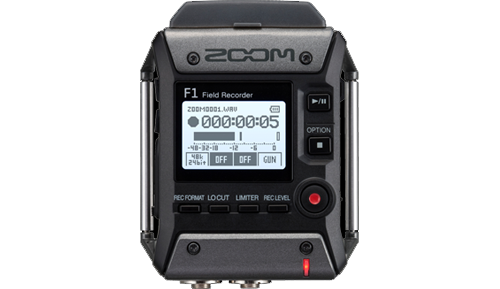

EASY-TO-READ DISPLAYThe F1’s one-touch buttons gives you easy access to record levels, limiter control, lo-cut filter and volume output. It’s newly designed monochromatic LCD display ensures visibility even in bright sunlight.
One Recorder, Multiple Mic Options
vast array of optionsWith Zoom's proprietary 10-pin connector, the F1 is compatible with all of Zoom’s interchangeable mic capsules, providing more options for recording.
• SSH-6 - Stereo shotgun capsule with directional mic and adjustable side mic.
• MSH-6 Stereo mid-side capsule with adjustable stereo width.
• XYH-5 Stereo X/Y capsule with shock-mounted microphones.
• SGH-6 Mono shotgun capsule with directional pickup.
• XYH-6 Stereo X/Y Capsule with adjustable capsules.
• EXH-6 Dual combo input capsule.
F1 Field Recorder & Shotgun Mic Introduction
The Tech Spec
| Features | Specification | Number of Tracks | 2 |
|---|---|
| Maximum Sampling Rate | 96 kHz / 24-Bit |
| Microphone | Interchangeable Omnidirectional Lavalier |
| Display | Monochrome LCD (Backlit) |

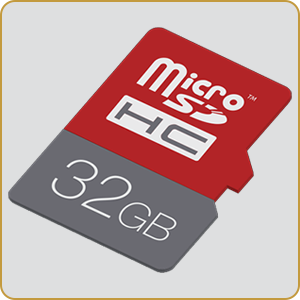

| Memory Card Support | microSD, microSDHC (Up to 32 GB) |
| Audio File Formats | BWF, ID3v1, MP3, WAV |
| Sample Rates | 44.1 / 48 / 96 kHz |
| Bit Depth | 16 / 24-Bit |
| Bit Rates | 48 to 320 kb/s |
| Signal Processing & FX | Auto Gain, Limiter, Low-Cut Filter |
| Analogue I/O | 1 x Proprietary 10-Pin Mic Capsule Input 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line/Mic Input (Lockable) 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone/Line Output (Lockable) |
| Plug-In Power | Yes, 2.5 V |
| Host Connection | 1 x Micro-USB (2.0) |
| Gain/Trim Range | -12 to +36 dB |
| Headphone Output Power | 11 mW per Channel into 32 Ohms |
| Dimensions | 2.5 x 3.1 x 1.3" / 64 x 79.8 x 33.3 mm |
| Weight | 4.2 oz / 120 g (without Batteries) |
