Zoom F1 Field Recorder + Lavalier Mic
Zoom F1 Field Recorder + Lavalier Mic, 2-Channel Audio Recorder, 24-bit / 96 kHz, Built-In Limiter
- SCANPROTECT Protect against installation damage for 28 days. More info
2-Input / 2-Track Portable Field Recorder with Lavalier Microphone

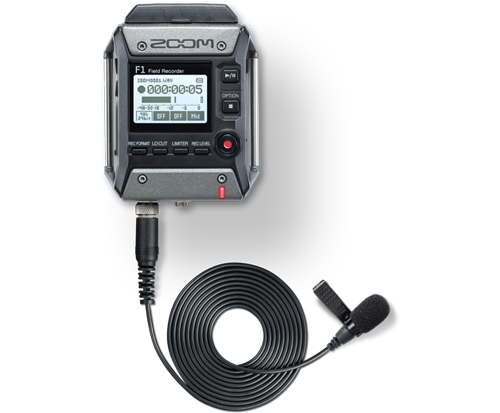

Zoom - F1 Field Recorder & Lavalier Mic
COMPLETE YOUR STORY WITH THE AUDIO QUALITY IT DESERVESThe Zoom F1 Field Recorder & Lavalier Mic is the perfect solution for videographers who need to capture the nuance of every word with professional quality audio.
Record rich, pristine dialogue in a rapid time on your next video shoot, interview, or vlog with Zoom’s F1-LP, a 2-track portable field recorder featuring built-in limiter and auto-level control providing distortion-free 24-bit audio, and an attachable lavalier microphone for quick and easy setup. Other F-Series field recorders such as the F4, F6, and F8n are centred around a sound bag–ready form factor, the F1-LP has been designed for belt-mount and pocket-friendly placement.
at a glance
• Ideal for videography, interviews, vlogs
• Omnidirectional Lavalier Microphone
• Limiter & Auto-Level Prevent Distortion
• Records Stereo MP3 or Hi-Res WAV
• Compatible with Zoom Mic Capsules
• 3.5mm Stereo Mic/Line Input
WHAT'S INCLUDED?
• F1 Field Recorder
• LMF-1 Lavalier microphone
• WSL-1 Windscreen
• MCL-1 Mic clip
• BCF-1 Belt clip
• Quick guide
Experience Sound & Story With The F1-LP
SOUND & STORYThe F1 Field Recorder + Lavalier Mic completes your video’s story by providing outstanding audio no matter where your production takes you.
LOW PROFILE DESIGNWith its minimal profile, the F1 attaches neatly on belts, waistbands, or slipped into a pocket so the recorder can be easily concealed.
WORRY-FREE RECORDINGThe LMF-1 Lavalier mic connects directly to the F1 and records to a micro SD card. By recording directly to the F1, interference or noise commonly experienced when using a wireless beltpack system is eliminated.
Essential Features For Videographers
AUTO LOCKThe Record Hold function or the Hold Switch can be used to prevent your subject from accidentally hitting buttons while recording.
NO CHANCE OF OVERLOADAn on-board limiter and auto-level control keep your levels safe when spikes in loud volume occurs.
CONVENIENT POWER SOURCESThe F1 can be powered using two AAA batteries or with the optional AD-17 power adapter.
USB CONNECTIVITYTransfer recordings to your computer in card reader mode or record directly to your computer or iPad using the F1 in USB audio interface mode.
Record In Multiple Audio Formats
Broadcast Wave Format (BWF) compliantThe F1 records audio in WAV or MP3 formats. WAV files are automatically time-stamped, making them Broadcast Wave Format (BWF) compliant.
EASY-TO-READ DISPLAYThe F1’s one-touch buttons gives you easy access to record levels, limiter control, lo-cut filter and volume output. It’s newly designed monochromatic LCD display ensures visibility even in bright sunlight.
One Recorder, Multiple Mic Options
vast array of optionsWith Zoom's proprietary 10-pin connector, the F1 is compatible with all of Zoom’s interchangeable mic capsules, providing more options for recording.
• SSH-6 - Stereo shotgun capsule with directional mic and adjustable side mic.
• MSH-6 Stereo mid-side capsule with adjustable stereo width.
• XYH-5 Stereo X/Y capsule with shock-mounted microphones.
• SGH-6 Mono shotgun capsule with directional pickup.
• XYH-6 Stereo X/Y Capsule with adjustable capsules.
• EXH-6 Dual combo input capsule.
F1 Field Recorder & Lavalier Mic Introduction
The Tech Spec
| Features | Specification | Number of Tracks | 2 |
|---|---|
| Maximum Sampling Rate | 96 kHz / 24-Bit |
| Microphone | Interchangeable Omnidirectional Lavalier |
| Display | Monochrome LCD (Backlit) |
| Memory Card Support | microSD, microSDHC (Up to 32 GB) |
| Audio File Formats | BWF, ID3v1, MP3, WAV |
| Sample Rates | 44.1 / 48 / 96 kHz |
| Bit Depth | 16 / 24-Bit |
| Bit Rates | 48 to 320 kb/s |
| Signal Processing & FX | Auto Gain, Limiter, Low-Cut Filter |
| Analogue I/O | 1 x Proprietary 10-Pin Mic Capsule Input 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line/Mic Input (Lockable) 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone/Line Output (Lockable) |
| Plug-In Power | Yes, 2.5 V |
| Host Connection | 1 x Micro-USB (2.0) |
| Gain/Trim Range | -12 to +36 dB |
| Headphone Output Power | 11 mW per Channel into 32 Ohms |
| Dimensions | 2.5 x 3.1 x 1.3" / 64 x 79.8 x 33.3 mm |
| Weight | 4.2 oz / 120 g (without Batteries) |
