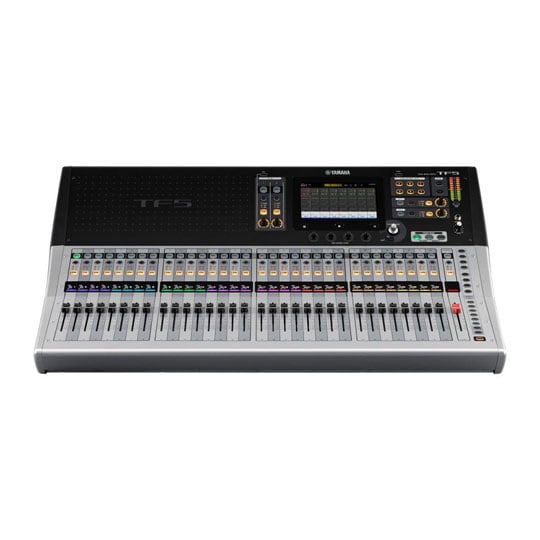

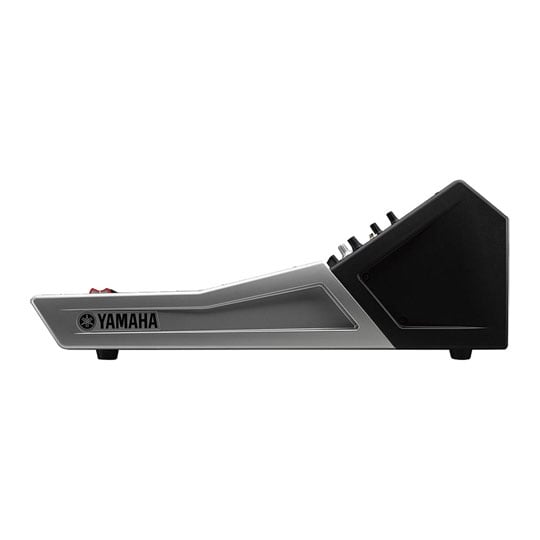

Yamaha TF5 48-channel Digital Mixer

Yamaha - TF5, 32-input TF Series Digital Mixer with 48 Mixing Channels, 33 Motorized Faders

Thumbnail 1 : Yamaha TF5 48-channel Digital Mixer Thumbnail 2 : Yamaha TF5 48-channel Digital Mixer Thumbnail 3 : Yamaha TF5 48-channel Digital Mixer Thumbnail 4 : Yamaha TF5 48-channel Digital Mixer
Scan code: LN136264 Manufacturer code: TF5
Order in the next 2 hrs 11 mins and get it tomorrow
£3,799.00
Get it Tomorrow, 29 MayIn stock
FREE DELIVERY ON YOUR ENTIRE BASKET
From £107.12 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £344.18
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £3,799.00
Total inc. interest: £4,130.14
Monthly Payment: £185.50
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £3,799.00
Total inc. interest: £4,451.91
Monthly Payment: £133.04
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £3,799.00
Total inc. interest: £4,789.07
Monthly Payment: £107.12
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £3,799.00
Total inc. interest: £5,141.38
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £100.95 / month (APR 19.9%)
Delivery Options
  • By DPD On 29th May to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

48-Channel Digital Mixing Console
Yamaha - TF5

Yamaha - TF5

48 input channel, USB with TouchFlow Operation mixerYamaha has always made it a mission to stay in touch with the needs of sound engineers worldwide. The outcome is evident in the success of the recent CL and QL series digital mixing consoles, and the flagship RIVAGE PM10. The key to success has always been in supporting the user’s creativity. Creativity is most effective when unrestricted, and now Yamaha has created a new digital mixing console that gives the user's intuition even freer rein.

TouchFlow Operation™ introduced in the TF series consoles allows the user to respond to the music and artists on stage with unprecedented speed and freedom, taking live sound reinforcement to a new level of refinement. With the TouchFlow Operation interface optimized for touch panel control, experienced engineers as well as newcomers to the field will find it easier than ever to achieve the ideal mix.

Recallable D-PRE™ preamplifiers support sound quality that will satisfy the most discerning professional ears, while advanced live recording features and seamless operation with high-performance I/O racks give these compact digital mixers capabilities that make them outstanding choices for a wide range of applications. Experience the intuitive control and creative freedom that a truly evolved digital console can provide.

32xAnalogue Input Channels

8xEffects

34 Tracks Max Multitrack Recording

at a glance • Touchscreen & 33 Motorized Faders
• 32 Analog XLR/TRS Combo Mic/Line Inputs
• 2 Analog RCA Pin Stereo Line Inputs
• 16 Analog XLR Outputs
• Recallable D-PRE Microphone Preamps
• Includes Steinberg's Nuendo Live

Yamaha TF Series: Features and Functions Tour

The Tech Spec

Features Specification
Type Digital
Channels 32 - expandable to 48 mixing channels (40 mono + 2 stereo + 2 returns)
Inputs - Mic Preamps 32 x XLR-1/4" combo
Phantom Power 32 x Channels
Inputs - Other 2 x Dual RCA Stereo
Outputs - Main 16 x XLR
Aux Sends 8 x mono, 6 x stereo
Data I/O 1 x RJ-45 (LAN)
Headphones 1 x 1/4"
USB 2 x Type A, 1 x Type B
Computer Connectivity USB (34 x 34)
Remote 1 x 1/4" (Footswitch)
I/O Expansion Slots NY64-D audio interface card (sold separately)
Faders 33 x 100mm Throw
EQ Bands 4-band
Effects 8 Effects + 10 GEQ
Height 8.9"
Depth 23.6"
Width 34.1"
Weight 20 kg
Specifications
Total Channels 32
Max Mic Inputs 32
Computer Interface USB 2.0 Type-C
Mixer Type Digital
Computer Interface Channels 0
Total Aux Sends 0
Subgroup / Bus Outputs 0
Max Line Inputs 0
Analogue Insert Points No
Flying Faders No
Internal FX No
Additional Information
Scan Code LN136264
Model Number TF5
GTIN 4957812560245
