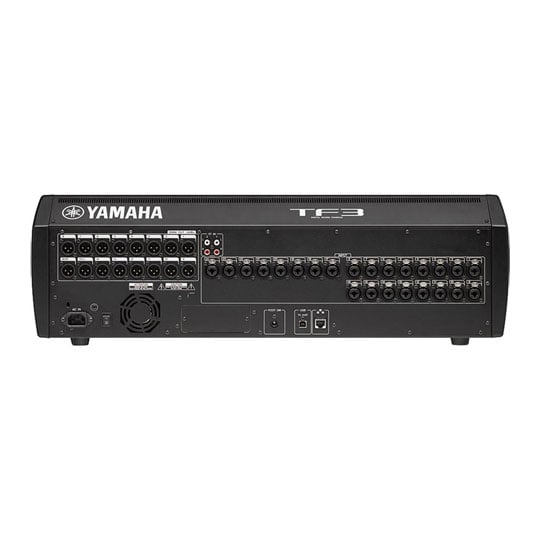

Yamaha TF3 48-channel Digital Mixer
Yamaha TF3, 24-input TF Series Digital Mixer with 48 Mixing Channels, 25 Motorized Faders
Email me when the availability or price changes
48-Channel Digital Mixing Console
Yamaha - TF3
48 input channel, USB with TouchFlow Operation mixerYamaha has always made it a mission to stay in touch with the needs of sound engineers worldwide. The outcome is evident in the success of the recent CL and QL series digital mixing consoles, and the flagship RIVAGE PM10. The key to success has always been in supporting the user’s creativity. Creativity is most effective when unrestricted, and now Yamaha has created a new digital mixing console that gives the user's intuition even freer rein.
TouchFlow Operation™ introduced in the TF series consoles allows the user to respond to the music and artists on stage with unprecedented speed and freedom, taking live sound reinforcement to a new level of refinement. With the TouchFlow Operation interface optimized for touch panel control, experienced engineers as well as newcomers to the field will find it easier than ever to achieve the ideal mix.
Recallable D-PRE™ preamplifiers support sound quality that will satisfy the most discerning professional ears, while advanced live recording features and seamless operation with high-performance I/O racks give these compact digital mixers capabilities that make them outstanding choices for a wide range of applications. Experience the intuitive control and creative freedom that a truly evolved digital console can provide.
24xAnalogue Input Channels
8xEffects
34 Tracks Max Multitrack Recording
at a glance
• Touchscreen & 25 Motorized Faders
• 24 Analog XLR/TRS Combo Mic/Line Inputs
• 2 Analog RCA Pin Stereo Line Inputs
• 16 Analog XLR Outputs
• Recallable D-PRE Microphone Preamps
• Includes Steinberg's Nuendo Live
Yamaha TF Series: Features and Functions Tour
The Tech Spec
| Features | Specification | Type | Digital |
|---|---|
| Channels | 24 - expandable to 48 mixing channels (40 mono + 2 stereo + 2 returns) |
| Inputs - Mic Preamps | 24 x XLR-1/4" combo |
| Phantom Power | 24 x Channels |
| Inputs - Other | 2 x Dual RCA Stereo |
| Outputs - Main | 16 x XLR |
| Aux Sends | 8 x mono, 6 x stereo |
| Busses/Groups | 20 x Aux, 1 x Stereo, 1 x Sub |
| Data I/O | 1 x RJ-45 (LAN) |
| Headphones | 1 x 1/4" |
| USB | 2 x Type A, 1 x Type B |
| Computer Connectivity | USB (34 x 34) |
| Remote | 1 x 1/4" (Footswitch) |
| I/O Expansion Slots | NY64-D audio interface card (sold separately) |
| Faders | 25 x 100mm Throw |
| EQ Bands | 4-band |
| Effects | 8 Effects + 10 GEQ |
| Height | 8.9" |
| Depth | 23.6" |
| Width | 28.2" |
| Weight | 7 kg |
