Portable All-in-One PA System with Bluetooth

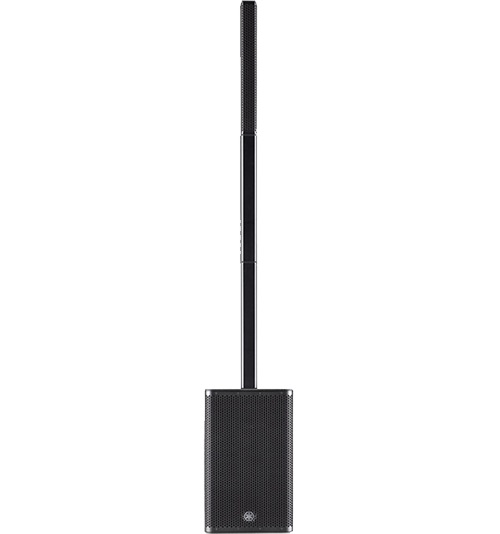

Yamaha - STAGEPAS 1K

Yamaha - STAGEPAS 1K

'Stunningly Simple. Impressively Professional.'Yamaha's STAGEPAS 1K is an all-in-one portable PA system that allows you to quickly and easily transform any location into your stage. Delivering professional level audio performance with a setup so simple it enables aspiring artists to focus on their music and get the most out of their performances.

The STAGEPAS 1K surpasses other portable PAs with the highest standard of sound quality and sound pressure, lightweight cabinet design, professional mixing functions, and simple operability. By adopting a concert-quality mixer and speaker, we have defined a new standard for portable PA by utilizing Yamaha’s unique experience and know-how developed over decades of producing innovative, professional audio equipment from every stage of music engineering and production.

119 dBMax SPL

Bluetooth 5.0Wireless Connectivity

1000WTotal Power

at a glance • 12" Woofer + 10 x 1.5" Cone Line Array
• 3 x Mono + Stereo Input Mixer
• Frequency Response: 37 Hz to 20 kHz
• Single-Knob EQ on Each Channel
• Mode Selection for Speech / Music / Club
• Includes Two Spacers, Cover, Power Cord

Focus On Your Performance

Simple setup and simple control
allows you to focus on your performance
The STAGEPAS 1K comes equipped with a wealth of sound adjustment features, including 1-knob EQ to perform multiple EQ processes simultaneously, and MODE which allows you to adjust optimized compression settings like “Speech” or “Music” to match various applications.

All adjustments can be done simply with one knob, which makes getting the perfect mix fast and easy with no need to learn a complex workflow and allows you to focus on your performance without worrying about time-consuming parameter adjustment.

down
up
up

Best-in-Class Compact Power

consistent performance
over long distances
A 1000 W amplifier drives the array speaker with 10 small-diameter 1.5" units, as well as a class-leading 12" subwoofer. The impressive 170° horizontal and 30° vertical coverage area delivers consistent performance over long distances, projecting uniform, high-quality sound from the front to the rear of the audience.

down
up

Yamaha Portable PA System STAGEPAS 1K

The Tech Spec

Features Specification
Speaker Configuration 1 x 2-Way Loudspeaker with Subwoofer
Number of Input Channels 5 (3 x Mono, 1 x Stereo)
Amplifier Power Rating LF: 810 W Program (at 4 Ohms)
HF: 190 W Program (at 4 Ohms)
Total: 1000 W Program
Amplifier Class Class-D
Enclosure Type Subwoofer: Bass-Reflex
HF Driver 10 x 1.5" / 38.1 mm/tr>
LF Driver 1 x 12" / 30.48 cm Woofer
Crossover 240 Hz
EQ 1 x Contour
Effects 4 x Reverb
Dynamic Processing Compression, Peak Limiter
Frequency Response System: 37 Hz to 20 kHz -10 dB
Maximum SPL 119 dB SPL (Peak)
Coverage Angle 170° H x 30° V
Audio I/O 3 x Combo XLR-1/4" TS Female Balanced/Unbalanced Mic/Line/Hi-Z Input 2 x 1/4" TRS Female Balanced/Unbalanced Line Input 1 x 1/8" / 3.5 mm TRS Female Balanced/Unbalanced Line Input 1 x XLR 3-Pin Male Balanced Line Input 1 x XLR 3-Pin Female Balanced Line/Link Output
Bluetooth 5.0
AC Input Power 110 to 120 VAC, 60 Hz
Power Consumption 25 W (Idle) 85 W (1/8 Power)
AC Power Connector 1 x IEC Input
Dimensions System: 78.74 x 16.46 x 13.15" / 2000 x 418 x 334 mm (Full Assembly) Subwoofer: 21.65 x 16.46 x 13.15" / 550 x 418 x 334 mm Speaker: 22.91 x 3.39 x 2.64" / 582 x 86 x 67 mm Stand: 21.85 x 3.39 x 2.64" / 555 x 86 x 67 mm (Each)
Weight System: 50.71 lb / 23 kg (Full Assembly) Subwoofer: 44.09 lb / 20 kg Speaker: 3.97 lb / 1.8 kg Stand: 1.32 lb / 0.6 kg (Each)
