Yamaha Stagepas 100 Portable PA System

Yamaha - Stagepas 100 Portable PA System, 100 W Class-D Amplifier, 3-Channel Mixer, H90° x V90° Coverage

Thumbnail 1 : Yamaha Stagepas 100 Portable PA System Thumbnail 2 : Yamaha Stagepas 100 Portable PA System Thumbnail 3 : Yamaha Stagepas 100 Portable PA System Thumbnail 4 : Yamaha Stagepas 100 Portable PA System
Scan code: LN137428 Manufacturer code: CSTAGEPAS100UK
Order in the next 1 hr 14 mins and get it tomorrow
£339.00
Get it Tomorrow, 21 MayIn stock
FREE DELIVERY ON YOUR ENTIRE BASKET
From £16.56 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £30.72
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £339.00
Total inc. interest: £368.55
Monthly Payment: £16.56
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £339.00
Total inc. interest: £397.23
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £9.01 / month (APR 19.9%)
Delivery Options
  • By DPD On 21st May to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Portable PA System
Yamaha - Stagepas 100

Yamaha Stagepas 100

EXPAND YOUR RANGE, EXTEND YOUR REACHThe Yamaha STAGEPAS 100 is a portable PA system that finds the perfect balance between high-quality sound and ultimate portability that enables you to turn virtually any location into your own intimate live stage. Available in two versions, one with a battery and one without, the lightweight yet durable design, effort-less operation, and incredible sound of the STAGEPAS 100 helps you reach your audience with the full expression of your performance.

Much more than just a speaker that amplifies your mic or instrument inputs, the impressive STAGEPAS 100 delivers impressive sonic performance by using some of the same technologies found in Yamaha’s high-end professional products. A powerful, high-quality coaxial compression driver combined with Yamaha’s FIR-X filters for the HF and LF crossover deliver sound pressure, precise phase response, and a natural dispersion that will ensure every nuance of your performance is conveyed loud and clear to your audience.

Please note: Battery is NOT included

H90° x V90°Coverage Area

70 Hz - 20 kHzFrequency Range (-10 dB)

120 dBMax SPL

At A Glance • 1.4” HF + 6.5” LF high-quality coaxial compression driver using an FIR filter for the crossover
• 3-channel mixer (2 monaural mic/line + 1 line)
• Compatible with Hi-Z input (Channel 2 only)
• Equipped with a 2-band master EQ
• 100 W Class-D amplifier

Start the Show In Seconds

Yamaha Stagepas 100

Seamless SetupWith an unrivaled ease of operation and a setup that takes just a few seconds, the STAGEPAS 100 will have you sounding great and performing instantly.

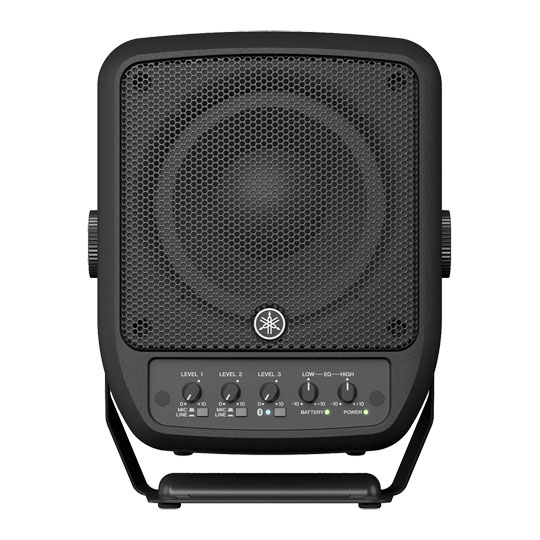

Just turn the power on, connect a micro-phone and your instrument, turn the volume up, and you're all set. The master EQ is right on the front panel making it easy to dial in your sound or adjust settings on the fly.

A PA In the Palm of Your Hand

Yamaha Stagepas 100

anywhere, anytimeWith all the essentials for a compact PA packed into a durable cabinet weighing just 5 kg, the STAGEPAS 100 takes portability to the next level.

Having a personal live stage you can easily carry in one hand makes it possible to set up and play literally anywhere, anytime.

Amazing Features

Yamaha Stagepas 100

Multipoint Bluetooth® connectivityThe STAGEPAS 100 also comes equipped with multipoint supported Bluetooth functionality for even more convenience to your set up and operation with wireless connection for music/audio playback using smartphones and tablets.

Yamaha Stagepas 100

The right directionEasily control your coverage area using the carrying handle that doubles as a stand when the unit is placed on the floor. The attachment screws can be adjusted to change the angle of inclination to direct your sound exactly where it needs to go.

Yamaha Stagepas 100

Mounting possibilitiesThe handle of the STAGEPAS 100 also features a 3/8" diameter screw hole that allows for mounting on a microphone stand for more versatile sound dispersion options.

Yamaha Stagepas 100

Whenever. Wherever.The optional dedicated BAG-STP100 carrying bag features internal pockets for storing adapters, cables etc., as well as a padded shoulder strap for safe and easy transport to any location.

Yamaha Portable PA System STAGEPAS 100 - Overview

The Tech Spec

Features Specification
System Type 2-way bi-amp powered speaker with mixer

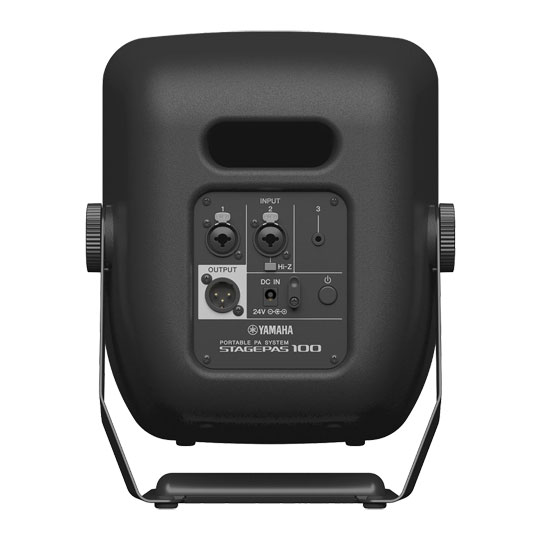

Inputs Input 1: Combo (mic/line), Input 2: Combo (mic/line), Input 3: Stereo minijack (line)
Outputs 3 x XLR3-32 (Input 1-3 Mix)
Bluetooth Version 5.0, A2DP (SBC, AAC), Class 1
Mixing Channels 3
Input Channel Functions Channel 2: Hi-Z
Output Channel Functions 2-band EQ
Speaker Type Coaxial speaker with compression driver
Frequency Range (-10 dB) 70 Hz - 20 kHz
Coverage Area H90° x V90°
Crossover 1.8 kHz (FIR-X)
Maximum Output Level 120 dB SPL
LF Driver 6.5" cone, 1.7" voice coil
HF Driver 1" throat compression driver, 1.4" voice coil
Amplifier Class Class D
Power Rating 100 W (LF: 93 W, HF: 7 W)
Cooling Natural convection (no fan)
Power Consumption 10 W (idle), 30 W (1/8 power)
Power Requirements 100 - 240 V, 50/60 Hz
Cabinet Material Polypropylene
Handle 1 x bottom handle (rotatable)
Flying and Mounting Hardware 1 x 3/8", depth 12 mm (centre of handle)
Included Accessories 1 x power cord, 1 x PA-500 AC adaptor
Dimensions 239 x 310 x 215 mm (9.5" x 12.3" x 8.5"), with handle
Weight 5.2 kg (11.5 lbs) without AC adaptor
Specifications
Number of Input Channels 3
Frequency Response -3dB N/A
Frequency Response -10dB 70 Hz - 20 kHz dB
Max SPL 120 dB
Power rating (Peak) 0 Watts (Peak)
Power rating RMS 100 Watts (RMS)
Speaker size 6.5 Inches
Enclosure Type N/A
Dimensions 239 x 310 x 215
Net weight 5.2 KG
Shipping weight 0 KG
Connectivity
  • 1 x 3.5mm stereo jack
  • 3 x XLR / Jack Combi
Connectivity (Output) 2 x XLR
Colour Black
Bluetooth Yes
Battery Powered Yes
Wifi No
App control No
Rigging Points No
Pole Mountable No
Integrated Bracket No
Sub Woofer No
Built in DSP No
Front of House No
Floor Monitor No
Additional Information
Scan Code LN137428
Model Number CSTAGEPAS100UK
GTIN 4957812687263
