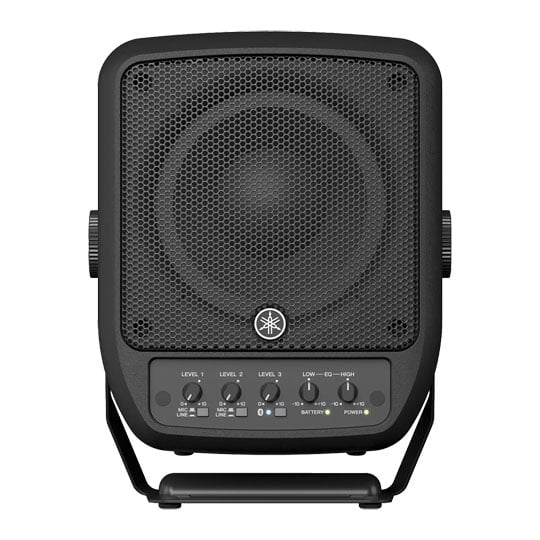

Yamaha Stagepas 100BTR Portable Battery Powered PA System
Yamaha - Stagepas 100BTR Portable Battery Powered PA System, 100 W Class-D Amplifier, 3-Channel Mixer
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
Suggested Alternatives
Bose - S1 Pro + Battery powered PA System - BlackBose S1 Pro + Battery powered PA System - Black
LN136803
Customer Review (1)
Portable Battery Powered PA System
Yamaha - Stagepas 100BTR
EXPAND YOUR RANGE, EXTEND YOUR REACHThe Yamaha STAGEPAS 100BTR is a portable PA system that finds the perfect balance between high-quality sound and ultimate portability that enables you to turn virtually any location into your own intimate live stage. Available in two versions, one with a battery and one without, the lightweight yet durable design, effort-less operation, and incredible sound of the STAGEPAS 100BTR helps you reach your audience with the full expression of your performance.
Much more than just a speaker that amplifies your mic or instrument inputs, the impressive STAGEPAS 100BTR delivers impressive sonic performance by using some of the same technologies found in Yamaha’s high-end professional products. A powerful, high-quality coaxial compression driver combined with Yamaha’s FIR-X filters for the HF and LF crossover deliver sound pressure, precise phase response, and a natural dispersion that will ensure every nuance of your performance is conveyed loud and clear to your audience. With this model, an internal lithium-ion battery is included.
H90° x V90°Coverage Area
70 Hz - 20 kHzFrequency Range (-10 dB)
120 dBMax SPL
At A Glance
• 1.4” HF + 6.5” LF high-quality coaxial compression driver using an FIR filter for the crossover
• Included rechargeable battery for up to 6 hours of battery life
• 3-channel mixer (2 monaural mic/line + 1 line)
• Compatible with Hi-Z input (Channel 2 only)
• Equipped with a 2-band master EQ
• 100 W Class-D amplifier
Start the Show In Seconds
Seamless SetupWith an unrivaled ease of operation and a setup that takes just a few seconds, the STAGEPAS 100BTR will have you sounding great and performing instantly.
Just turn the power on, connect a micro-phone and your instrument, turn the volume up, and you're all set. The master EQ is right on the front panel making it easy to dial in your sound or adjust settings on the fly.
A PA In the Palm of Your Hand
anywhere, anytimeWith all the essentials for a compact PA packed into a durable cabinet weighing just 5 kg, the STAGEPAS 100BTR takes portability to the next level.
Having a personal live stage you can easily carry in one hand makes it possible to set up and play literally anywhere, anytime.
Amazing Features
6 Hours of non-stop performanceThe STAGEPAS 100BTR is compatible with large-capacity lithium-ion batteries capable of up to 6 hours of continuous operation, delivering reliable performance in environments when there is no power source available.
Multipoint Bluetooth® connectivityThe STAGEPAS 100BTR also comes equipped with multipoint supported Bluetooth functionality for even more convenience to your set up and operation with wireless connection for music/audio playback using smartphones and tablets.
The right directionEasily control your coverage area using the carrying handle that doubles as a stand when the unit is placed on the floor. The attachment screws can be adjusted to change the angle of inclination to direct your sound exactly where it needs to go.
Mounting possibilitiesThe handle of the STAGEPAS 100BTR also features a 3/8" diameter screw hole that allows for mounting on a microphone stand for more versatile sound dispersion options.
Whenever. Wherever.The optional dedicated BAG-STP100 carrying bag features internal pockets for storing adapters, cables etc., as well as a padded shoulder strap for safe and easy transport to any location.
Yamaha Portable PA System STAGEPAS 100 - Overview
The Tech Spec

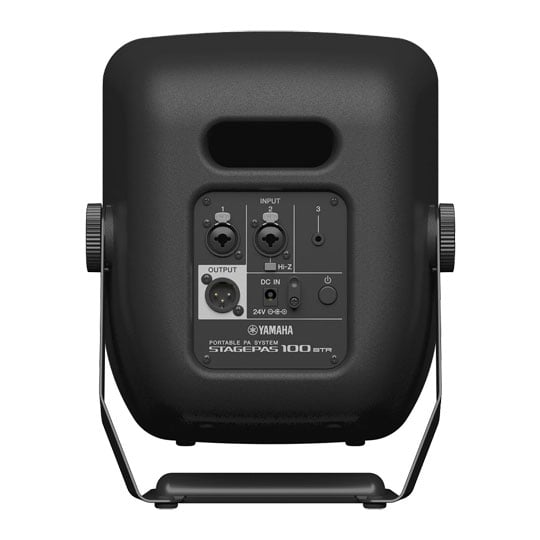

| Features | Specification | System Type | 2-way bi-amp powered speaker with mixer |
|---|---|
| Inputs | Input 1: Combo (mic/line), Input 2: Combo (mic/line), Input 3: Stereo minijack (line) |
| Outputs | 3 x XLR3-32 (Input 1-3 Mix) |
| Bluetooth | Version 5.0, A2DP (SBC, AAC), Class 1 |
| Mixing Channels | 3 |
| Input Channel Functions | Channel 2: Hi-Z |
| Output Channel Functions | 2-band EQ |
| Speaker Type | Coaxial speaker with compression driver |
| Frequency Range (-10 dB) | 70 Hz - 20 kHz |
| Coverage Area | H90° x V90° |
| Crossover | 1.8 kHz (FIR-X) |
| Maximum Output Level | 120 dB SPL |
| LF Driver | 6.5" cone, 1.7" voice coil |
| HF Driver | 1" throat compression driver, 1.4" voice coil |
| Amplifier Class | Class D |
| Power Rating | 100 W (LF: 93 W, HF: 7 W) |
| Cooling | Natural convection (no fan) |
| Power Consumption | 10 W (idle), 30 W (1/8 power) |
| Power Requirements | 100 - 240 V, 50/60 Hz |
| Battery Type | Rechargeable lithium ion battery pack |
| Battery Capacity | 60 Wh |
| Operating Time | Maximum 6 hours, 1/16 power continuous 5 hours |
| Charging Time | Approx. 2.5 hours |
| Cabinet Material | Polypropylene |
| Handle | 1 x bottom handle (rotatable) |
| Flying and Mounting Hardware | 1 x 3/8", depth 12 mm (centre of handle) |
| Included Accessories | 1 x power cord, 1 x PA-500 AC adaptor |
| Dimensions | 239 x 310 x 215 mm (9.5" x 12.3" x 8.5"), with handle |
| Weight | 5.2 kg (11.5 lbs) without AC adaptor |
