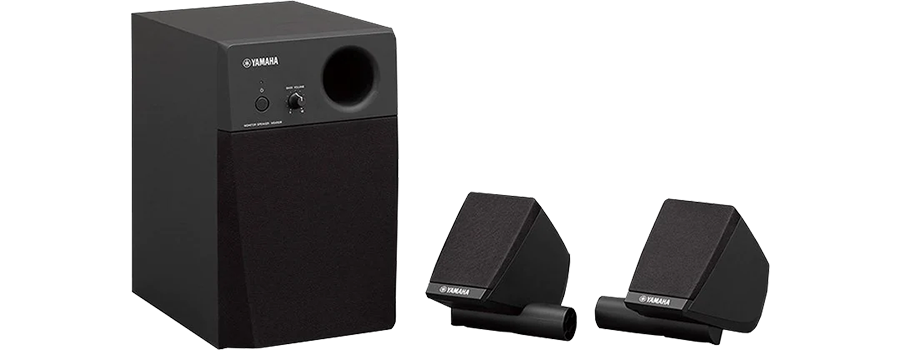

Yamaha MS45DR Electronic Drum Monitor System
Yamaha - MS45DR, Electronic Drum Monitor System, 20 W Satellite Speakers and Subwoofer
Electronic Drum Monitor System
Yamaha - MS45DR
2.1-channel stereo monitor system for realistic sound experienceThe Yamaha MS45DR is a 2.1-channel electronic drum monitor system for home use. This simple and compact unit is specially designed to authenticly reproduce dynamic drum sounds. Enjoy superb sound quality without the isolation of headphones, providing open acoustic drum feeling that you can share with family and friends. The subwoofer, together with the midrange right and left satellite speakers, can reproduce a wide range of sounds, including everything from the resounding lows of the bass drum to the highs of the cymbals. Combined with stereo positioning, this makes for a highly-realistic sound experience like that of acoustic drums. The MS45DR allows you to enjoy superb sound quality without an isolated feeling of headphones, providing open acoustic drum impression that you can share with family and friends.
At a glance
• 20 W satellite speakers and subwoofer
• The satellite speakers can be mounted on general electronic drum racks
• Cables included for easy setup
Compatible With 1.5" Diameter Racks
seamless integrationThe 20 W satellite speakers come equipped with 2 cm dome-shaped tweeters and 8 cm midrange speaker units, reproducing high-quality mid- to high-range sounds.
The satellite speakers can be mounted on electronic drum racks compatible with the 1.5-inch diameter pipes commonly incorporated into racks for electronic drum kits. Clamps have been added to the arms on the bottom, so you can adjust the angle of the speakers.

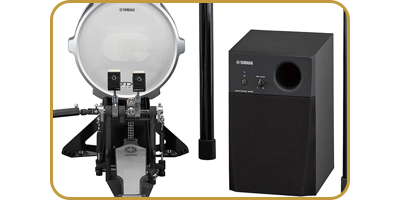

Rich Bass From The 20 W Subwoofer
accurate reproductionThe 16 cm cone-shaped 20 W subwoofer speaker units reproduce accurate, low-range sounds of the bass drum and floor tom, delivering a powerful sound and feel that is perfect for realistic-sounding performances.
Easy Volume Adjustment
simple controlTogether with a master volume that allows you to adjust the overall volume, a bass volume control on the subwoofer allows you to adjust the volume of the subwoofer alone, with simple controls that allow you to shape the sound.
Cables Included For Easy Setup
simple connectivityThe included cables easily connect the MS45DR to electronic drum trigger modules. This simple system does not require complicated wiring, allowing you to complete a electronic drum monitor environment by attaching one cable each to the trigger modules, subwoofers, amplifier units, and satellite speakers.
If using the DTX402 series or any other electronic drum product with only one output jack, you will need a Y cable (phone (male) phone (female) ×2) to connect to the trigger module's phone jack (standard phone jack).
Yamaha MS45DR | Overview Video
The Tech Spec
| Features | Specification | Power Consumption | 24 W |
|---|---|
| Power Supply | 100 V-240 V~, 50/60 Hz |
| Output Power | Satellite speakers: 20 W + 20 W (2 kHz, 4 Ω) Subwoofer: 20 W (60 Hz, 8 Ω) |
| Frequency Response | Satellite speakers / Subwoofer speaker: 40–20000 Hz (-10 dB) |
| Speaker Unit | Satellite speakers (Tweeter): 2 cm (0.8") dome (5 Ω) Satellite speakers (Midrange): 8 cm (3") cone (4.5 Ω) Subwoofer: 16 cm (6.5") cone (8 Ω) |
| Dimensions (W x H x D) | Satellite speakers: 110 × 183 × 138 mm (4 5/16" × 7 3/16" × 5 7/16" ) not including holder Subwoofer: 221 × 351 × 343 mm (8 11/16" × 13 13/16" × 13 1/2") |
| Weight | Satellite speakers: 1.0 kg (2 lb, 3 oz) × 2 Subwoofer: 6.5 kg (14 lb, 5 oz) |
| Accessories | Pipe clamps* (2), combination cable (8 pin mini DIN to phone and RCA pin) (1), cable band (1), power cord (1), Owner’s Manual (1) *Can be attached to straight vertical pipes of 1.5-inch (38.1-mm) diameter. |
