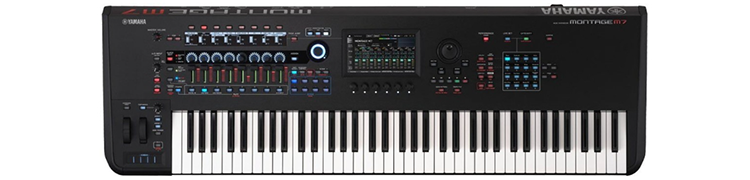

Yamaha Montage M7 76-key Synthesizer
Yamaha - Montage M7, 76-key Synthesizer with Semi-weighted FSX Keyboard, Channel Aftertouch, Ribbon Controller
Email me when the availability or price changes
Finance this product
- From £107.43 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £95.16 / month (APR 15.9%)
Yamaha - Montage M7 Synthesizer
Please note: This Montage range is sold on behalf of Yamaha Music Europe. As such, they are subject to Yamaha's 'General Terms' and also the 'Yamaha Data Protection Information' policy.
General Terms Data Protection
featuring Motion Control for expressive sound-shaping possibilitiesThe MONTAGE M7 is Yamaha's flagship 76-key synthesizer, bringing a huge range of synthesis and performance capabilities together in an instrument designed equally for the stage and studio. Its 76-key FSX keyboard features initial touch and channel aftertouch, giving you the expressive control needed for everything from detailed synth parts to layered performances and splits.
At the heart of the MONTAGE M7 is Yamaha's Motion Control Synthesis Engine, combining three distinct sound engines: AWM2 for detailed sampled instruments and waveforms, FM-X for sophisticated eight-operator FM synthesis, and AN-X for analogue-style synthesis. AN-X brings three oscillators, noise generation, dual filters and a range of classic synth functions to the MONTAGE M platform, while AWM2 and FM-X provide plenty of scope for everything from acoustic sounds and pads to complex digital textures and aggressive modern tones.
Motion Control gives you hands-on control over how these sounds behave and evolve. The Super Knob, assignable controls and Motion Sequencer allow multiple parameters to be manipulated simultaneously, making it possible to create sounds that develop and change as you play rather than simply relying on static presets. The 7" colour touchscreen also provides a straightforward way of navigating the MONTAGE M's deeper editing and performance functions. The M7 is particularly well suited to players who need more room for splits and layered sounds without stepping up to a full 88-key instrument. It supports 16 internal Parts and offers up to 256-note AWM2 polyphony, 128-note FM-X polyphony and 16-note AN-X polyphony. There's also 3.7GB of user flash memory, alongside 11.29GB of preset waveform memory and a library of more than 3,400 Performances.
Connectivity is equally comprehensive. You get balanced main and assignable outputs, A/D inputs, MIDI I/O, USB connectivity and a dedicated headphone output. The USB connection can also function as a multichannel audio interface, providing up to 32 outputs and six inputs, making it possible to integrate the MONTAGE M7 directly into a computer-based recording setup for MIDI and multichannel audio work. With its combination of three synthesis engines, expressive 76-key action, deep real-time control and extensive studio connectivity, the MONTAGE M7 is built for players who want a single instrument capable of handling demanding live performances as well as serious sound design and production work.
at a glance
• Three Oscillators with 5 waveforms (Saw 1, Saw2, Triangle, Square and Sine) and Noise Generator
• Two filters with 10 filter types
• Pulse width modulation
• Oscillator Self Sync
• Ring modulation, FM, and wave shaper
• Amp EG with drive
• LFO for both amplitude and filter
• Voltage drift and aging settings to simulate vintage synth behaviour
Unique Expression
NEW PERFORMANCE
CONTROLSMONTAGE M introduces new performance controls: a 5-segment ribbon controller with dedicated HOLD button, a new KEYBOARD HOLD button for sustaining chords while using knobs to edit, and a Portamento on/off button and dedicated Portamento time knob.
GEX ACTION WITH POLYPHONIC AFTERTOUCH (MONTAGE M8x ONLY)Available exclusively on MONTAGE M8x, GEX Action elevates your performance and sound creation with Polyphonic Aftertouch – a revered synth control found in the legendary CS-80 and DX1. Polyphonic Aftertouch allows you to individual modulate held notes with pressure. GEX also provides key repetition behavior typically found in grand pianos.
DEDICATED
KEYBOARDYou’ll find dedicated Keyboard, Part and Scene Control buttons to control 16 Parts per Performance. This intuitive control, particularly beneficial for live performances, improves overall usability and adds dimension to each Performance.
Your Workflow. Streamlined.
EXPANDED SOFTSYNTH PLUGIN (ESP)A game-changer for musicians, the Expanded Softsynth Plugin (ESP) replicates the MONTAGE M in your favorite Digital Workstation (DAW). Free for all registered MONTAGE M owners, ESP allows you to create, edit and mix MONTAGE M Performances anywhere you happen to be – without the hardware – offering an unprecedented level of stage and studio integration. The first version will have all the MONTAGE M sound while being limited to basic editing. The full version will be available in Summer 2024.
FASTER, MORE INTUITIVE NAVIGATIONUpgraded navigation enables quick, intuitive sound editing and operation. You’ll find features like a new 512 x 64 LCD screen, 6 touchscreen display knobs, and a PAGE JUMP button that moves what’s in the LCD screen over to the larger 7” TFT Color touchscreen for deeper editing. And the dedicated Navigation button shows an overview of a Performance. Just touch a graphical object in the screen to jump to that parameter for deeper editing. The dedicated Navigation button allows you go directly from the “surface” of a sound to the deepest part.
USB MIDI AND MULTICHANNEL AUDIO INTERFACESimplifying your studio setup, MONTAGE M offers a USB MIDI and multichannel 32 output/6 input audio interface. Streamline MIDI recording, virtual instrument monitoring, and multi-track audio recording through a single USB cable, so you can spend more time being creative.
Yamaha | Montage M Sound Demo
The Tech Spec
| Features | Specification | Type | Keyboard Synth |
|---|---|
| Sound Engine | AWM2, FM-X, AN-X |
| Number of Keys | 76 |
| Type of Keys | FSX Semi-weighted |
| Aftertouch | Yes, Channel |
| Velocity Sensitive | Yes |
| Other Controllers | Pitchbend, Mod wheel, Ribbon Controller |
| Polyphony | AWM2: 256 notes, FM-X: 128 notes, AN-X: 16 notes |
| Number of Presets | 3369 factory |
| Oscillators | 128 Elements (AMW2), 8 operators, 88 algorithms (FM-X), 3 x oscilators, 1 x noise (AN-X) |
| Filter | 18 types |
| Sequencer | Loop-based Pattern Sequencer |
| Memory | 9.97 GB Preset Memory, 3.8GB User Memory |
| Audio Inputs | 2 x 1/4" TS (A/D input: L/Mono, R) |
| Audio Outputs | 2 x 1/4" TRS (Assignable output: L, R), 2 x 1/4" TRS (Output: L/Mono, R) |
| Headphones | 1 x 1/4" |
| USB | 2 x Type A (Device), 1 x Type B (Host) |
| MIDI I/O | In, Out, Thru, USB |
| Pedal Inputs | 2 x 1/4" (Foot Switch), 2 x 1/4" (Foot Controller 1, 2) |
| Power Source | Standard IEC AC Cable |
| Height | In, Out, Thru, USB |
| Width | 49" |
| Depth | 15.56" |
| Weight | 37.5 lbs |
