Yamaha MODX M6 Synthesizer
Yamaha MODX M6, 61-Note Synthesizer Keyboard, AN-X Engine, 286 Note Polyphony
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
Suggested Alternatives
Yamaha MODX M7, 76-Note Synthesizer Keyboard, AN-X Engine, 286 Note PolyphonyYamaha MODX M7 Synthesizer
LN165080
No customer review£1,470.00
Synthesizer Keyboard
Yamaha - MODX M6
Take your performance anywhereDesigned for working keyboardists, the Yamaha 61-key MODX M6 delivers exceptional sound, expressive control and optimized workflow in a lightweight design that’s ideal for stage or studio. Featuring three engines that create a stunning variety of sounds, as well as improved keyboard action for better playability, MODX M elevates expression everywhere. Experience realism and detail with the MODX M Advanced Wave Memory (AWM2). Offering up to 128 Elements per Part, AWM2 allows for more layers and articulations, giving you an expansive canvas for sound creation, especially for “nameable” sounds such as piano and strings.
You’ll find dedicated Part and Scene Selection buttons to control 8 Parts per Performance. Particularly useful for live performances, this intuitive control improves overall usability and adds dimension to each Performance. The MODX M Knobs, Super Knob, Pitch Bend, Mod Wheel and Sound Engine, are now High Resolution. Because of the fine resolution, you’ll find the MODX M performs smoother than its predecessors. Experience a new level of sound design with this groundbreaking engine. You’ll interact with sound like never before using its powerful tools.
Amazing Features
• 61 Key Semi-weighted FSB Keyboard
• AN-X Engine
• 268 Notes total Polyphony
• High Resolution Control
• Motion control Synthesis Engine
Expanded Creativity
EXPANDED SOFTSYNTH PLUGIN (ESP)Free for all registered MODX M owners, the Expanded Softsynth Plugin (ESP) replicates MODX M in your favorite Digital Audio Workstation (DAW). ESP lets you create, edit and mix performances anywhere you happen to be – without the hardware – offering an unprecedented level of stage and studio integration.
FASTER, MORE INTUITIVE NAVIGATIONUpgraded navigation enables quick, intuitive sound editing and operation. You’ll find features like a colour touch screen, 6 display knobs and Stereo A/D input with 2 insertion effects.
USB MIDI 2.0 AND MULTICHANNEL AUDIO INTERFACESimplifying your studio setup, MODX M offers a USB MIDI and multichannel 10 output/4 input audio interface in 44.1kHz. Streamline MIDI recording, virtual instrument monitoring and multi-track audio recording through a single USB cable so you can spend more time being creative
CUBASE AICubase AI provides the basic tools for recording, editing and mixing - from the initial idea to the final masterpiece. It’s the perfect entry into the world of Digital Audio Workstations (DAW), offering powerful, yet easy-to-use software tools for all genres.

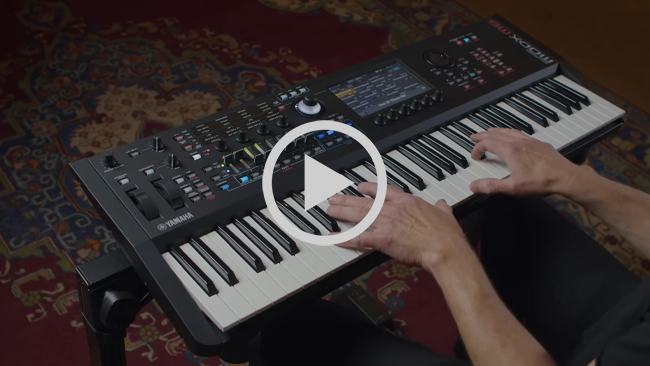

Yamaha | MODX M | Sound Demo
The Tech Spec
| Features | Specification | Size/Weight | Dimensions (W x D x H): 882 mm (34-3/4") × 347 mm (13-11/16") × 117 mm (4-5/8") Weight: 6.6 kg (14 lb, 9 oz) |
|---|---|
| Keyboard | Number of Keys ~ 61 Type ~ Semi-weighted FSB Keyboard Initial Touch ~ Yes Aftertouch ~ No |
| Tone Generator | Tone Generator - Motion Control Synthesis Engine AMW2: 128 Elements (max.), FM-X: 8 Operators, 88 Algorithms, AN-X: 3 Oscillators, 1 Noise Maximum Polyphony - AWM2: 128 (max.; stereo/mono waveforms), FM-X: 128 (max.), AN-X: 12 (max.) Multi Timbral Capacity - 16 Parts (internal), Audio Input Parts (A/D*1, USB*1) *1 stereo Part Wave - Preset: 10.7 GB (when converted to 16-bit linear format), User: 1.9 GB Performance - 3,427 Filter - 18 types Effects - Reverb x 13 types, Variation x 88 types, Insertion A x 88 types*2, Insertion B x 89 types*3, Master Effect x 26 type, *2 A/D part insertion x 83 types *3 Part 2~16: 88 type, A/D part insertion x 83 types (Preset settings for parameters of each effect type are provided as templates) Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands) |
| Performance Recorder | Note Capacity ~ 1 Song/Pattern: Approx. 130,000 notes, Store area: Approx. 520,000 notes (Pattern); approx. 520,000 notes (Song) Note Resolution ~ 480 ppq (parts per quarter note) Tempo (BPM) ~ 5 – 300 Sequence formats ~ MONTAGE M/MODX M original format, SMF formats 0, 1 Arpeggio ~ Parts: 8 Parts simultaneous (max.), Preset: 10,922 types or more, User: 256 types |
| Sequencer | Patterns ~ 128 patterns Pattern tracks ~ 16 Sequence tracks Pattern Recording type ~ Real time replace, Real time overdub Songs ~ 128 songs Song tracks ~ 16 Sequence tracks, Tempo track, Scene track Song recording type ~ Real time replace, Real time overdub, Real time punch in/out |
| Functions | USB audio interface ~ [Sampling Frequency = 44.1 kHz] Input: 4 channels (2 stereo channels), Output: 10 channels (5 stereo channels) [Sampling Frequency = 44.1kHz / 48kHz / 96kHz] Input: 2 channels (1 stereo channel), Output: 2 channels (1 stereo channel) Controllers ~ Master Volume, A/D Input Gain knob, Pitch Bend wheel, Modulation wheel, Control Slider x 8, Knob x 4, Super knob, Display knob x 6, Portament knob, Data Dial, Assignable swich x 2, MSEQ trigger switch, Portamento switch, Keyboard hold switch Display ~ 7" TFT Color Wide VGA LCD touch screen Connectors - [USB [TO DEVICE], USB [TO HOST], MIDI [IN]/[OUT], FOOT CONTROLLER [1]/[2], FOOT SWITCH [SUSTAIN]/[ASSIGNABLE], OUTPUT [L/MONO]/[R] (6.3 mm, standard phone jacks), [PHONES] (6.3 mm, standard stereo phone jack), A/D INPUT [L/MONO]/[R] (6.3 mm, standard phone jacks) Power Consumption - 119 W (When using PA-300C AC adaptor) Accessories - AC adaptor: PA-300C, Quick guide, Cubase AI Download Information, Expanded Softsynth Plugin for MONTAGE M/MODX M Download Information, About downloading manuals, Welcome card Live Sets - PPreset: 256, User: 2,048 |
