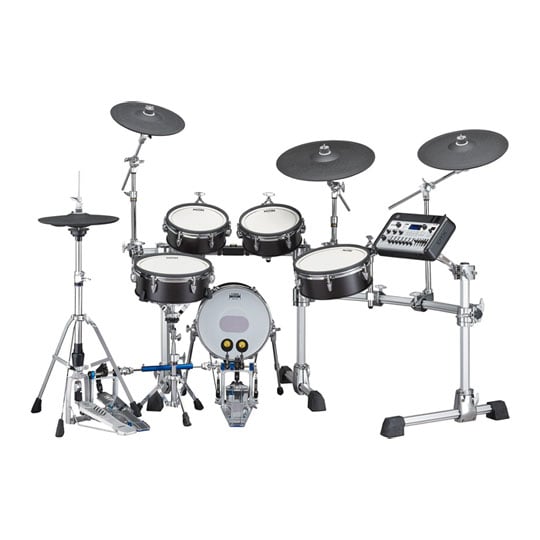

Yamaha DTX10K-X Electronic Drum Kit - Black Forest Finish
Yamaha - DTX10K-X Electronic Drum Kit with DTX-PROX Module (Black Forest)
Electronic Drum Kit
Yamaha - DTX10K-X
(Black Forest)
Please note: Kick Pedals are NOT INCLUDED - image used as an example only.
These kits are delivered directly from Yamaha whilst stocks last.
the beauty of real drum soundsThe Yamaha DTX10 series is the flagship of the DTX line-up, combining the functionality of electronic drums with the pure beauty of their acoustic counterparts. Featuring real drum sounds and real room ambience recorded in world-class studios, with playability that allows you to create sounds intuitively, inspiring feel and expressiveness, and the true beauty of real birch shells with the same finishes used on acoustic drums, the DTX10 series was born from the technology and sensibilities that Yamaha has cultivated over its many years of crafting drums.
Amazing Features
• Faithfully reproduces real drum sounds and real-room ambience recorded in world renowned studios
• AMBIENCE, COMP, and EFFECT Kit Modifier knobs that allow you to create your own unique sounds

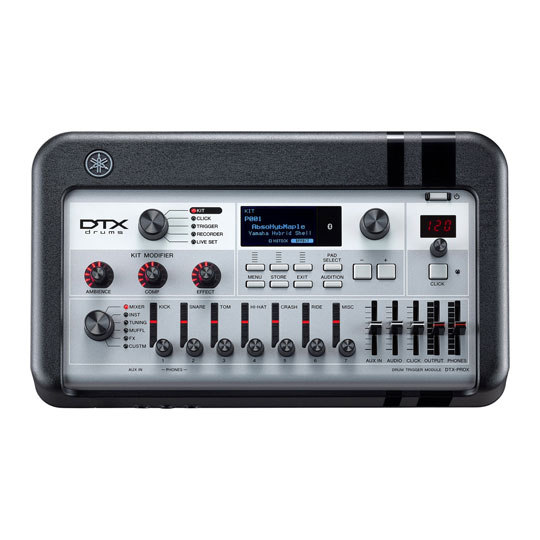

• LED rotary faders that allow you to change many settings intuitively, accurately and quickly
• Yamaha's original TCS heads achieve a comfortable, natural feel and rebound
• Beautiful wood shells that are built and finished at Yamaha acoustic drum factories
• Snare pad and ride cymbal are equipped with a hit point detection function
Superbly Playable
full range of soundReproducing the way an acoustic drum behaves when hit is a main factor in the playability of electronic drums. These electronic drums feature a sound module that captures and reproduces the full range of sound from the initial attack to the final cutoff, all based on samples of authentic drums tuned by professional engineers and drummers. Yamaha has undertaken an exhaustive investigation of how drums respond when hit, leveraging this information to achieve a truly faithful representation of drum kit behavior.
Professional drummers from around the world have also evaluated the performance of the DTX-PROX, allowing Yamaha to improve its expressive capabilities still more. Yamaha’s expertise as a manufacturer of musical hardware has allowed us to offer combinations of expertly crafted modules and pads that deliver superb playability.

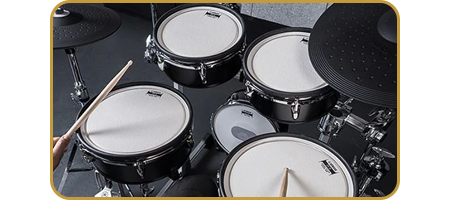

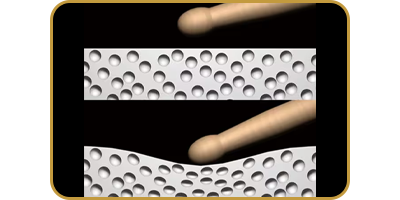

Original TCS heads
improved responseYamaha TCS (Textured Cellular Silicone) heads use a foam silicone material that contains numerous air bubbles, providing accurate firmness and rebound. The air bubbles inside serve as a cushion, softening the impact sound and minimizing strain on wrists and elbows. The head surface is just like that of a coated head, and prevents the sticks from sliding.
Additionally, a unique floating structure is employed to prevent the head and body parts from coming into direct contact. No vibration is transferred to other parts of the head, and thus quietness and sensitivity are improved.

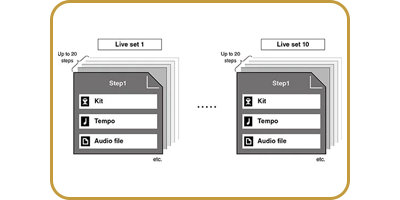

Live Set Function That Instantly Recalls Settings
multiple kit combinationsThe DTX-PROX is equipped with a "Live Set" function allows you to freely arrange and set various combinations of kits, tempos, and audio files or backing tracks, and recall them with a single touch, making it particularly useful for live venues or for live streaming events.
It also allows for various setups, including the Wav & Click Sync function that adds click settings to audio files and follows them for playback, adds a pre-count, and stops the click after a pre arranged time.

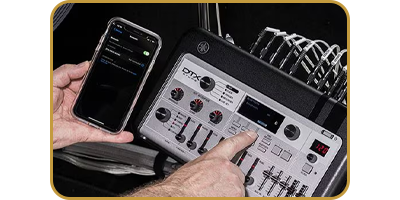

Connect to Bluetooth
record performances to USB memoryThe Bluetooth function of DTX-PROX allows you to wirelessly connect to smart devices, portable music players, and computers and have fun playing drums along with the audio.
USB memory can also be used to record audio from not only devices connected via Bluetooth, but also devices connected by AUX or USB cables. You can also record your own drum performances over the songs being played. (Availability of Bluetooth audio varies by country.)

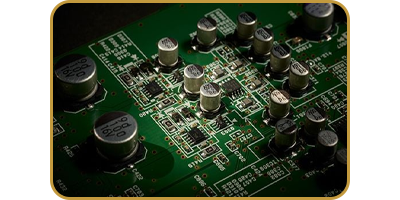

Professional Grade Headphone Amp
high-fidelity soundYamaha know that it is incredibly important that drummers can hear themselves clearly, so the DTX-PROX module comes equipped with a high precision, low distortion, low noise, and high-power headphone amplifier.
This circuitry delivers high-fidelity sound directly to the player, has been developed exclusively for electronic drums, and it envelops the player in a realistic sound stage.

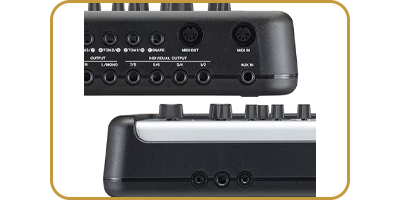

Connections For Every Possible Application
flexible routingThe DTX-PROX features 8 INDIVIDUAL OUTPUTS and a matrix that allows routing to any output. The two AUX IN sockets are ideal for receiving monitor sound from a PA system, connecting to other musical instruments (rear side), or connecting to smart devices (front side).
The DTX-PROX offers both a standard jack and a mini jack headphone outputs, allowing for highly flexible routing, such as outputting clicks and AUX IN sounds only to the headphones. The USB port can be directly connected to a computer or smart device to send and receive audio data and MIDI.
An Extensive Range Of Training Functions
supports drummersThe best practice functions featured in previous DTX models are also found in the DTX-PROX.
Along with the sophisticated programmable metronome, the module offers a comprehensive recorder function, 10 training functions that are ideal for players of all standards, as well as 37 training songs that allow you to learn various genres.
All drummers will find the DTX10 training functions a useful aid for daily practice.
Includes Cubase AI
modern music production softwareThe DTX-PROX comes with a download code for the latest version of "Cubase AI" the powerful music production software.
By connecting the DTX-PROX to your computer with a USB cable, all recording, editing, and mixing tasks, that are found in modern music production can be handled by the one software program.
The Tech Spec

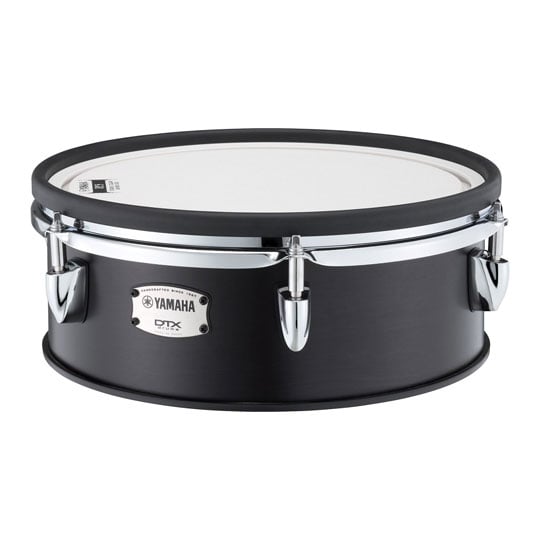

| Features | Specification | Drums | Snare: XP125SD-X (12 inch TCS pad with 2 zone) Tom Pad: XP105T-X (10 inch TCS pad with 2 zone) Floor Tom Pad: XP125T-X (12 inch TCS pad with 2 zone) Kick Pad: KP128 (12-inch Mesh pad with Multilayer cushion) Hi-hat Pad: RHH135 (13-inch pad with 2 zone) Crash cymbal 1: PCY135 (13-inch pad with 3 zone) Crash cymbal 2: PCY155 (15-inch pad with 3 zone) Ride cymbal: PCY175 (17-inch pad with 3 zone) Hi-hat Stand: HS740A |
|---|---|
| Footprint (average) | 1,100 mm x 1,600 mm |
| Weight | 46.77 kg/tr> |
| Snare Stand | SS662 (Snare Stand for 12") |
| Tone Generator | Width: 342 mm (13-7/16 in) |
| Total Harmonic Distortion | <0.005% (typical) |
| Height | 196 mm (7-11/16 in) |
| Depth | 66 mm (2-5/8 in) |
| Weight | 2.0 kg (4 lb 7 oz) |
| Maximum Polyphony | 256 notes |
| Effects | For each Inst: EQ / Comp / Transient / Insertion (*1), For each Kit: Ambience / Effect 1 / Effect 2 and Master Comp / Master Effect, For overall: Master EQ / Phones EQ (*1) Insertion effects can be used only for specific Inst. |
| Drum kits | Preset: 70 Kits, User: 200 Kits |
| Voices | 733 |
| Click Sets | 30 |
| Tempo | 30 to 300 BPM, Tap Tempo supported. Voice Guide |
| Time signatures | 1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16 |
| Subdivisions | Accents, quarter notes, eighth notes, sixteenth notes, and eight-note triplets |
| Others | Individual click volume control, wav import, timer |
| Training Types | 10 |
| Songs | Preset: 37 songs, User: 1 song |
| Audio Files - Import limit | 1,000 files |
| Maximum loadable sample time | 50 minutes 40 seconds (44.1 kHz, 16 bit, mono), 25 minutes 20 seconds (44.1 kHz, 16 bit, stereo) |
| Sample Format | WAV |
| Recording time Internal memory | Maximum of 90 seconds |
| Recording time USB flash drive | Maximum of 90 minutes per file |
| Format | Record/playback: WAV (44.1 kHz, 16-bit, stereo) |

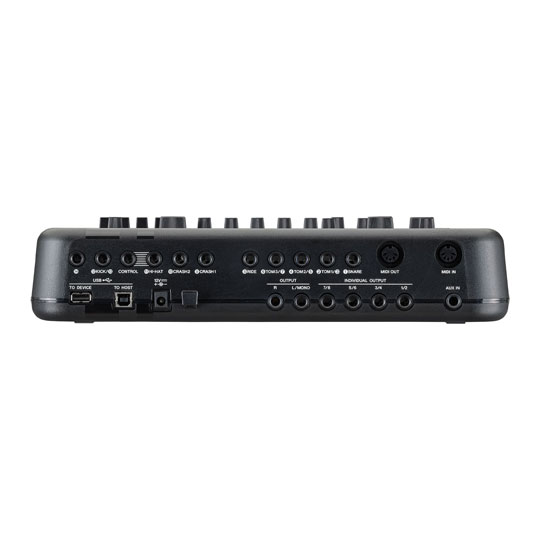

| Connectors | DC IN: DC IN (+12V) Headphones: Headphones (standard stereo phone jack ×1, stereo mini jack ×1) AUX IN: AUX IN (stereo mini jack ×1, stereo standard phone jack ×1) Output: OUTPUT L/MONO, R (standard phone jack, one for each), INDIVIDUAL OUTPUT 1/2, 3/4, 5/6, 7/8 (stereo standard phone jack, one for each) USB: USB TO DEVICE, USB TO HOST MIDI: MIDI OUT ×1, MIDI IN ×1 Trigger Input: Trigger input jack ×10 (standard stereo phone jack, not including the HI-HAT CONTROL jack. 1, 14 for All type of pad, 2, 4, 6 for 2zone, 8, 9, 10 for 3zone, 11 dedicated for hi-hat pad/controllar, 12 for kick, 2zone) *If other pad is connected to each of the above terminals, it will operate as a 1-zone pad. *Maximum 14 of pads to be connected (when Y-cable is used) |
| Bluetooth | Audio (varies by country) |
| Display | Full Dot LCD (128×64 dot) |
| Accessories | AC adaptor (PA-150 or an equivalent recommended by Yamaha (Output : DC 12V, 1.5 A))(*2), Owner’s Manual , module holder, module holder wing bolts (× 4), Cubase AI Download Information (*2) May not be included depending on your area. Check with your Yamaha dealer. |
