Digital Mixing Console
Yamaha - DM3

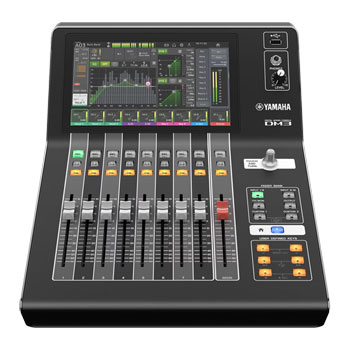

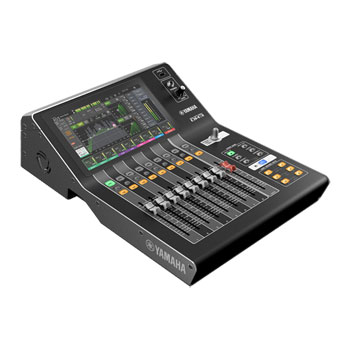

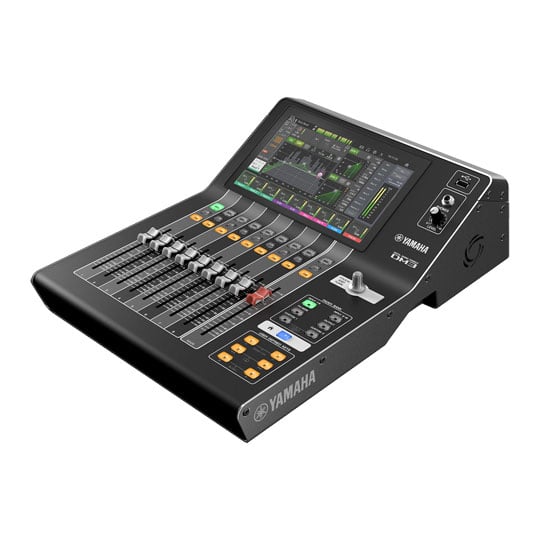

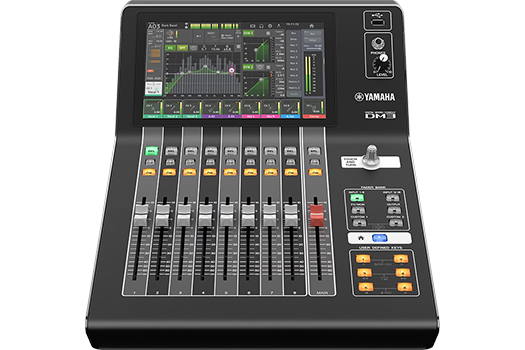

Yamaha DM3

professional-level mixing SolutionWhen something is “compact” it often comes with limitations, and in the sound reinforcement world, this means compromises in functionality, connectivity, or sound quality, and sometimes all three. Until now choosing a compact console has commonly been a matter of what you’re willing to sacrifice to get the capabilities you need in the space you have.

The new DM3 series of mixing consoles eliminates this to provide superb sound quality, fast and easy setup and operation, and professional-level features for live sound, streaming, and live or home recording and music production—a combination unmatched in any other mixing console this size. In a constantly expanding world that constantly presents new challenges as well as opportunities, DM3 mixing consoles give you the power and flexibility to do more with than you ever thought was possible with a compact digital console.

The DM3 is a compact Dante-equipped digital mixing console that features versatile capabilities, making it perfect for a wide range of applications. The DM3 offers superb sound quality, fast and easy setup and operation, and professional-grade features.

At A Glance • 8 + 1 fader configuration and 9-inch multi-touch screen
• Input mixing channels: 16 mono + 1 stereo + 2 FX return
• Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)

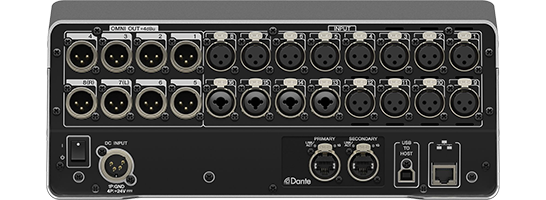

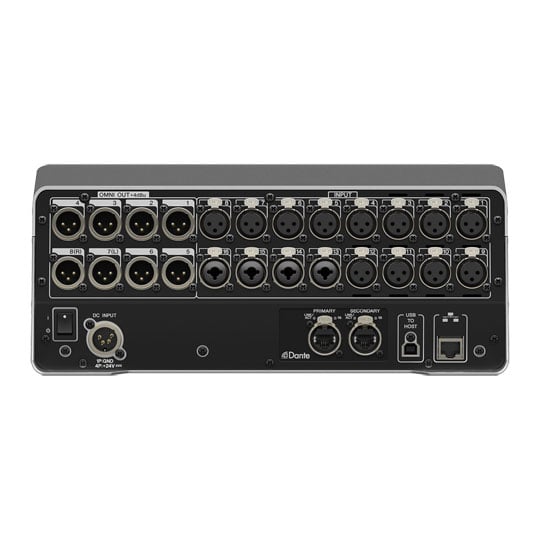

• Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs
• 18 Effects, and GEQ on Mix 1-6 and Stereo channels
• Dante: 16 inputs, and 16 outputs
• USB: 18 inputs, and 18 outputs

Raising the Bar for Compact Digital Mixers

Yamaha DM3

the possibilities are endlessIn 1987 Yamaha released the first ever digital mixer, the DMP7, inspiring a new era of consoles that featured greater functionality in a more compact design than their analogue counterparts. Decades later the DM3 Series is setting a new standard for compact console performance, with versatile capabilities and extreme portability that make it an incredible tool for a wide range of applications and environments.

The DM3 Series features two models, the DM3 Standard and the DM3—the first compact console to be fully compatible with Dante technology, allowing for faster and easier setup with multiple devices. Both consoles feature a multi-language user interface that can be configured to make operation easy and stress-free for users with different backgrounds and varying skill levels.

At home in both a live performance venue or your home studio, it’s easy to imagine taking a DM3 Series console to a gig, recording and streaming the audio, and then taking it home for editing as part of your DAW setup. Alternatively, you could use it as a main mixer for a small performance one day, and as a sub-mixer for live streaming the next—the possibilities are endless.

A Legacy of Sonic Purity

Yamaha DM3

the perfect starting pointThe ideal starting point for any audio engineering journey is transparent, uncolored sound. All Yamaha mixers are built on that philosophy, with the goal of allowing engineers to capture the on-stage sound accurately, without colouration, and then add creative touches as required.

Capable of sampling rates as high as 96 kHz despite its compact size the DM3 Series continues this legacy of sonic purity, giving you the perfect starting point for mixing, recording, live streaming, or even installed applications.

Simple, Intuitive & Powerful

Yamaha DM3

“less is more”Possibly the most significant advantage of a digital console is the ease of use and accessibility of powerful functions and features that would otherwise require a higher level of user experience as well as more outboard gear to actualize in an analogue setup.

The DM3 Series takes on a “less is more” design approach, utilizing a 9” touchscreen and a single Touch & Turn knob for managing most of the console’s operations, resulting in a user experience reminiscent of a smartphone.

DM3 Series: Simply Do More

The Tech Spec

Features Specification
Type Digital Mixer
Channels 22
Inputs - Mic Preamps 12 x XLR, 4 x XLR-1/4" combo
Phantom Power 16 Channels
Outputs - Main 8 x XLR
Busses/Groups Internal (1 x stereo, 6 x mix, 2 x FX, 2 x matrix)
Data I/O 2 x Locking Ethernet (Dante), 1 x RJ-45 (LAN)
Headphones 1 x 1/4"
USB 1 x Type A, 1 x Type B
Computer Connectivity USB (18 x 18)
Faders 9 x 100mm Motorized Faders
A/D Resolution Up to 96kHz
DAW Control Yes
Screen 9" touchscreen
Storage USB slot
Power Source 24V DC, 2.5 Power Supply (included)
Dimensions Width: 12.6"
Height: 5.5"
Depth: 17.9"
Weight 14.33 lbs.
Specifications
Total Channels 22
Max Mic Inputs 16
Computer Interface
Mixer Type Digital
Computer Interface Channels 0
Total Aux Sends 0
Subgroup / Bus Outputs 0
Max Line Inputs 4
Analogue Insert Points No
Flying Faders No
Internal FX No
Additional Information
Scan Code LN136441
Model Number CDM3uk
GTIN 4957812669559
