10" 700W Active Loudspeaker
Yamaha - DHR10

Yamaha - DHR10

Performance. Optimized.The DHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.

Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with a 10” model for fixed installation and utilities, a 12” model designed for use as a floor monitor, and a 15” version for FOH applications—all featuring custom transducers driven by DSP-equipped class-D power amplifiers to deliver stunning sound quality and clarity. Combined with practical features adapted for their specific applications, the series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn’t it time you audition DHR quality and performance to improve your sound?

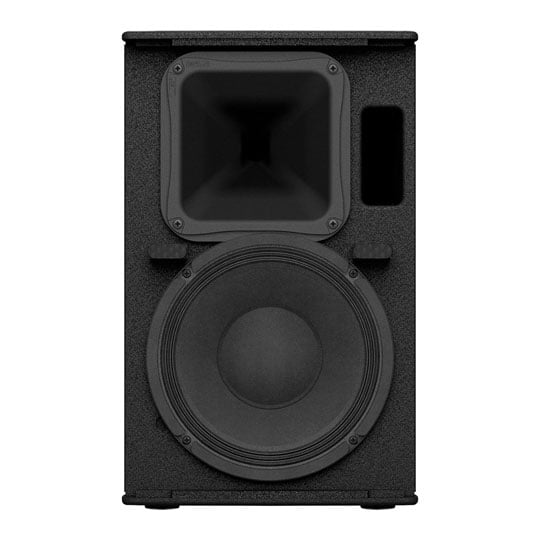

The DHR10 is a 2-way bi-amp powered loudspeaker, equipped with a 10-inch woofer and a 1.4-inch HF driver, and perfect for use in fixed installations. Combining a 700W amplifier module and high-performance DSP with the same high-grade plywood construction found on Yamaha’s high-end DZR Series, the DHR10 offers best-in-class sound quality and durability.

700 W PeakTotal Power Capacity

90° H x 60° VCoverage Angle

128 dBMaximum SPL

at a glance • Featuring a plywood cabinet that delivers a clear sound with minimal vibration
• Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
• Compact appearance thanks to a 10-inch LF driver that provides excellent low frequency response
• Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments
• Optional UB-DXRDHR10 U-bracket allows both for vertical or horizontal use
• A pole socket for use on a stand
• Rigging points for use with eye bolts
• Proprietary FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

Cabinet Designs Optimised For A Range Of Audio Environments

DHR SeriesThe DHR Series features a comprehensive lineup optimized to meet the demands of specific applications. The 10” model is equipped with a rotatable HF horn and a dedicated UB-DXRDHR10 U-bracket for use in fixed installations and utility, while the 12” model is the first Yamaha speaker to feature a coaxial compression driver for improved clarity and smoother frequency response for floor monitoring.

The series is rounded out by a 15” model featuring dual-angle pole sockets and rigging points for use in fixed installations or as temporary main speakers for sound reinforcement.

Killer Features!

Yamaha - DHR10

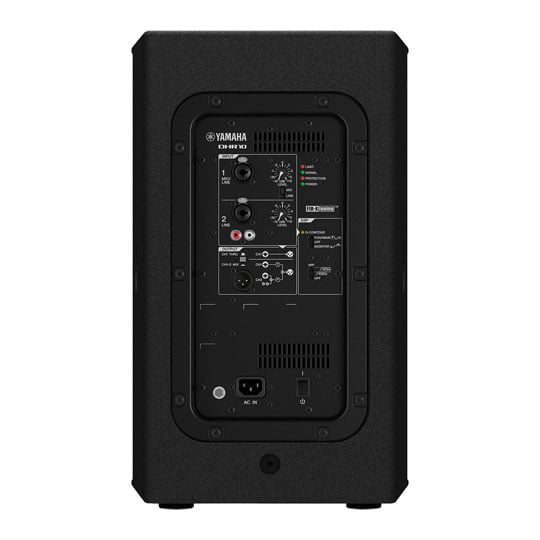

Onboard 2-Channel MixerDHR Series speakers have two input channels. CH1 has a combo jack which accepts both XLR and TRS jack allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS jack, and a pair of RCA pin Jacks for input from CD players or other stereo line-level sources.

Yamaha - DHR10

Dual-Angle Pole Mount Socket (DHR15)Depending on the venue, sometimes your mix can fall prey to low ceilings or other room attributes that can impede a clear, even mix and detract from the audiences' listening experience significantly. The DHR15's pole mount socket offers two positions - 0° or -7° - to direct the acoustic energy away from reflective surfaces and on to your audience where it belongs.

Yamaha Powered Loudspeaker "DHR Series" and Loudspeaker "CHR Series"

The Tech Spec

Features Specification
Configuration Active 2-Way
Enclosure Type Bass-Reflex Loudspeaker
Total Power Capacity 325 W RMS 700 W Peak
Amplifier Power Rating LF: 500 W Peak HF: 200 W Peak
Amplifier Class Class-D
HF Driver 1 x 1.4" / 35.6 mm Rotatable Horn Compression Driver with 1" / 25 mm Throat
LF Driver 1 x 10" / 254 mm Woofer
LF Voice Coil 2" / 50.8 mm
Magnet Ferrite
Frequency Range 52 Hz to 20 kHz -10 dB
Maximum SPL 128 dB
Coverage Angle 90° H x 60° V (Rotatable Horn)
Protections DC Fault, Dynamic Clip, Overcurrent, Overvoltage, Power Supply, Thermal
Audio I/O 1 x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Mic/Line Input 1 x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Line Input 1 x Stereo RCA TS Female Unbalanced Line Input 1 x XLR 3-Pin Male Balanced Line Thru/Output
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Mounting 2 x M10 Fly Point (Top) 1 x M10 Fly Point (Rear) 1 x 1.4" / 35 mm Pole Socket (Bottom)
Dimensions 19.5 x 12 x 11.8" / 495.3 x 304.8 x 299.7 mm
Weight 33.1 lb / 15 kg
Specifications
Number of Input Channels 2
Frequency Response -3dB N/A
Frequency Response -10dB N/A
Max SPL 128 dB
Power rating (Peak) 700 Watts (Peak)
Power rating RMS N/A
Speaker size N/A
Enclosure Type N/A
Dimensions 495.3 x 304.8 x 299.7
Net weight 15 KG
Shipping weight N/A
Connectivity
  • 1 x RCA Phono
  • 2 x XLR / Jack Combi
Connectivity (Output) 1 x XLR
Colour
Bluetooth No
Battery Powered No
Wifi No
App control No
Rigging Points No
Pole Mountable No
Integrated Bracket No
Sub Woofer No
Built in DSP No
Front of House No
Floor Monitor No
Additional Information
Scan Code LN133791
Model Number CDHR10UK
GTIN 4957812662185
