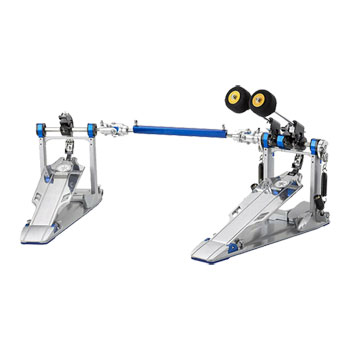

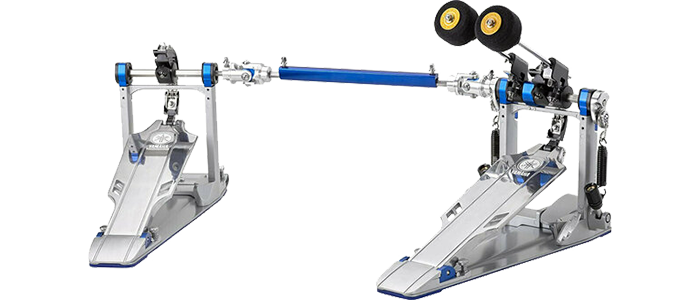

Yamaha DFP9C Chain Drive Double Pedal

Play with power and precisionThe Yamaha DFP9C double bass drum pedal features a Quick Adjusting Cam / Link, allowing the chain drive to gain tension gradually throughout the stroke as the pedal is depressed. You can switch the cam from C1 to C3 reduce the initial tension. The durable, double chain drive allows for fluid movement, and the cam at the bottom of the chain can be slid into three positions, allowing the drummer to fine tune the pedal's action to match their preferred performance. It can also be used as a belt drive by replacing the belt that comes included with the pedal.

The frame and bearing cover (blue parts) are independently smoothed and precisely fabricated before assembly, allowing them to to be aligned with the central axis of the shaft and ball bearings to unleash a smooth rotation. The hinge base and cover (blue parts) are independently smoothed and precisely fabricated before assembly, allowing smooth foot board performance. Moving the spring adjustment knob upward greatly simplifies the traditionally troublesome tension adjustment process. The knob is locked at a 90-degree angle that prevents it from coming loose on its own.

Attaching weights to the beater allows drummers to attain their preferred sound and feel. Aluminium (3g) and Brass (9g) weights are both available and can be attached and removed easily. The beater angle and footboard angle can be independently and freely adjusted. The inclusion of an angle checker allows drummers to easily recreate their preferred settings. The tip of the footboard comes equipped with ball bearings, allowing even smoother performance.

The heel of the pedal comes equipped with spikes that prevent slipping when playing and provide improved stability. Newly designed universal joints add ball bearings to all axes. The seamlessly smooth rotation dramatically improves the action and operability of the secondary pedal. The secondary pedal side also comes equipped with spikes that prevent slipping when playing and ensure stable performance. The pedal unit also comes with its own semi-hard carrying case.

At A Glance • Double chain bass drum pedal
• Easy access auto lock spring adjustments
• Independent beater/footboard angle adjustment
• Ball bearing drive connection
• Weight adjustable beater
• Anti-skid heel spikes
• Semi-hard carrying case included
