Yamaha - DBR10 Active Loudspeakers and MG06X Mixer

Yamaha - DBR10, 10" 2-way Powered Loudspeakers & MG06X Mixer

Thumbnail 1 : Yamaha - DBR10 Active Loudspeakers and MG06X Mixer Thumbnail 2 : Yamaha - DBR10 Active Loudspeakers and MG06X Mixer Thumbnail 3 : Yamaha - DBR10 Active Loudspeakers and MG06X Mixer Thumbnail 4 : Yamaha - DBR10 Active Loudspeakers and MG06X Mixer
Scan code: LN142324 Manufacturer code: CDBR10UK
Order in the next 20 mins and get it tomorrow
£1,025.00
Get it Tomorrow, 21 MayLow stock
FREE DELIVERY ON YOUR ENTIRE BASKET
From £28.90 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £92.87
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,025.00
Total inc. interest: £1,114.31
Monthly Payment: £50.05
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,025.00
Total inc. interest: £1,201.19
Monthly Payment: £35.90
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,025.00
Total inc. interest: £1,292.03
Monthly Payment: £28.90
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,025.00
Total inc. interest: £1,387.17
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £27.24 / month (APR 19.9%)
Delivery Options
  • By DPD On 21st May to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Powered Loudspeaker & Mixer Bundle with Cables & Stands
Yamaha - DBR10 & Yamaha - MG06X

Yamaha DBR10

POWERFUL PERFORMANCE BUNDLEThis bundle is made up of two Yamaha DBR Series loudspeakers that are designed to give you powerful, high-quality sound all in a lightweight, compact, portable format. Together with a Yamaha MG06X mixer, you have a host of innovation and versatile features to allow you to dial in the perfect sound to suit the venue and event. The included speaker stands and XLR F to XLR M cables complete this set up, so you can get up and running in no time!

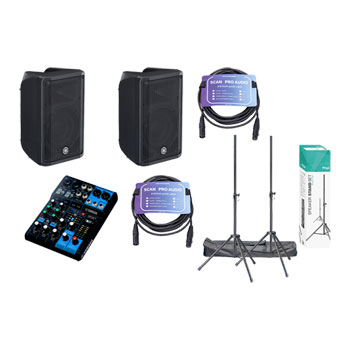

What's Included? • 2 x Yamaha DBR10 10" 2-way Powered Loudspeaker
• 1 x Yamaha MG06X 6-Channel Mixer with SPX Effects
• Stagg SPSQ10 Speaker Stands (Pair) with carry bag
• 2 x Scan Pro Audio XLR F to XLR M cable

10" 2-way Powered Loudspeaker
Yamaha - DBR10

Yamaha DBR10

POWER TO PLAYThe Yamaha DBR Series loudspeakers are built to deliver powerful, high-quality sound with an un-matched economy of transport and setup time wherever the music takes you. As the most portable powered loudspeakers Yamaha have to offer, the versatile DBR Series feature the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at all output levels.

Comprised of 10”, 12” and 15” models, each DBR loudseaker is built within a newly designed, durable, lightweight cabinet optimized for FOH sound, floor-monitoring and even rigged applications. If you're powering your band’s live performance, DJ-ing a party, or MC-ing an event, the DBR Series speakers will to take your performance to the next level.

The DBR10 is the most compact model in its series and in its class. Capable of delivering a maximum SPL of 129dB from its small enclosure, the DBR10 can be used as a utility speaker in a range of environments.

700WTotal Power

55Hz - 20kHzFrequency range

10"Speaker Size

at a glance • FIR-X tuning provides incredible sound quality with high resolution and a smooth frequency response
• Onboard mixer allow you to select both a direct output or a mixed output
• D-Contour optimizes the DBR10 for main speaker or floor monitor use
• DSP-controlled protection functionality enables optimum reliability

Enhanced Performance Features

Class-D Amplifiers

High-Efficiency 700W Class-D AmplifiersThe DBR's lightweight, high performance Class-D amplifier is capable of producing up to 700W of power, achieving an SPL of 129dB, delivering remarkable clarity and dynamic characteristics.

Custom Designed Transducer

Custom Designed TransducerThe high power output woofers provide well-defined, powerful bass with minimal distortion, while the 1" precision compression driver produces clear mid-range and high frequencies.

Highly Portable Cabinet

A Rugged, Highly Portable CabinetDBR Series speakers feature a compact, lightweight, and durable plastic cabinet which gives the highest level of portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while a newly designed ergonomic handles make for easy transportation and system setup.

Onboard 2-Channel Mixer

Easy-to-use Onboard 2-Channel MixerDBR Series speakers feature two input channels. CH1 has a combo jack which takes both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.

Smart Enclosure Design

Smart Enclosure Design for Floor MonitoringDBR Series speakers feature an optimized 50°wedge angle for floor monitoring. In addition the DBR12 and DBR15's symmetrical shape enables effortless configuration of a mirror-mode floor monitoring system in either symmetrical or stereo sound field setups.

Rigging Points

Rigging Points for Installation ApplicationsDBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts (not included).

Yamaha Powered Loudspeakers DSR/DXR/DBR/DXS

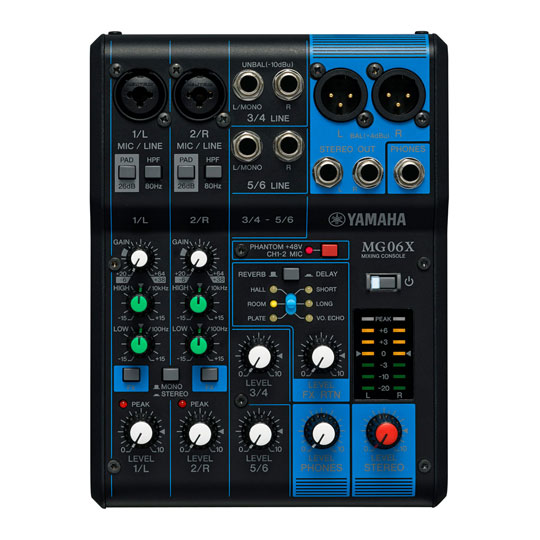

6-Channel Mixer with SPX Effects
Yamaha - MG06X

Yamaha MG06X

ROAD TOUGH. STUDIO READY.For over 100 years, Yamaha has been at the forefront of superior craftsmanship and innovation, all of which is clearly displayed and exemplified across the entire range of products. From an unmatched collection of world-class musical instruments to tour-grade pro audio.

Now in its 3rd generation, Yamaha’s MG Series is the manifestation of excellence in design, and showcases some of the same technologies which have been developed for use in high-end consoles, including studio-grade preamps, powerful digital processing and a tough, road-ready construction.

Featuring a highly intuitive and simple-to-use user interface, the MG Series boasts a broad range of compact mixing desks with models ranging from 6 to 20 channels, each suitable for a broad range of uses and applications. For installed, recording or live music settings, the MG Series tough construction and flexible design of this range allows you to fine-tune your sound with unbridled confidence, continuously delivering unmatched performance and a level of sound quality which is simply unrivalled in its class.

6Channels

2 x Combo (XLR/TRS)Mic Preamps

1 x 1/4"Headphones

at a glance • 6-Channel Mixing Console
• Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
• 1 Stereo Bus
• “D-PRE” mic preamps with an inverted Darlington circuit
• High-grade effects: SPX with 6 programs
• XLR balanced outputs
• PAD switch on mono inputs

D-PRE Preamps

Yamaha - MG06X

natural-sounding bass and smooth highsNeither the audience or the engineer wishes to listen to mics that are connected to thin, distorted or generally poor preamps. Yamaha’s MG Series mixers uniformly feature Yamaha’s ultra-transparent D-PRE preamps, which offer greater power with lesser impedance, serving up wonderfully organic sounding bass and clear highs.

D-PRE preamps offer a professional and high-grade sound, without ever adding unwanted colouration to your mix. These high-quality of these preamps ensure that you won’t need to spend hours tweaking and adjusting just to achieve an acceptable sound.

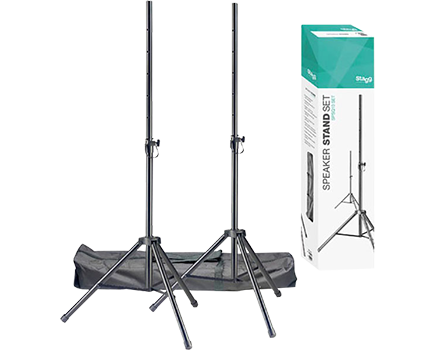

Stagg SPSQ10 Speaker Stands + Carry Bag (Pair)

Stagg SPSQ10 Speaker Stands + Carry Bag

Q series steel speaker stands with folding legsThe Stagg SPSQ100-set is a pair of high quality, steel, powder coated speaker stands. These stands are height adjustable and have a locking pin for extra safety. The set also includes a carry bag for both stands with handles.

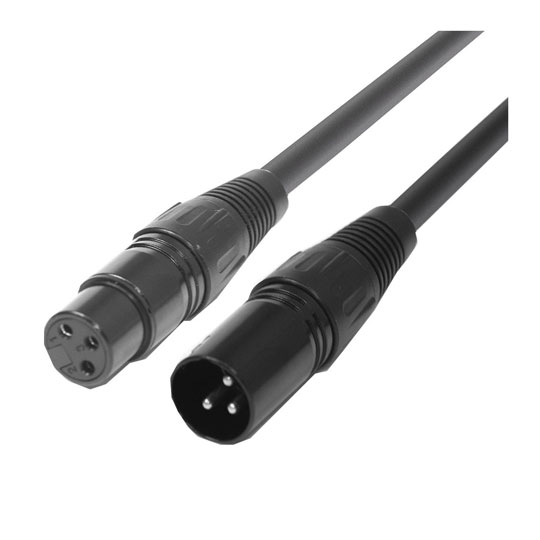

Microphone / Balanced Audio Cable
Scan Pro Audio - XLR F to XLR M
(6m)

Microphone / Balanced Audio Cable 6m

HIGH QUALITY BALANCED MICROPHONE CABLEScan Pro Audio’s XLR mic cables have been purpose built for professional use both on stage and in the studio. You can trust our cables to deliver organic, yet transparent sound across a wide variety of applications. Comprised of high-grade materials throughout the construction process, our cables will provide years of trustworthy and reliable service for all your audio connectivity requirements.

at a glance • 6 metre heavy duty XLR cable
• XLR (F) - XLR (M) connections
• Perfect for rehearsal rooms & studios

Yamaha DBR10 Tech Spec

Features Specification
Powered Yes
Power Configuration Bi-amped
LF Driver Size 1 x 10"
HF Driver Size 1"
LF Driver Power Amp 500W
HF Driver Power Amp 200W
Total Power 700W
Inputs 2 x XLR/TRS Combo, 1 x Stereo
Outputs 1 x XLR
Frequency Range 55Hz-20kHz (-10dB)
Crossover Frequency 2.1kHz
Maximum Peak SPL 129dB
Horizontal Coverage Angle 90 Degrees
Vertical Coverage Angle 60 Degrees
Enclosure Material Plastic
Mounting Options Pole Mount with 1.37' socket, Floor Wedge, 2 x M8 Fly Points
Power Source Standard IEC AC cable
Dimensions Width: 12.1"
Height: 19.4"
Depth: 11.4"
Weight 23.2 lbs.

Yamaha MG06X Tech Spec

Features Specification
Type Analogue
Channels 6
Inputs - Mic Preamps 2 x Combo (XLR/TRS)
Phantom Power 2
Inputs - Line 2 x TRS, 2 x TS
Outputs - Main 2 x XLR, 2 x TRS
Headphones 1 x 1/4"
EQ Bands 2-Band EQ (High, Low)
Effects Yes
Height 2.4"
Width 5.9"
Depth 7.9"

Stagg SPSQ10 Stands Tech Spec

Features Specifications
Height 113 - 187cm (44.5 - 73.5"), adjustable with locking pin
Maximum Load 50 kg (132 lb) per stand
Weight 3.25 kg (7.16 lb) per stand
Tube Diameter 35 mm (1.37") - Base: Tripod
Material Metal construction with nylon connecting parts
Finish Scratch resistant powder coating
Special Features Ergonomic grips and knobs
Included Nylon carry bag with internal divider and straps
Colour Black

Audio Cable Tech Spec

Features Specification
Length 6m
Connection 3-Pin XLR M - 3-Pin XLR F
Specifications
Number of Input Channels N/A
Frequency Response -3dB N/A
Frequency Response -10dB N/A
Max SPL N/A
Power rating (Peak) N/A
Power rating RMS N/A
Speaker size N/A
Enclosure Type N/A
Dimensions
Net weight
Shipping weight N/A
Connectivity N/A
Connectivity (Output)
Colour
Bluetooth No
Battery Powered No
Wifi No
App control No
Rigging Points No
Pole Mountable No
Integrated Bracket No
Sub Woofer No
Built in DSP No
Front of House No
Floor Monitor No
Additional Information
Scan Code LN142324
Model Number CDBR10UK
GTIN 4957812559706
