2-Way Loudspeaker
Yamaha - CHR12M
Optimized Professional PerformanceThe CHR Series provides an ideal solution for anyone willing to take their sound reinforcement set up to a new level of professional quality, accuracy, and performance. Made using premium plywood cabinets and finished in a tough polyurea coating, these loudspeakers provide durability not found in others from their class.
Every model in the series has been optimized to meet the demands of a range of sound reinforcement applications, with a 10” model for fixed installation and utilities, a 12” model designed to be used as a floor monitor, and a 15” version for FOH applications, all featuring carefully selected custom transducers. Together with practical features used for their specific applications, this series gives you the flexibility to choose the ideal speaker for a vast range of sonic environments.

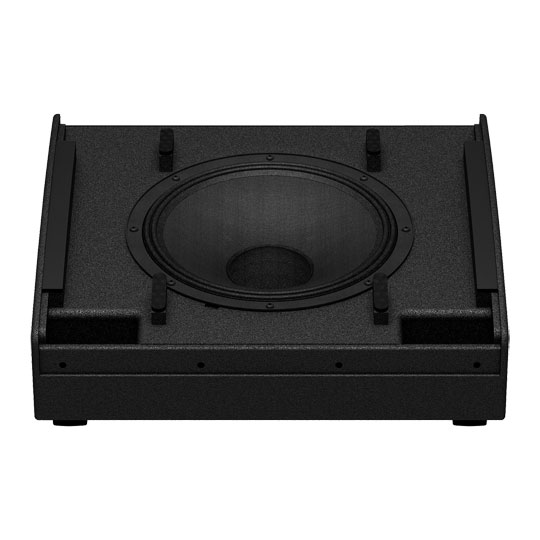

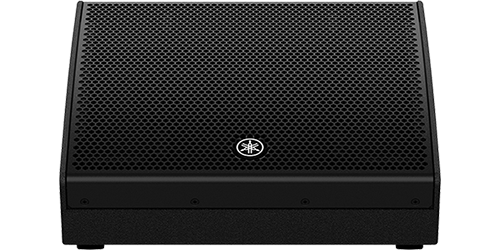

This CHR12M is a 2-way loudspeaker with a 12-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration, ideal for use as a floor monitor. Combining carefully selected and customized transducers with the same plywood construction found on Yamaha’s high-end CZR Series, the CHR12M delivers best-in-class sound quality and durability.
93dBMax SPL
61Hz - 20kHzFrequency Range (-10dB)
8ΩImpedance
Amazing Features
• Coaxial driver delivers precise, smooth phase and frequency response characteristics
• Plywood cabinet that offers a clear sound with minimal vibration
• Compact, low profile, plywood enclosure with a polyurea coating
• Pole mountable for use on a stand
Yamaha Powered Loudspeaker "DHR Series" and Loudspeaker "CHR Series"
The Tech Spec
| Features | Specification | Speaker type | 2-way Speaker, Bass-reflex |
|---|---|
| Frequency range (-10dB) | 61 Hz - 20 kHz |
| Coverage area | H90ﾟ x V90ﾟ |
| Crossover | 1.8 kHz |
| Nominal impedance | 8 Ω |
| SPL | Sensitivity (1W; 1m on axis): 93 dB SPL Peak (Calculated): 123 dB SPL |
| Components | LF: Diameter: 12" cone, Voice Coil: 2.5", Magnet: Ferrite HF: Diaphragm: 1.75", Type: 1" throat coaxial compression driver, Magnet: Ferrite |
| Power rating | NOISE: 250 W PGM: 500 W PEAK: 1,000 W |
| I/O connectors | SpeakON NL4MP x 2 (Parallel) |
| Cabinet material | Plywood |
| Finish | Durable Polyurea Painting, Black |
| Handle | Side x1 |
| Pole socket | Φ35 mm x1 (Bottom) |
| Floor Monitor Angle | 57° |
| Dimensions | W: 500 mm (19.7") H: 343 mm (13.5") (with rubber feet) D: 454 mm (17.9") |
| Net weight | 15.6 kg (34.4 lbs) |
