WA2A Optical Compressor by Warm Audio

Warm Audio WA2A Optical Compressor - Authentic Recreation Of The Teletronix LA-2A Opto-Compressor

Warm Audio
Scan code: LN76516 Manufacturer code: WA2A Request call
£899.00
In stock
Pay on Scan Finance with a 10% deposit from just £22.45 / month (APR 15.9%)
Mid Range
Free Delivery Delivery options Free By DPD On 27th Mar 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout
Product Overview Analog Tone.
Though digital technology and software have made great strides in recent years; we still believe that nothing compares to the level of articulation, depth, realism, and responsiveness of a well-built piece of analog gear. When you hear the bottom-end presence and top-end detail of quality analog gear, the difference can be astounding. The cost of most boutique analog equipment is financially out of reach for many recording artists. Our mission is to change this, and introduce as many people as we can to recording and mixing with real, dedicated hardware.

'2A Style Optical Compressor - Made Affordable.
No plug-in or other compressor type quite compares to the warm, forgiving, fluid qualities of this classic '2A-style optical compressor. For decades, the renowned ‘2A style circuit has become the go-to device for seamlessly handling vocals, bass, and a wide variety of other instruments and program material in an effortlessly smooth way.

Releasing the WA-2A would be for nothing if we couldn’t make it affordable. Since the start of Warm Audio we have strived to give an unprecedented value to our customers, by putting high end audio within the reach of more people than ever before. This philosophy drives everything we do, and every product we offer.

Premium Components in every Warm Audio product.

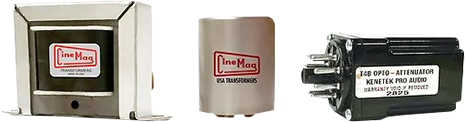

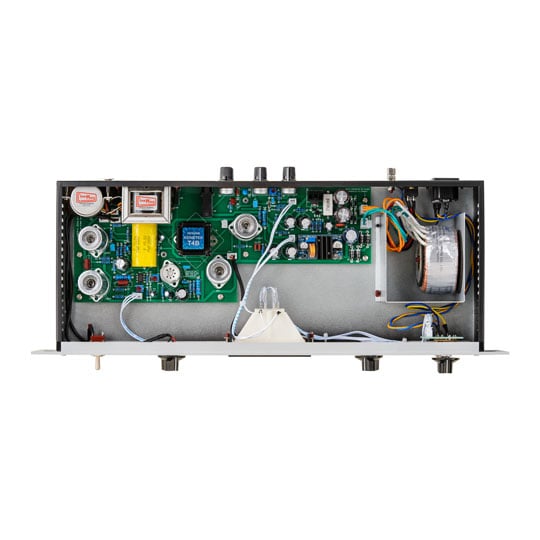

The WA-2A is a high-voltage, Class-A opto-compressor, utilzing large-core CineMag USA Transformers, four premium vacuum tubes, and the legendary Kenetek opto-cell - considered by many to be the world’s finest.

A Four Tube Operation.

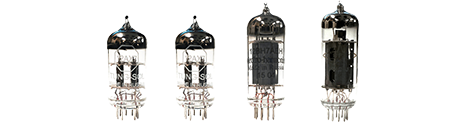

The WA-2A operates on four tubes: two 12AX7’s, one 12BH7, and one 6P1J. We proudly use Tung-Sol and Electro-Harmonix brand tubes in the signal path, which sound very 'open' and LARGE. All 4 tubes are socketed for easy swapping and replacement.

More information can be found in the User Manual below:
Data Sheet Features • 2A Style, Transformer balanced, high voltage, opto tube compressor.
• Utilizes premium grade input and output CineMag USA Transformers.
• Utilizes USA made Kenetek opto attenuator.
• Premium Tung-Sol and Electro-Harmonix tubes. 2x 12ax7, 1x 12bh7, 1x 6aq5
• Fully discrete signal path.
• Socketed to allow for retro-fitting with other opto-cells.
• Variable Pre-emphasis, allows for compression hipass filtering.
• Stereo-link capability.

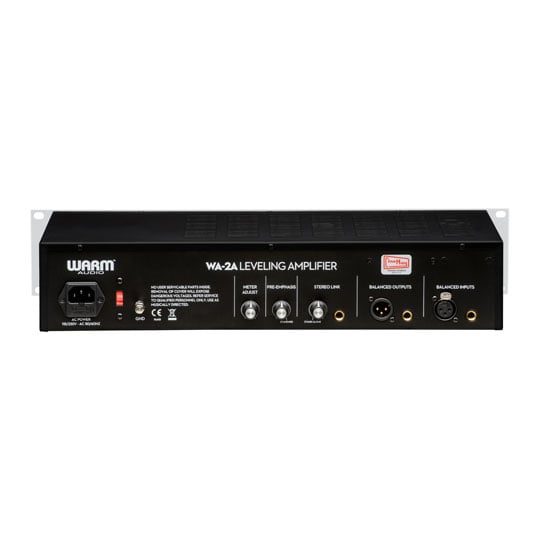

• XLR and TRS balanced line level inputs - 600 ohms impedance.
• XLR and TRS balanced line level outputs - 600 ohms impedance.
• Frequency Response +/- 1 dB, 15 Hz to 20kHz.
• Gain 40 dB ±1dB.
• Input Level +16 dB maximum.
• Output Level +10 dB nominal, +16 dB maximum.
• Distortion Less than 0.1% THD at ±10 dBm.
• Noise = -74dB.
• Attack Time - 10 milliseconds.
• Release Time - 0.06 seconds for 50% release.
• 0.5 to 5 seconds for complete release.
• Meter shows both dB gain reduction and dB output.
• Power - 115/230 volts (switchable), 50/60 Hz.
• Dimensions - 19" Rackmount chassis, 2U. 19" x 7" x 3.5".
• Weight - 12 lbs.
