Scan code:
LN104653
Manufacturer code:
D.I. Box Passive
Warm Audio D.I. Box Passive
Warm Audio Passive Direct Box, Converts Instruments to Mic-Level Signals, Frequency Response 20Hz-70kHz, 600 Ohms
Scan code:
LN104653
Manufacturer code:
D.I. Box Passive
Free Delivery
From
£14.28
/ month (APR 14.9%)
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
- By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- UPS and DPD Pickup Pickup from local convenience store | £4.79
- SCANPROTECT Protect against installation damage for 28 days. More info
Product Overview

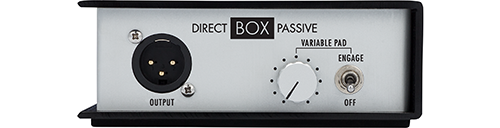

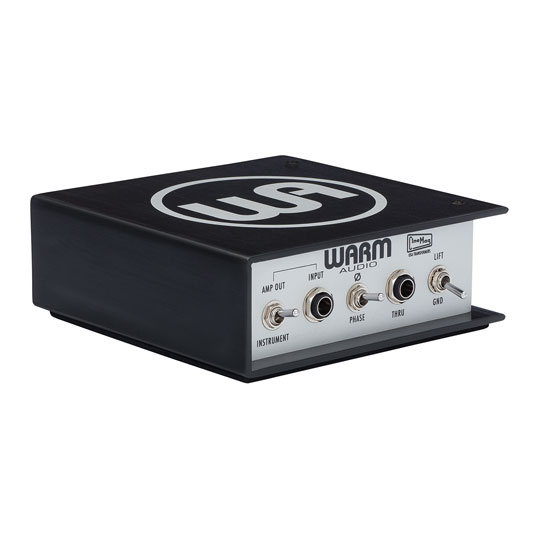

Warm Audio Direct Box Passive
Whether you play guitar, bass, keyboards or another stringed instrument, you'll need a direct box that won't diminish your instrument's tone, like the Direct Box Active and Direct Box Passive from Warm Audio. Built around world-famous CineMag USA Transformer topology and engineering, like no other DI Boxes in the world. Constructed with top-tier discrete components housed in rugged aluminum chassis' that include switches, knobs and connectors that are all designed to withstand heavy abuse on the road or in the studio.
Made With USA Custom CineMag Transformers
Every aspect of our direct boxes are designed for maximum sonic integrity, from the custom-wound CineMag USA transformer to the rugged metal knob and switches. You can expect warm, rich tone even after long cable runs, and the extruded aluminum enclosure ensures a long life span. When you need to convert an instrument-level signal to mic-level, with sonic quality as your top priority, you'll be well-served with the Direct Box Active and Direct Box Passive from Warm Audio.
New DI Box Experience
Warm Audio DI boxes offer the rare versatility of having an onboard variable pad knob which attenuates your input signal all the way from -3dB to -30dB, which will easily tame any instrument input source.
Both of our Direct Boxes offer a Thru-put jack that is jumpered to the input jack. It is a convenience jack allowing you to send your instrument's signal to a second place in addition to the live mixer or recording device. Our Direct Boxes can also take a recorded signal at line level and send it to another line input while simultaneously sending signal out of the XLR mic level output of the Direct Box.
Typical Applications For A DI Box
Connecting electronic instruments such as guitar, bass, keyboard, or drum machines directly to a PA or recording system. Simply put, a DI box converts the high impedance, unbalanced output signals to low impedance, balanced output signals. By doing so, the instrument signals are now converted to the proper voltage level for the PA or recording system - which greatly reduces and/or eliminates connections which could cause tonal shifts and distortion.
Passive Or Active?
Direct Box Active is best for instruments with passive pickups, especially acoustic instruments. The Direct Box Active can also operate in "passive" mode. Direct Box Passive is best for balancing the signal of instruments with active electronics, but still performs extremely well on passive pickups by producing a frequency range that exceeds the bandwidth of most passive DI boxes on the market.
Features • Custom-wound CineMag USA transformer.
• Converts instruments to mic-level signals without signal degradation.
• Ideal solution for plugging your instrument direct into any mic pre, mixer or recording device.

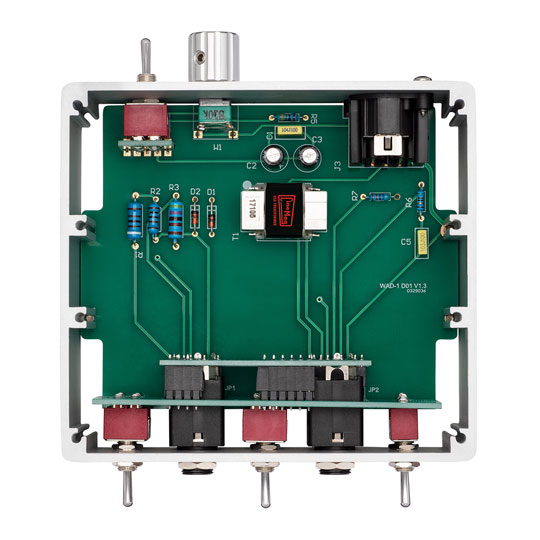

• Top-quality discrete components with gold-plated traces on circuit board.
• Rugged aluminum chassis construction.
• Pad: Variable from -3 to -30dB.
• Balanced Output: 600 ohms, mic level.
• Input Impedance: 1 Meg Ohms.
• THD: .01% from 20Hz to 100Hz. Less than .004% from 100Hz to 20kHz.
• Frequency Response: 20Hz to 70kHz +/- 0.5dB.
Warm Audio Direct Box Passive
Whether you play guitar, bass, keyboards or another stringed instrument, you'll need a direct box that won't diminish your instrument's tone, like the Direct Box Active and Direct Box Passive from Warm Audio. Built around world-famous CineMag USA Transformer topology and engineering, like no other DI Boxes in the world. Constructed with top-tier discrete components housed in rugged aluminum chassis' that include switches, knobs and connectors that are all designed to withstand heavy abuse on the road or in the studio.
Made With USA Custom CineMag Transformers
Every aspect of our direct boxes are designed for maximum sonic integrity, from the custom-wound CineMag USA transformer to the rugged metal knob and switches. You can expect warm, rich tone even after long cable runs, and the extruded aluminum enclosure ensures a long life span. When you need to convert an instrument-level signal to mic-level, with sonic quality as your top priority, you'll be well-served with the Direct Box Active and Direct Box Passive from Warm Audio.
New DI Box Experience
Warm Audio DI boxes offer the rare versatility of having an onboard variable pad knob which attenuates your input signal all the way from -3dB to -30dB, which will easily tame any instrument input source.
Both of our Direct Boxes offer a Thru-put jack that is jumpered to the input jack. It is a convenience jack allowing you to send your instrument's signal to a second place in addition to the live mixer or recording device. Our Direct Boxes can also take a recorded signal at line level and send it to another line input while simultaneously sending signal out of the XLR mic level output of the Direct Box.
Typical Applications For A DI Box
Connecting electronic instruments such as guitar, bass, keyboard, or drum machines directly to a PA or recording system. Simply put, a DI box converts the high impedance, unbalanced output signals to low impedance, balanced output signals. By doing so, the instrument signals are now converted to the proper voltage level for the PA or recording system - which greatly reduces and/or eliminates connections which could cause tonal shifts and distortion.
Passive Or Active?
Direct Box Active is best for instruments with passive pickups, especially acoustic instruments. The Direct Box Active can also operate in "passive" mode. Direct Box Passive is best for balancing the signal of instruments with active electronics, but still performs extremely well on passive pickups by producing a frequency range that exceeds the bandwidth of most passive DI boxes on the market.
Features • Custom-wound CineMag USA transformer.
• Converts instruments to mic-level signals without signal degradation.
• Ideal solution for plugging your instrument direct into any mic pre, mixer or recording device.
• Top-quality discrete components with gold-plated traces on circuit board.
• Rugged aluminum chassis construction.
• Pad: Variable from -3 to -30dB.
• Balanced Output: 600 ohms, mic level.
• Input Impedance: 1 Meg Ohms.
• THD: .01% from 20Hz to 100Hz. Less than .004% from 100Hz to 20kHz.
• Frequency Response: 20Hz to 70kHz +/- 0.5dB.
