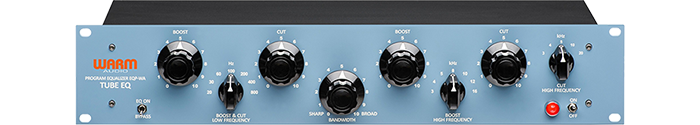

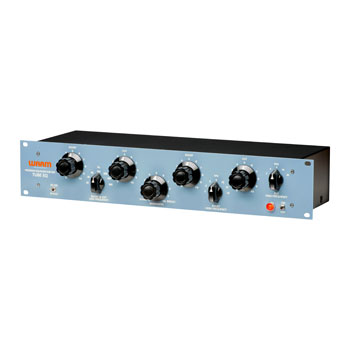

EQP-WA Tube EQ by Warm Audio
Warm Audio EQP-WA Tube EQ - Recreation Of The Classic Pultec EQP-1A Tube EQ, Cinemag Transformers, 12AX7 and 12AU7 Tubes
Scan code:
LN76513
Manufacturer code:
EQP-WA
FREE DELIVERY ON YOUR ENTIRE BASKET
Order now and get it tomorrow, Tue 11th Aug
From
£22.18
/ month (APR 14.9%)
Delivery Options
- By DPD On 11th Aug to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- SCANPROTECT Protect against installation damage for 28 days. More info
Product Overview
Out Of The Box.
The EQP-WA is a re-creation of the most renown tube Equalizer in studio history, the "Pultec EQP-1A". Not only does the look and feel of the EQP-WA match the classic Pultec units, but the sonic quality has been carefully considered by using top-end components such as CineMag transformers and premium tubes. This fully discrete Tube EQ can pull euphoric sonics from any track and bring a brilliance and luster to mixes that’s nearly impossible to achieve inside-the-box. We are proud to have once again redefined the industry standard by bringing a fully professional-grade equalizer to the market at a price that's just as remarkable as the unit.
Pultec Style Tube Equalizer - Made Affordable.
Our goal was to make a equalizer affordable for the first time, without compromising the quality and design parameters that make this type of equalizer so desirable.
Premium Components in every Warm Audio product.

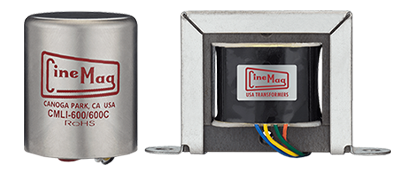

The EQP-WA is a high-voltage tube equalizer, utilzing CineMag USA Transformers and two premium vacuum tubes by Tung-Sol.
A Two Tube Operation.

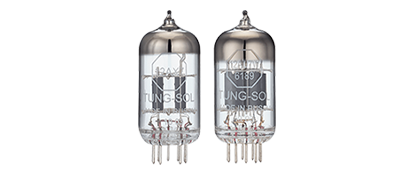

The EQP-WA operates on two tubes: one 12AX7 and one 12AU7. We proudly use Tung-Sol brand tubes in this product for their sonic richness and 'open' sound. These 2 tubes are socketed for easy swapping and replacement.
More information can be found in the User Manual below:
Features
• Utilizes premium grade input and output CineMag USA Transformers.
• Tube Equalizer based on the classic “Pultec” EQP-1A.
• Premium high voltage 12AX7 and 12AU7 tubes.
• CineMag inductor EQ section.
• EQ section is bypassable - signal still passes through tubes and transformers for warming effect.
• No insertion loss - loss restored by tube amplifier.

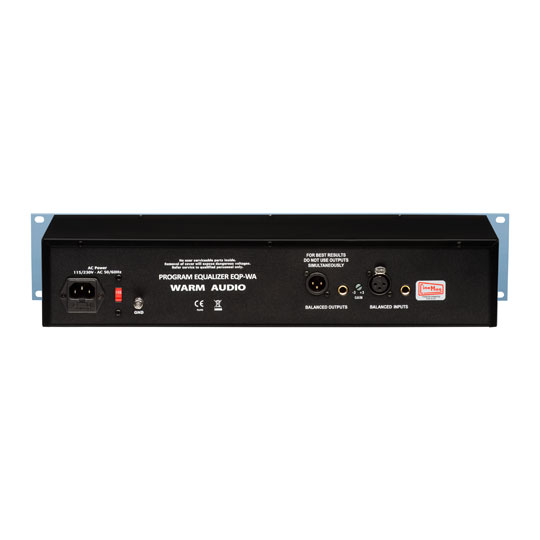

• XLR and TRS transformer balanced inputs.
• XLR and TRS transformer balanced outputs.
• Flat frequency response from 20 Hz - 50 kHz.
• Boost and Cut controls can be used simultaneously for phase effect.
• Low frequency boost - 20, 30, 60, 100, 200, 400, 800 Hz - 12 db.
• Low frequency cut - 20, 30, 60, 100, 200, 400, 800 Hz - 18 db.
• High frequency boost - 3, 4, 5, 8, 10, 12, 16 kHz - 18 db.
• High frequency cut - 3, 4, 5, 10, 20 kHz - 14 db.
• 5 added frequency points for greater flexibility.
• Switchable 115/230 volt IEC power inlet.
• Dimensions: 19 x 3.5 x 6 inches - 2RU rack mountable.
Out Of The Box.
The EQP-WA is a re-creation of the most renown tube Equalizer in studio history, the "Pultec EQP-1A". Not only does the look and feel of the EQP-WA match the classic Pultec units, but the sonic quality has been carefully considered by using top-end components such as CineMag transformers and premium tubes. This fully discrete Tube EQ can pull euphoric sonics from any track and bring a brilliance and luster to mixes that’s nearly impossible to achieve inside-the-box. We are proud to have once again redefined the industry standard by bringing a fully professional-grade equalizer to the market at a price that's just as remarkable as the unit.
Pultec Style Tube Equalizer - Made Affordable.
Our goal was to make a equalizer affordable for the first time, without compromising the quality and design parameters that make this type of equalizer so desirable.
Premium Components in every Warm Audio product.
The EQP-WA is a high-voltage tube equalizer, utilzing CineMag USA Transformers and two premium vacuum tubes by Tung-Sol.
A Two Tube Operation.
The EQP-WA operates on two tubes: one 12AX7 and one 12AU7. We proudly use Tung-Sol brand tubes in this product for their sonic richness and 'open' sound. These 2 tubes are socketed for easy swapping and replacement.
More information can be found in the User Manual below:
Features
• Utilizes premium grade input and output CineMag USA Transformers.• Tube Equalizer based on the classic “Pultec” EQP-1A.
• Premium high voltage 12AX7 and 12AU7 tubes.
• CineMag inductor EQ section.
• EQ section is bypassable - signal still passes through tubes and transformers for warming effect.
• No insertion loss - loss restored by tube amplifier.
• XLR and TRS transformer balanced inputs.
• XLR and TRS transformer balanced outputs.
• Flat frequency response from 20 Hz - 50 kHz.
• Boost and Cut controls can be used simultaneously for phase effect.
• Low frequency boost - 20, 30, 60, 100, 200, 400, 800 Hz - 12 db.
• Low frequency cut - 20, 30, 60, 100, 200, 400, 800 Hz - 18 db.
• High frequency boost - 3, 4, 5, 8, 10, 12, 16 kHz - 18 db.
• High frequency cut - 3, 4, 5, 10, 20 kHz - 14 db.
• 5 added frequency points for greater flexibility.
• Switchable 115/230 volt IEC power inlet.
• Dimensions: 19 x 3.5 x 6 inches - 2RU rack mountable.
