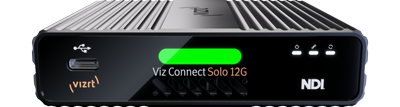

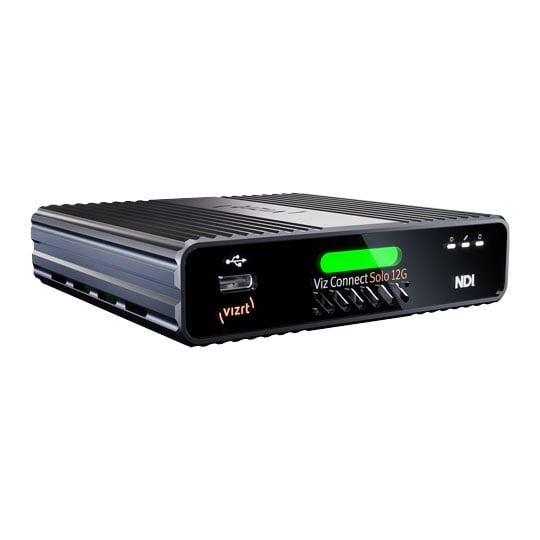

Vizrt - 'Viz Connect Solo 12G'
Effortlessly connecting any productionViz Connect Solo video converters are the fastest, easiest, and best way to video over IP. The Viz Connect Solo 12G is a portable and affordable 4K 60p NDI® to 12G-SDI media converter that allows you to capture video directly from connected cameras or 12G-SDI devices and convert to NDI® High Bandwidth, or take NDI® High Bandwidth streams from the network and convert them for display on screens, projectors or video walls. The fastest, easiest, and most flexible way to integrate SDI devices into your IP-based video production workflows, the Solo 12G is the ideal solution for all types of media production professionals.
Compatible with hundreds of systems, devices, and applications that support the innovative NDI technology and is ideal for live production, streaming, sports, competitive, and social gaming, corporate communications, classroom productions, and more. Say goodbye to cost, cables, capture or display cards, and confusion.
Viz Connect Solo Key Features
Compatible with Any NDI® WorkflowShare video over IP with any compatible system, device, or application that supports NDI, including Viz Connect Solo solutions and products from third-party manufacturers and developers.
NDI® Transfer ModesTransmit video to your network using your choice of supported NDI transfer modes, to include unicast and multicast UDP with forward error correction (FEC), and unicast TCP.
NDI® Input and OutputAcquire video from connected devices such as cameras and deliver as IP to networks with NDI or provide IP with NDI from networks to destinations such as displays.
ConnectivitySend and receive video with networks via Ethernet and be instantly available as NDI® sources and endpoints for any compatible system, device, or application.
portable and mountableCarry Viz Connect Solo video converters with you wherever you go, or optionally mount to a compatible camera or support using the industry-standard threaded screw mount.
AudioPresent high-quality audio with support for analog and embedded digital sources.
Program and Preview TallyReceive tally notification from compatible NDI® devices via a physical LED when video output from any Vis Connect Solo product is visible on Program and/or Preview.
Web-Based InterfaceMonitor video, manage login credentials, access recording controls, and configure audio, video, and network settings from any supported Web browser on any compatible networked device.
Multicast ModePermit multiple destinations as an option to receive your video source without individual point-to-point connections to conserve network bandwidth.
Network IdentificationEasily identify devices on your network with the ability to apply custom device and channel names.
Network VisibilityAccess devices connected to other networks via IP address and make them visible within your production environment using NDI® Access Manager.
Firmware UpdatesDownload and install firmware updates at no charge with the latest features, capabilities, and performance enhancements.
The Tech Spec
Features | Specification | Video Input | 1x 12G-SDI |
---|---|
Video Output | 1x 12G-SDI |
Audio Input | 1x 12G-SDI embedded audio input 1x 3.5mm analog stereo line level |
Audio Output | 1x 12G-SDI embedded audio output 1x 3.5mm analog stereo line level |
Encoding & Decoding | NDI® High Bandwidth |
Networking | 1 Gigabit Ethernet |
Interface | Web-based user interface for configuration and monitoring |
Tally | LED front and rear Tally Support via NDI® |
Formats | 2160p: 59.94, 50, 29.97, 25 1080p: 59.94, 50, 29.97, 25 720p: 59.94, 50, 25 |
Power | Power over Ethernet or external power adaptor |
Dimensions | 110 x 95 x 24 mm |
Weight | 300g |
